Varytec LED Typhoon PAR Outoor Manual

12x10w rgbwa uv 6in1 ip65
Hide thumbs
Table of Contents

Advertisement

Quick Links

Manual
LED Typhoon PAR Outoor
12x10W RGBWA UV 6in1
IP65

Advertisement

Table of Contents
loading

Related Manuals for Varytec LED Typhoon PAR Outoor

Summary of Contents for Varytec LED Typhoon PAR Outoor

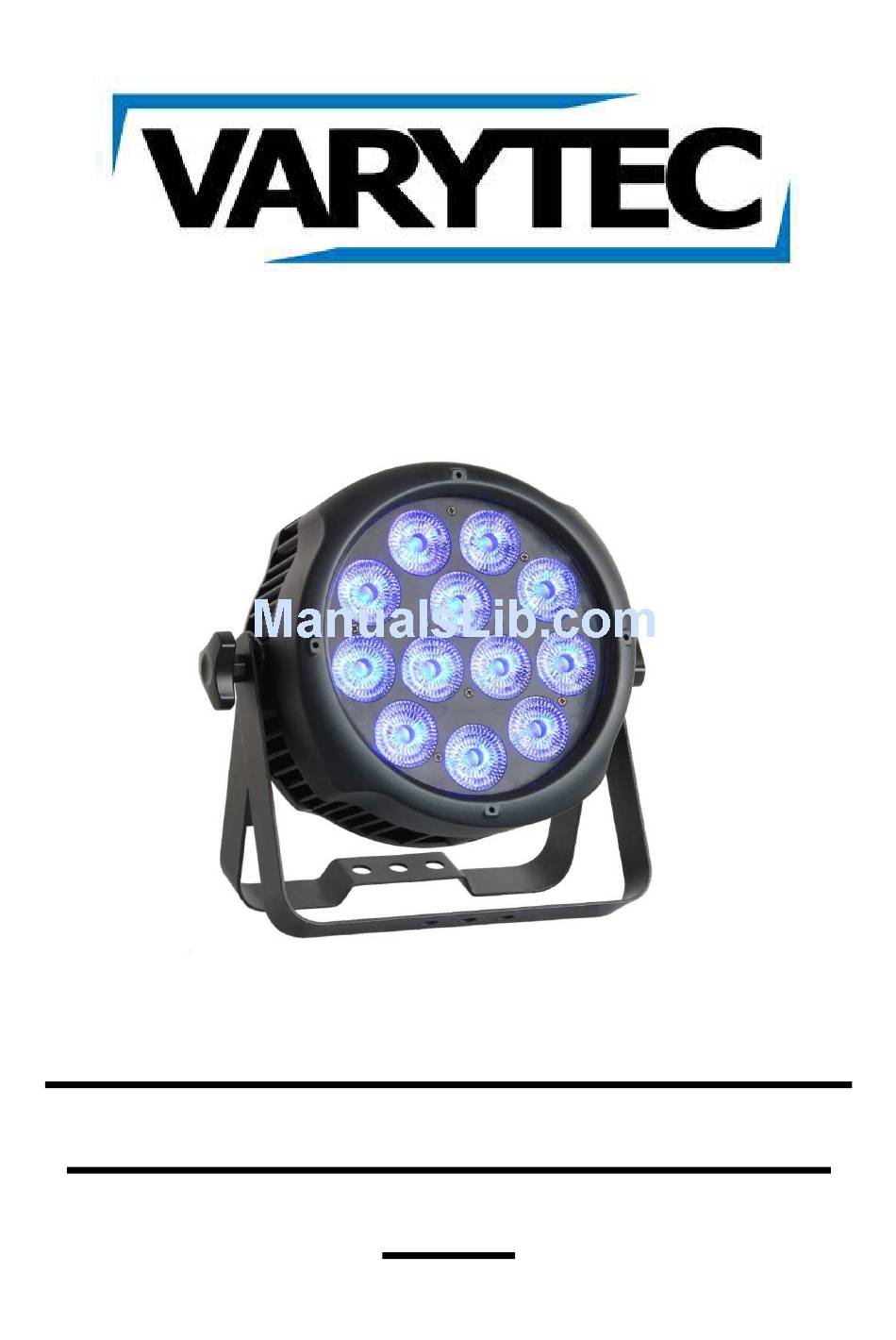

  • Page 1 Manual LED Typhoon PAR Outoor 12x10W RGBWA UV 6in1 IP65...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Designated use ..........................4 2.1.1. Overhead installation ....................... 5 Introduction ............................7 3.1. Product overview ........................7 3.2. Dimensions ..........................8 Connections ............................. 9 4.1. Electrical connections ......................

  • Page 3: Safety Instructions

    1. Safety instructions • This device is suita device is suitable for indoor and outdoor use. • All modifications to the device will void the warranty. All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. Repairs are to carry out by skilled personnel only.

  • Page 4: Designated Use

    2. Designated use This device was developed for professional use on stages, in discos, theatres etc. The device is only approved for a connection up to 230V 50/60 Hz AC voltage and for indoor and outdoor use. Regular breaks during operation increase the lifetime of your device. Avoid convulsions or any form of forceful impact during the installation or the start-up of the device.

  • Page 5: Overhead Installation

    2.1.1. Overhead installation Overhead installation Danger of life! Danger of life! You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and You have to observe the regulations of BGV C1 (formerly VBG 70) and EN60598-2-17 17 Installations are to carry out by skilled personnel only.
  • Page 6 Before installation make sure that the mounting surface has the ability to carry the tenfold point load of the own weight of the device. Mount the device with the mounting-bracket to your trussing system using an appropriate clamp. During overhead installation the device must be always secured by a safety rope which is designed to hold the twelvefold weight of device.

  • Page 7: Introduction

    3. Introduction Thank you for buying the LED Typhoon PAR Outdoor 12x10W RGBWA UV 6in1 IP65. It is a powerful device. For a successful installation and operation, please read this manual carefully. 3.1. Product overview 7 / 20...

  • Page 8: Dimensions

    3.2. Dimensions 8 / 20...

  • Page 9: Connections

    4. Connections 4.1. Electrical connections If you wish to change the power supply settings, see the chapter Appendix. Connect the fixture to the mains with the enclosed power cable and plug. The earth has to be connected. Cable (EU) Cable (US) International Brown Black...

  • Page 10: Control

    5. Control Press MENU, to get into the menu. With UP/DOWN you can choose the required point of menu. Confirm with ENTER. With UP/DOWN you can make the required settings or choose another submenu. Confirm with ENTER. By pressing MENU you can step back to the main menu. 5.1.
  • Page 11 ADREDD Activates the DMX mode. MODE SLAVE Activates the Slave mode. Deactivates the ID Number. Number 1 – 66 Setting the ID number. If you choose OFF the Display display shuts down, if the ON / OFF device was not operated for 10s.
  • Page 12 MODE 11 menu EDIT. 000 – 255 GREEN 000 – 255 WHITE 1 BLUE 000 – 255 Here you can set 11 – WHITE WHITE customer whites. WHITE 000 – 255 000 – 255 000 – 255 STAT 000 – 255 Dimmer red 0 –...

  • Page 13: Dmx Chart

    6. DMX chart 6.1. DMX Mode 1(3 channel) Channel Value from Value to Function Saturation Dimmer 0 – 100% 6.2. DMX mode2 (6 channels) Channel Value from Value to Function Dimmer red 0 – 100% Dimmer green 0 – 100% Dimmer blue 0 –...

  • Page 14: Dimmer Mode 4 (10 Channels)

    6.4. Dimmer mode 4 (10 channels) Channel Value from Value to Function Dimmer 0 – 100% Dimmer red 0 – 100 % Dimmer green 0 – 100% Dimmer blue 0 – 100% Dimmer white 0 – 100% Dimmer amber 0 – 100 % Dimmer UV 0 –...
  • Page 15 Surprise pink Scarlet Surprise peach Fire English rose Mauve Bright blue Alice blue Rose indigo Urban blue Cool blue Light salmon Mayan Sun Cherry rose Flesh pink Skelton exotic sangria Amber 36 different color macros Strobe slow - fast 15 / 20...

  • Page 16: Dimmer Mode 5 (13 Channels)

    6.5. Dimmer mode 5 (13 channels) Channel Value from Value to Function Dimmer 0 – 100% Dimmer red 0 – 100 % Dimmer green 0 – 100% Dimmer blue 0 – 100% Dimmer white 0 – 100% Dimmer amber 0 – 100 % Dimmer UV 0 –...
  • Page 17 White 1 White 2 White 3 White 4 White 5 White 6 White 7 White 8 White 9 White 10 White 11 If channel 8 is activated Setting the speed for channel 8. If channel 8 is not activated No function Strobe slow –...
  • Page 18 190 – 20 – 29 ID 2 ID 19 ID 36 ID 53 200 – 30 – 39 ID 3 ID 20 ID 37 ID 54 40 – 49 ID 4 ID 21 ID 38 ID 55 50 – 59 ID 5 ID 22 ID 39...

  • Page 19: Technical Data

    7. Technical data Power supply Voltage 110 – 250 V / 50-60 Hz Power consumption max. 120 W Light source LM type LED 6in1 Color spectrum RGBWAUV Power 120 W Number / Power 12 x 10 W Connections Strom in IP65 Power cable Strom out IP65 Power cable...
  • Page 20 Importeur: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 20 / 20...
