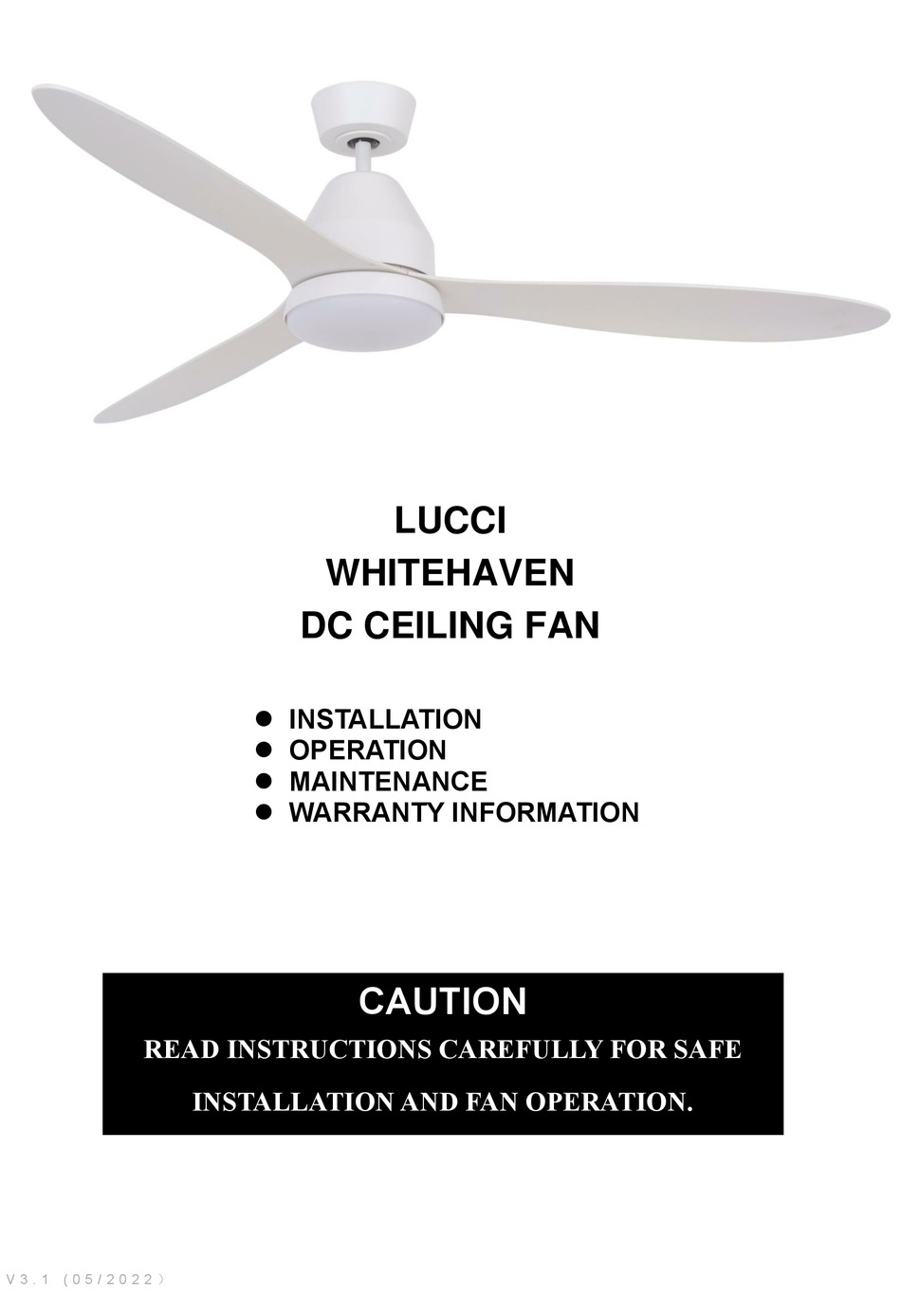

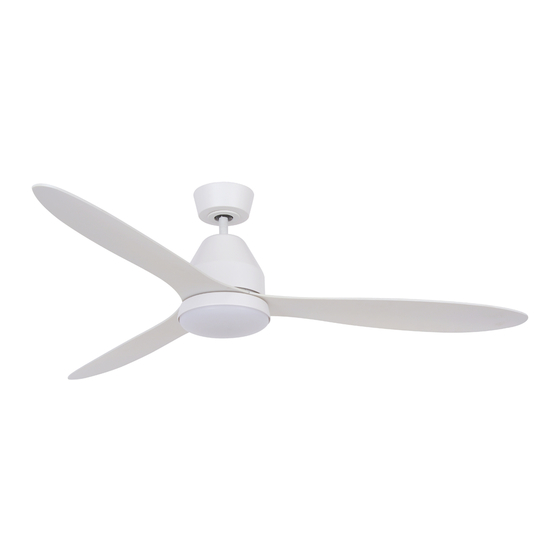

- Page 1 LUCCI WHITEHAVEN DC CEILING FAN ⚫ INSTALLATION ⚫ OPERATION ⚫ MAINTENANCE ⚫ WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V 3 . 1 ( 0 5 / 2 0 2 2 ）...
-
Page 2: Safety Precautions
Whitehaven Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 Whitehaven Fan Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Whitehaven Fan Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. - Page 5 Whitehaven Fan Installation Instructions INSTALLING THE MOUNTING BRAKCET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided.
-
Page 6: Blade Installation
Whitehaven Fan Installation Instructions INSTALLING THE FAN BLADE INSTALLATION • Remove the ball joint (1) and dowel pin by loosening the set screw (2). (Fig.4) Do not discard keep these parts, they are required to reassemble later. • Remove the canopy (3) and the motor housing (5) from the down rod (4). (Fig.4) •... -
Page 7: Hanging The Fan
Whitehaven Fan Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.8) Fig. - Page 8 Whitehaven Fan Installation Instructions Fig. 9a Fan with light 7 | P a g e...
- Page 9 Whitehaven Fan Installation Instructions Fig. 9b Fan without light Carefully insert the receiver above the hanger ball in the remainder spacing in the mounting bracket. Take care not to damage or loosen any of the wiring. (Fig.10) Fig. 10 8 | P a g e...
-
Page 10: Finishing The Installation
Whitehaven Fan Installation Instructions FINISHING THE INSTALLATION • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. - Page 11 Whitehaven Fan Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING NOTE: The pairing of the remote and receiver has been done at the factory. When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
-
Page 12: Care And Cleaning
Whitehaven Fan Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 13: Technical Information
Battery chemicals should not be placed near the eyes or ingested. Contact Poisons Information Centre on 13 11 26 for fast, expert advice. TECHNICAL INFORMATION Fan Models 56” Whitehaven DC fan only 56” Whitehaven DC fan with light Rated Voltage 220-240V~ 50Hz Rated Wattage (Motor) - Page 14 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the manual before making the call.
- Page 15 Whitehaven Fan Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE……………………………………………...
