Summary of Contents for HIKOKI WW8A

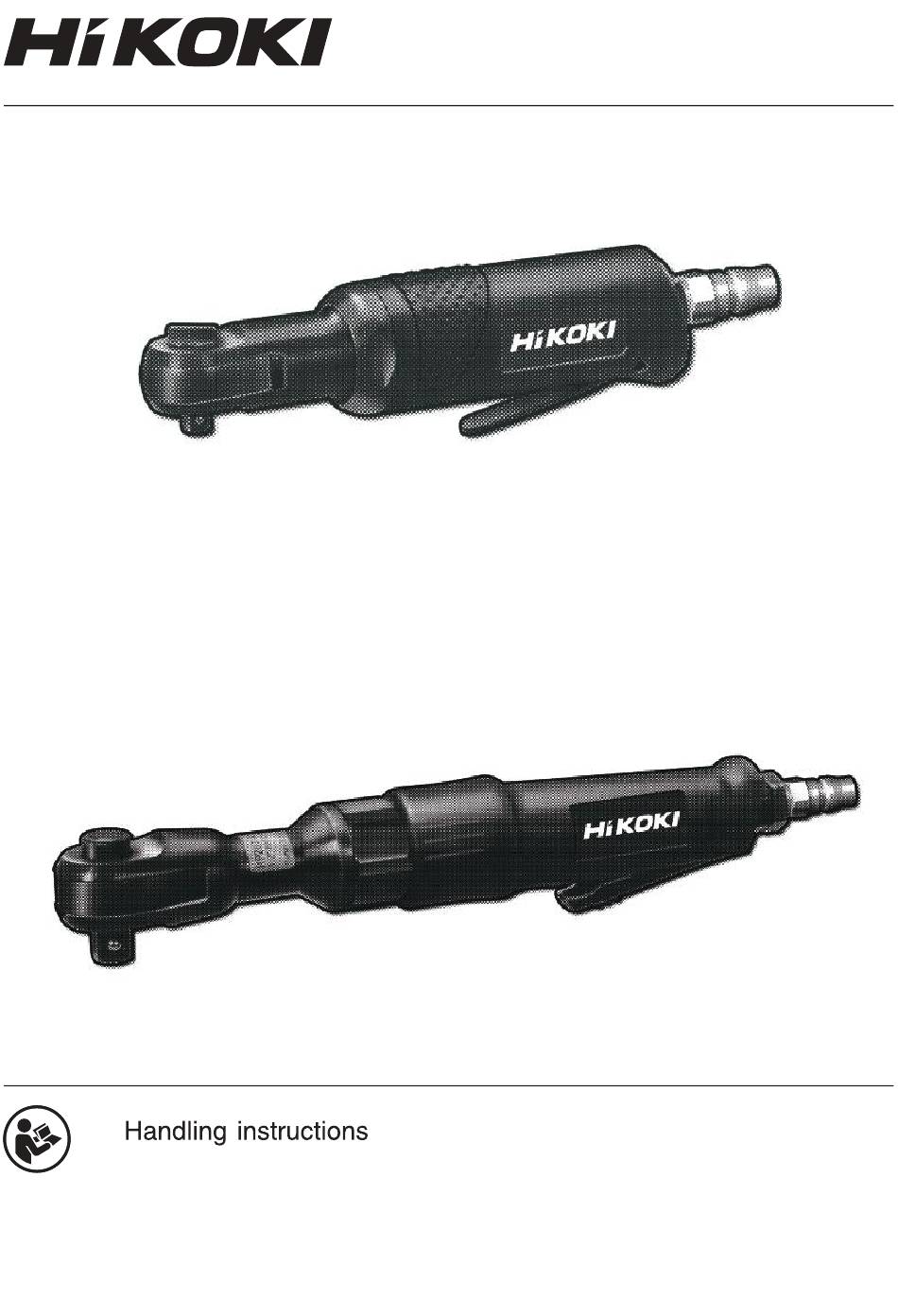

- Page 1 WW8A WW10A...
- Page 2 Impact/Rachet Wrenches It is intended for lightening/loosening or installing/ uninstalling of threaded fasteners,with appropriate power socket wrenches ir driver bits.
- Page 3 OPERATION INSTRUCTION General Before each use: Always operate, inspect and maintain tool in accordance with all regulations (local, state, ● federal and country), that may apply to hand held pneumatic tools. Drain water from air compressor tank and condensation from air lines. See air ●...
- Page 4 The engery transmitted form the tool can vary depending on the size of IMPORTANT the air compressor and the volumn of air the air compressor delivers. Do not use damaged, frayed or deteriorated air hoses and fitting. ● Always disconnect air supply before lubricating, installing, removing or adjusting the tool. ●...
-
Page 5: Entanglement Hazards
Entanglement hazards - Choking, scalping and/or lacerations if loose clothing, personal jewellery, neckware, hair or gloves are not kept away from the tool and accessories. - Gloves can become entangled with the rotating drive, causing severed or bro ken fingers. - Do not wear loose -fitting gloves or gloves with cut or frayed fingers. - Page 6 Workplace hazards - Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by the use of the tool and also of trip hazards caused by the air line or hydraulic hose. - Proceed with care in unfamiliar surr oundings. Hidden hazards, such as electricity or other utility lines, can exist.
-
Page 7: Vibration Hazards
instruction handbook to prevent an unnecessary increase in the noise level. - If the power tool has a silencer, always ensure it is in place and in good working order when the power tool is operating. Vibration hazards Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms. - Page 8 SAFETY TIPS FOR SPECIFIC AIR TOOLS IMPACT/RATCHET WRENCHES General safety tips apply. entangle rubber- coated or metal-reinforced gloves. Never hold Rotating drive sockets and drive extensions can easily the drive, socket or drive extension. In cases where the means to absorb the reaction torque are requested, it is recommended to use a suspension arm recommended for straight case tools and pistol -grip tools.
-
Page 9: Specifications
SPECIFICATIONS Product name Ratchet Wrench Model WW8A Square drive 1/4”(6.35mm) No-load speed 270/min Maximum torque 34 Nm Capasities(size of bolt)(Ordinary bolt) 10 mm Air Consumption (90psi) 2.55cfm Maximum permissible operating pressure 90psi(6.2bar) 0.57kg Weight Dimension (Length x Height x Width) - Page 10 SPECIFICATIONS Product name Ratchet Wrench Model WW10A 1/2”(12.7mm) Square drive No-load speed 160/min Maximum torque 94.8Nm Capasities(size of bolt)(Ordinary bolt) 13mm Air Consumption (90psi) 3.7cfm Maximum permissible operating pressure 90psi(6.2bar) Weight 1.30kg Dimension (Length x Height x Width) 293mm x 50mm x 48mm Noise characteristic values in accordance with EN ISO 15744 A-weighted sound pressure level at workstation(Lpa) 91.6 dB...
-
Page 11: Explanation Of Symbols
EXPLANATION OF SYMBOLS Read insturction before Read insturction before Wear eye protectors. Wear eye protectors. Wear hearing protectors. Wear hearing protectors. Wear half mask s. Wear half masks. use. use. Lubricate daily Lubricate daily Proper position of a fixed Proper position of a fixed Risk of crushing Risk of crushing Risk of crushing... - Page 12 Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99252111 Ō Printed in Taiwan...
