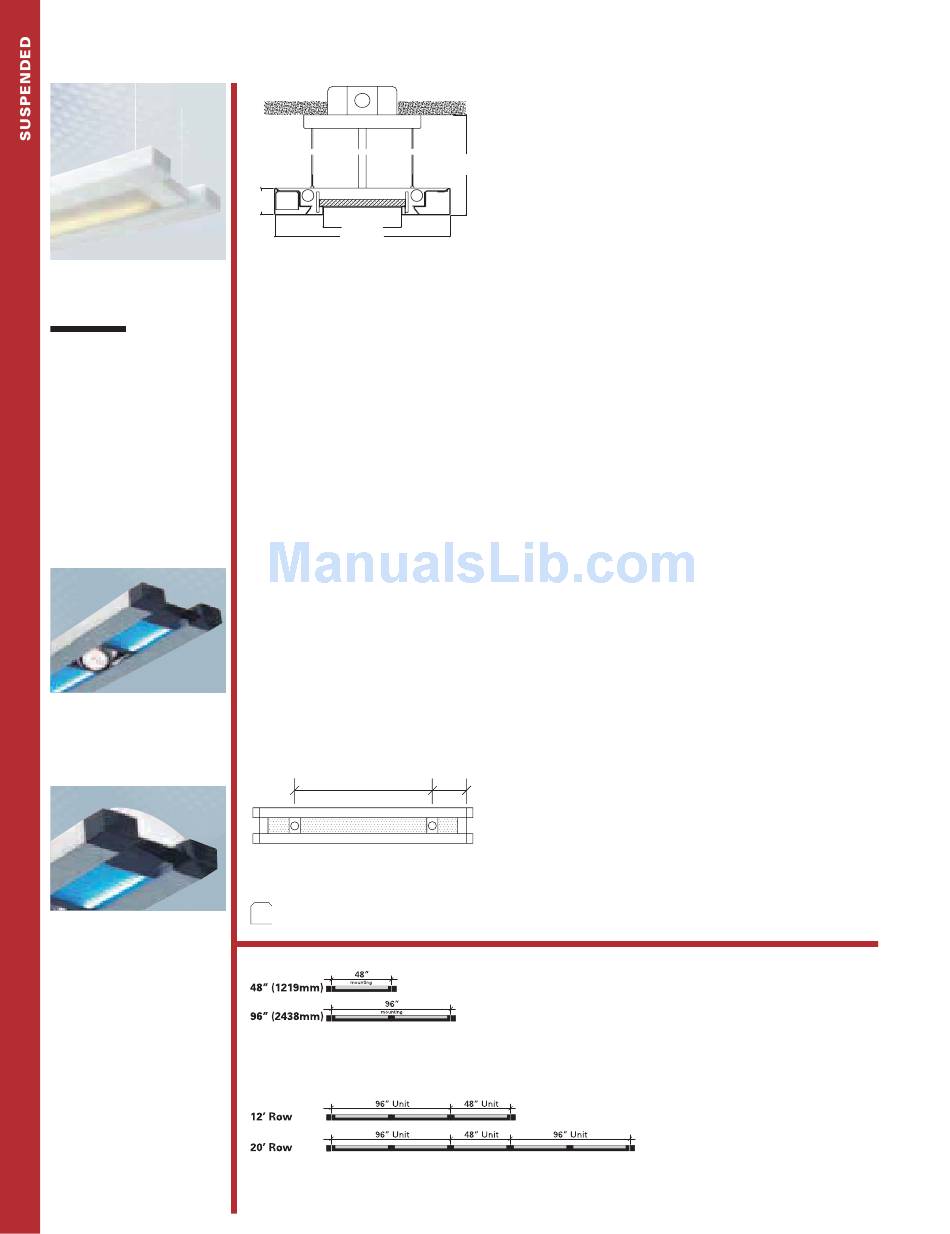

NEO-RAY
™
SCALA
801-B
L U M I N O U S I N D I R E C T
• Consists of (2) T5 lamps.
• Slim profile of 1.5" high by
9" wide.
• Modular housing lengths of
8', 6', 4' and 3'.
• Variety of diffusing media
give the visual mystery of
edge glow.
Halogen Accent Light Kit:
20W AR70 Spot (AS option)
20W AR70 Flood (AF option)
Perforated Top (PT option)
(with Halogen Accent Light Kit)
710
COOPER LIGHTING
COOPER LIGHTING
1-1/2"
S
[38mm]
4" [102 mm]
9" [229 mm]
Construction: Housing is die formed cold rolled
steel forming a 1-1/2" high x 9" wide classic
rectangular profile. Standard 8'-0", 6'-0", 4'-0" and
3'-0" nominal housing lengths are available as
individual or combine for continuous runs.
End Caps: End caps are precision die-cast
aluminum mechanically attached without exposed
fasteners.
Reflector: Side and center reflectors are die-
formed, semi-specular aluminum.
Electrical: Luminaires are prewired with quick wire
connectors and use UL listed Class P, T5 program
rapid start electronic ballasts. Power factor of 97%
with less than 10% THD. Fixtures and electrical
components certified to UL and CUL standards.
Diffusing Media: Standard ribbed semi-
transparent/translucent diffusing lens are available.
Custom diffusers can be specified (consult factory).
Finish: Luminaire housings are standard white
using electrostatically applied acrylic powder coat
paint. Chrome or Satin Chrome finishes available
(see options).
Mounting: Dual aircraft cable for all ceiling types.
Square Canopy - white finish.
Feed Canopy - 5" square
Non Feed Canopy = 5" x 2-1/4"
30"
Position of accent lamp kits as above or specify custom location.
S
= Slim Line Ballast only.
S T A N D A R D L U M I N A I R E L E N G T H S
M O D U L A R R O W C O N F I G U R AT I O N
• Standard length sections join easily to create rows.
• Sections align with T-grid.
• All sections prewired for through-wiring with quick connectors.
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 801B-S-L-2T5HO-1C-120-DC-18-TS-24-28A
Series
801-B=Scala
18"
[457mm]
Optics Up
S=Specular
Optics Down
L=Refer to Diffuser types
Number of Lamps
2=2 Lamps
Lamp Type
(Length)
N5=T5(28W)
Number of Circuits
1=1 Circuit
2=2 Circuits (Side by Side)
1
Wiring
C=Standard Circuit
T=Nightlight
*Slim line ballast only (small case)
1
Voltage
1=120V
2=277V
Suspension
D=Dual Cable
Power Feed
1
C=Straight Cord
Suspension Length
Fixed Cable 12", 15", 18", 21", 24" or 27"(+/- 1/2" Adjustment)
Adjustable Cable 48", 120", 240", 300" or 360"
(infinite adjustment along entire length of cable)
Ceiling Type
T1=1" T-Bar ST=Structure
T9=9/16" T-Bar
Run Length
(Any combination of 8', 6', 4', 3' sections)
03=3' Section
Rows will primarily consist of 8' sections
Diffuser Type
28A=Ribbed Clear Plastic
28B=Ribbed Texture Plastic
9"
PT=Perferated Top Diffuser
Options
WT=White finish
CB=Chrome housing with matching ends
SB=Satin housing with matching ends
AS=20 Watt AR70 Halogen Spot Kit (2) per 4' section (see note)
AF=20 Watt AR70 Halogen Flood Kit (2) per 4' section (see note)
(accent lamp kits are factory installed options)
1 Due to various constraints, some options may not be combined with others.
(not included)
B=Battery Pack
D=Dimming
E=Emergency/Nightlight
U=Universal
K=Curly Cord
JB=4" Octagonal J-Box TS=Slotted T-Bar
04=4' Section
06=6' Section
08=8' Section
28C=Ribbed Blue Plastic
28D=Ribbed Green Plastic
