Item #1007 497 565/1007 497 281/1007 497 576/1007 497 578
1007 497 562/1007 497 572/1007 497 563/1007 497 574
Model # 2333FP-1/2333FP-2
2333FP-3/2333FP-4
USE AND CARE GUIDE

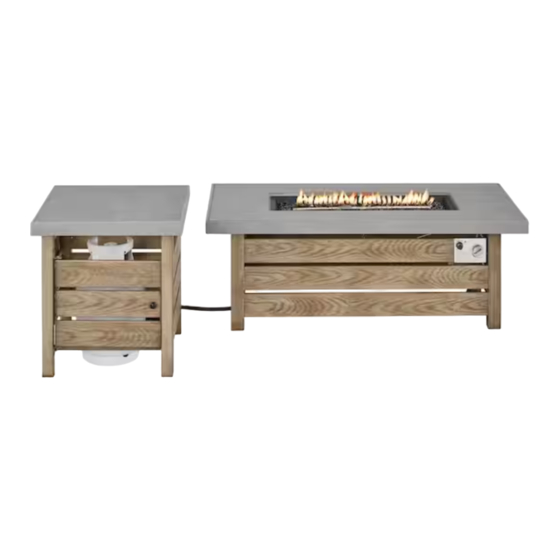

SUNBURY 48 IN. STEEL LOW PROFILE TILE TOP LP GAS FIRE PIT
WITH TANK HOLDER SIDE TABLE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this re pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection SUNBURY 2333FP-1
Summary of Contents for Home Decorators Collection SUNBURY 2333FP-1
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this re pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Assembly . - Page 3 Safety Information (continued) WARNING: Use factory approved replacement parts and accessories only. Use of unapproved parts or accessories can void the warranty on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes, ignition modules, re glasss, logs, etc.
-
Page 4: Speci Cations
Safety Information (continued) ABOUT PROPANE (LP) GAS A self contained LP gas cylinder for use with this appliance must have a capacity of 20 lb. and must be equipped with a Type 1 connector and an OPD (over ll protection device). See Figure 1. The LP gas supply cylinder to be used must be constructed and marked in accordance with the speci cation for LP gas cylinders of the U.S. -
Page 5: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY NOTE: Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts speci cally approved with this appliance may result in property damage or personal injury. -
Page 6: Assembly
Assembly Installing side panel on front panel Installing back panel □ □ Attach the back panel (C) to the other side of the side panel (B) Place parts on a soft, non-abrasive surface. □ with bolts (AA) and gaskets (BB). Attach the side panel (B) to the front panel (A) with bolts (AA) and gaskets (BB). - Page 7 Assembly(continued) Installing gas tank Installing the stator □ Put the stator (FF) on the gas hose and attach the stator (FF) □ Connect the gas hose to the LP gas cylinder. Hand tighten to the back panel (C) with bolts (EE). clockwise only.
- Page 8 Assembly(continued) Placing the lid Installing left panel for side table □ □ Place the lid (F) on the top of the re bowl to complete the Place parts on a soft, non-abrasive surface. □ assembly. Attach the side table left panel (I) to the side table front panel (L) with bolts (GG) and gaskets (BB).
- Page 9 Assembly (continued) Installing table top on side table Preparing to install gas tank □ Carefully turn the side table right side up. □ Place the side table top (H) upside down on a non-abrasive □ surface. Attach the side table top (H) to the frame with Open the door of side table and raise up the cross bar.
-
Page 10: Operation
Operation BEFORE LIGHTING Fire pit should be thoroughly inspected before each use and by a quali ed service person at least annually. If relighting a hot re pit, always wait at least 5 minutes. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. -
Page 11: Leak Check
Operation(continued) CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use. Leak Check WARNING: Perform all leak tests outdoors. Extinguish all open ames. NEVER leak test when smoking. Do not use the re pit until all connections have been leak tested and con rmed no leakage. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Master No. 267946...
