Item #1007 503 572/1007 497 707
1007 503 527/1007 503 579
Model # 2388FP-1/2388FP-2
2388FP-3/2388FP-4
USE AND CARE GUIDE

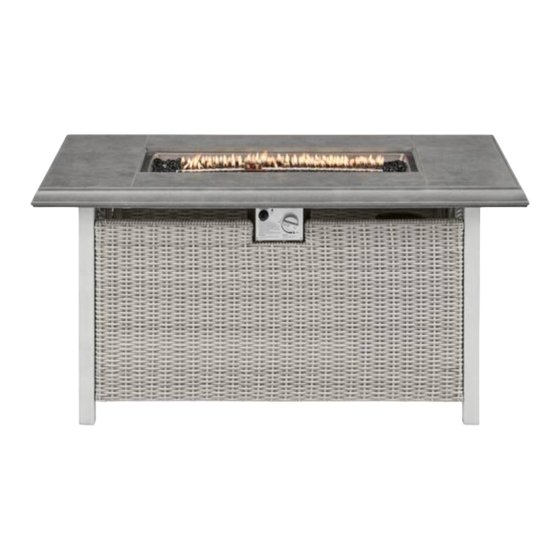

ANAHEIM 49 IN. X 25 IN. GAS FIRE PIT
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection 2388FP-1
Summary of Contents for Home Decorators Collection 2388FP-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fire pit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Assembly . -
Page 3: Safety Information
Safety Information (continued) WARNING: Use factory approved replacement parts and accessories only. Use of unapproved parts or accessories can void the warranty on this product and result in a hazardous condition. Please contact us for information regarding replacement hoses, electrodes, ignition modules, fire glasss, logs, etc. -
Page 4: About Propane (Lp) Gas
Safety Information (continued) Before each use of this gas appliance, open the LP (liquid propane) tank drawer and inspect the LP hose. If there is evidence of excessive abrasion or wear, or the hose is cut, it must be replaced prior to the gas appliance being put into operation. Use only the replacement hose assembly specified in this manual. -
Page 5: Pre-Assembly
Warranty This warranty is for the original purchaser and applies to defects in materials and workmanship of your fire pit, provided your unit is maintained with care and used only for personal, residential purposes. Frames are warranted to be free from defects in material or workmanship for two (2) years. Exclusions: Items used for commercial, contract or other non-residential purposes, display models, items purchased “as is,”... - Page 6 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Bolt Bolt Gasket Gasket Bolt Bolt Bolt Allen key PACKAGE CONTENTS Part Description Quantity Part Description Quantity Connecting rod Back panel U-type connector Left panel Tabletop Front panel...
-
Page 7: Assembly
Assembly Installing back panel and left panel Installing right panel □ □ □ Attach the front panel (C) to the other side of the left panel (B) Place parts on a soft, non-abrasive surface. □ with bolts (AA) and gaskets (BB). Attach the left panel (B) to the back panel (A) with bolts (AA) and gaskets (BB). - Page 8 Assembly (continued) Installing U-type connector Installing connecting rod □ Use U-type connector (G) to connect the front panel (D) with the □ Use connecting rod (F) to connect the front panel (D) with the back panel (A) together with bolts (DD) and gaskets (BB). back panel (A) together with bolts (DD) and gaskets (BB).
- Page 9 Assembly (continued) Closing the door and adding fire glass □ Add fire glass (I) to the fire bowl. □ The fire glass must be flat and must not cover up ignition protection box. □ To lock the door to the gas tank, press down on the doorknob and turn 90 degrees in the direction of the arrow. □...
-
Page 10: Operation
Operation BEFORE LIGHTING Fire pit should be thoroughly inspected before each use and by a qualified service person at least annually. If relighting a hot fire pit, always wait at least 5 minutes. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. -
Page 11: Leak Check
Operation(continued) CAUTION: The gas supply must be turned off at the LP gas supply cylinder when this appliance is not in use. Leak Check WARNING: Perform all leak tests outdoors. Extinguish all open flames. NEVER leak test when smoking. Do not use the fire pit until all connections have been leak tested and confirmed no leakage. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. Master No. 267946...
