Item # 0000000000
Model # 23016-VS72-MG
USE AND CARE GUIDE

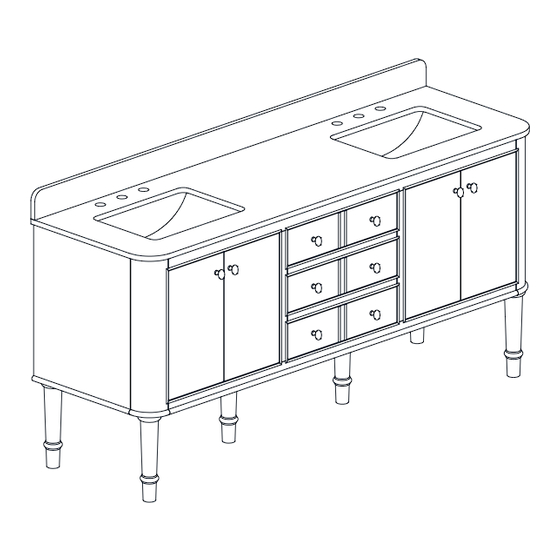

COLLETTE 72 IN. FREE-STANDING / MOUNTED VANITY
Max loading totally: 135 lbs
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
ive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection COLLETTE 23016-VS72-MG
Summary of Contents for Home Decorators Collection COLLETTE 23016-VS72-MG
- Page 1 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
-
Page 2: Table Of Contents
Table of Contents Table of Contents............2 Hardware Included..............5 Safety Information............2 Package Contents..............6 Warranty.................3 Installation Guidelines...............6 California and Minnesota Residents......4 Assembly................7 California residents..............4 Assembly (continued)..........8-12 Minnesota residents..............4 Maintenance..............13 Pre-assembly..............5 Care and Cleaning............13 Planning Assembly..............5 Troubleshooting............13 Tools Required................5 Safety Information DANGER CAUTION Keep small parts away from children during assembly. -
Page 3: Warranty
Home Decorators Collection products are manufactured with superior guality standards and workmanship and are backed by our limited lifetime warranty. Home Decorators Collection products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We wil replace FREE OF CHARGE any product or parts that proves defective. -
Page 4: California And Minnesota Residents
California and Minnesota Residents CALIFORNIA RESIDENTS WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING FORMALDEHYDE WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. GO TO WWW.P65Warnings.ca.gov/products MINNESOTA RESIDENTS "IMPORTANT HEALTH NOTICE. SOME OF THE BUILDING MATERIALS USED IN THIS HOME (OR THESE BUILDING MATERIALS) EMIT FORMALDEHYDE. -
Page 5: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Estimate installation time: Two hours Number of people required: 4 people To ensure your installation goes smoothly, please read these instructions carefully and review the recommended tools and hardware before you begin. To remove the old vanity (if applicable): 1) Turn off the water supply and drain out. 2) Disconnect the supply lines from the faucet. 3) Remove the old vanity top and vanity. -
Page 6: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Vanity with top Backsplash Alternative drawer pull INSTALLATION GUIDELINES When installing this product, the screws should reach the wood studs behind the plasterboard wall. It is not recommended to install on a plasterboard wall if the screws and anchors are not secured in the wood studs. -
Page 7: Assembly
Assembly (Option 1: Wall mounted) Installing the wall cleat Installing the wall cleat Measure 30-1/2” (775 mm) to be the height, this calculated Using a stud nder or equivalent tool, locate at least 1 wall □ □ measure is the distance of the bottom of the wall cleat to the stud and mark its positions on the wall for each wall cleat oor, as illustrated below. - Page 8 Assembly (continued) Installing the wall cleat Installing the wall cleat Drill pilot holes on the wall through the wall cleat (AA) at the Except for the hole that is over the stud, drill in the existing □ □ marked positions using ø2/16” (2.5mm) drill bit. holes on the wall using ø1/4”...
-
Page 9: Assembly (Continued)
Assembly (continued) Installing the wall cleat Hang on the vanity CAUTION: Please install by 4 people at Replace and secure the wall cleat (AA) with screws (BB). □ least. Gently hang the vanity on the wall cleat (AA). □ HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. - Page 10 Assembly (continued) Apply backsplash sealant Install backsplash Clear backsplash (B) of all debris before applying clear Set unpolished bottom edge of backsplash (B) on the vanity □ □ silicon sealant (not included). counter top (A) and press gently against wall and down on Apply a few thin beads of sealant to unpolished back and the top.
- Page 11 Assembly (Option 2: Free- standing) Installing the leg Position vanity CAUTION: Please install by 4 people at CAUTION: Please install by 4 people at least. least. Rotate the screws and uninstall the existing pulls by using Place the vanity with top (A) in the desired position taking □...
- Page 12 Assembly (continued) How to remove/re-install the drawer How to adjust the door Find the drawer clips on the bottom of drawer, then press the clips to both sides, draw the drawer box out. To adjust door in or out, loosen screws (A), adjust door and retighten screws.
-
Page 13: Maintenance
Maintenance To maintain the beauty of the furniture nish, avoid placing the vanity in direct sunlight. □ Avoid exposing the vanity combo to extreme temperatures by installing away from heat and air vents. □ Care and Cleaning Countertop Care Rinse vanity top with clean, hot water when needed. □... - Page 14 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
