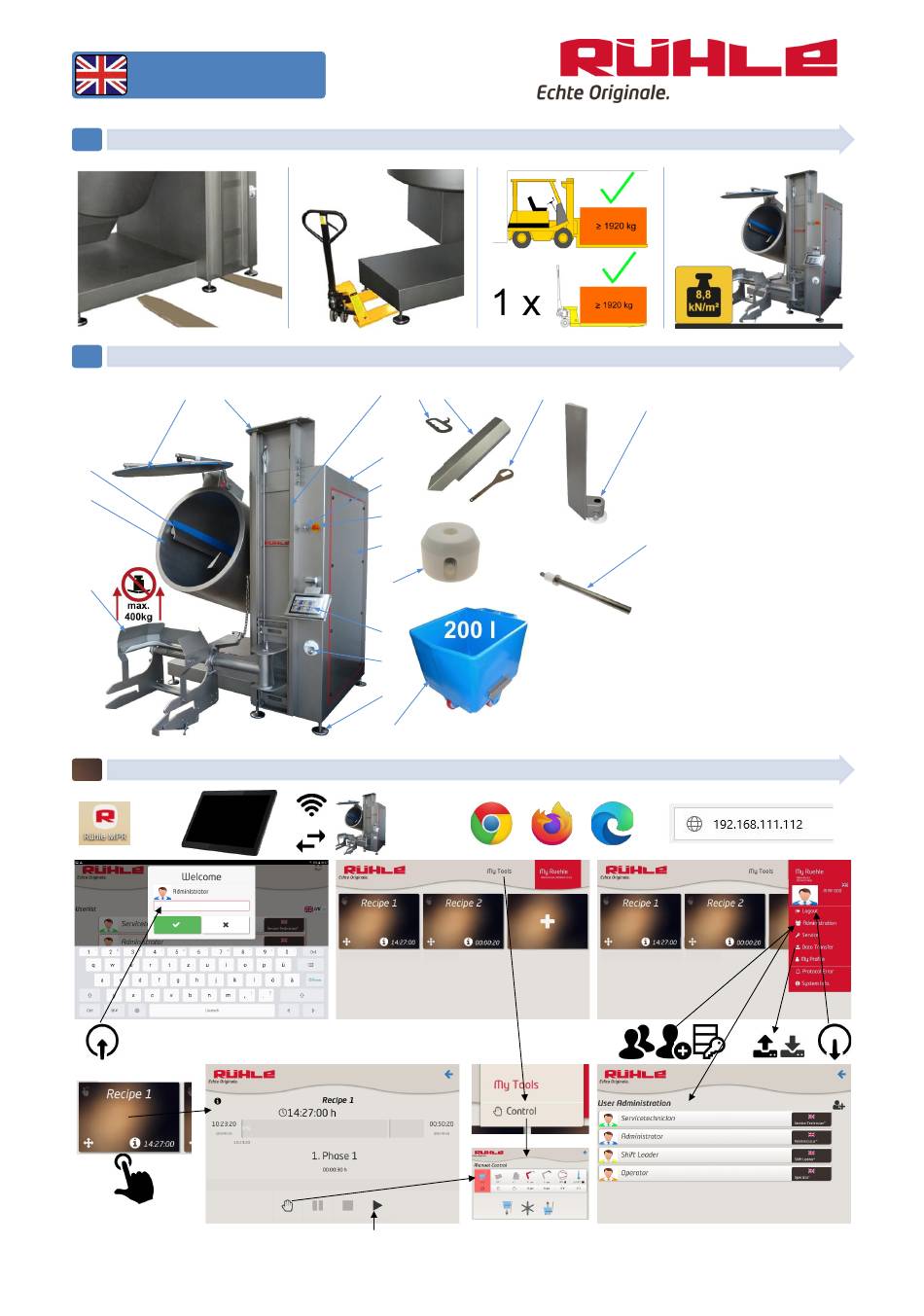

Quick installation guide
• Installing the machine
I
• Operation
II
⑬
⑭
⑫
⑪
⑩
• Recipe selection / Recipe start
=
Factory setting password
= „56789"
MPR 900 Turbo
⑮ ⑯ ⑰
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Recipe selection
Recipe start
Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: +49 7748-523-11, Fax: +49 7748-523-8511
www.original-ruehle.de
⑱
⑲
1)
2)
3)
4)
5)
6)
7)
8)
9)
⑳
10) Trolley reception
11) Drum
12) Tumbling arm
13) Lid
14) Bail wire rope
15) Lift system
16) Mounting aid scraper
17) Discharging aid
18) Installation wrench trolley
19) Mixing arm
20) Mounting aid tumbling arm
/ /
...
Frame
Control wheel
Emergency stop button
Side panel
Plug for work without mixing arm
Operation panel
(Tablet-PC)
Condensation flap
Machine foot
Trolley (optional)
(Trolley connection)
reception
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ruhle MPR 900 Turbo
Summary of Contents for Ruhle MPR 900 Turbo
- Page 1 MPR 900 Turbo Quick installation guide • Installing the machine • Operation ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ Frame Control wheel Emergency stop button ① Side panel ⑫ Plug for work without mixing arm ② Operation panel (Tablet-PC) ⑪...
- Page 2 Lifting aid downwards Lifting aid upwards Temperature Tumbling system Tumbling system clockwise (0° to 100°) (-25°C to +100°C) counterclockwise Tumbling arm (0 rpm to 25 rpm) • Cleaning MPR 900 Turbo Copyright © 2021 by Rühle GmbH 04/27/2021 (Version 2.1)
- Page 3 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MPR 900 Turbo Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen Germany Phone: +49 7748-523-11; fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 4: Table Of Contents
Miknetum MPR 900 Turbo Table of contents Safety instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended use ................7 Installation instructions ..............8 Machine transport and setup ..........8 Workplace description ............. 9 Connecting the machine ............10 Operating instructions ..............10... -
Page 5: Safety Instructions
Miknetum MPR 900 Turbo 1 Safety instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning potentially causing serious injuries if disre- garded. Note Warning of electrical power. - Page 6 Miknetum MPR 900 Turbo a) Completely read and understand these operating instructions before transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as disman- tling/disposal! b) Prepare work instructions for intended and safe transport, commissioning, setup, operation, cleaning, decommissioning, care/maintenance as well as dismantling/disposal!
- Page 7 Miknetum MPR 900 Turbo [The information on the proposed personal protective equip- ment has only an advisory function. A full risk assessment should be carried out before using the product to assess whether the indicated personal protective equipment is suitable for local conditions. Personal protective equipment should conform to the relevant EU standards.]...
-
Page 8: Remaining Risk Of Accidents
Miknetum MPR 900 Turbo !!! The maintenance personnel may only carry out work specified as "Regular maintenance" unless any other authorisation has been is- sued in writing by the manufacturer of the machine. The maintenance personnel must observe the work procedures from the "Maintenance"... -
Page 9: Intended Use
Miknetum MPR 900 Turbo !!! Maintenance Touching electrical components may cause serious inju- ries or death. Work on electrical equipment of the machine may only be carried out by qualified technicians! Always disconnect machine from the mains during this process! -
Page 10: Installation Instructions
Miknetum MPR 900 Turbo • Handling/processing products and materials which are not foodstuffs is prohibited! • The lifting aid may be used only for the standard trolleys pro- vided and must not be overloaded! Lifting of persons is strictly prohibited! •... -
Page 11: Workplace Description
Miknetum MPR 900 Turbo Foundation load: 8,8 kN/m²! Set up the machine on a solid level floor with sufficient load bearing capacity! 2.2 Workplace description Swivel range of lid Swivel range of drum Swivel range of stand- ard trolley support... -
Page 12: Connecting The Machine
Miknetum MPR 900 Turbo The work area around the machine is at least 0.5 m on all sides; for maintenance work it is at least 1 m; if used as passageway, it is at least 1.2 m. 2.3 Connecting the machine The machine is connected to a three-phase outlet (clockwise rotating field);... - Page 13 Miknetum MPR 900 Turbo Before the drum moves automatically, a 5 second alarm (horn) sounds. If the power fails when a user program is being executed the machine will react as follows when the power supply is reinstated: it will start up again automatically and the program will continue from that point at which it was in- terrupted by the power failure.
- Page 14 Miknetum MPR 900 Turbo When emptying the drum corresponding appropriate pre- cautions must be taken to ensure that no person stands in the discharge area of the machine! Make sure when mounting (or adjusting) the tumbling arm, mixing arm (alternative blind plug), standard trolley...
-
Page 15: Cleaning Instructions
Miknetum MPR 900 Turbo 4 Cleaning instructions The Miknetum has been designed to allow for complete cleaning of all parts that come into contact with the food product. 4.1 Safety instructions • Also observe Chapter 1 Safety instructions! • The cleaning staff must notify the supervisor immediately of any defects on the machine! •... -
Page 16: Cleaning Agents And Disinfectants
Miknetum MPR 900 Turbo The tablet PC and its holder must be cleaned manually and not exposed to any water jet! All other parts and surfaces may be cleaned only with normal water pressure! 4.2 Cleaning agents and disinfectants Recommended cleaning agents and disinfectants:... -
Page 17: Cleaning Procedure
Miknetum MPR 900 Turbo 17900 Ökoron® SR Ecological cleaner 1.0 – 5.0 15 – 20 20 – 55 Because of customer-specific application prohibitions, QAC-containing 13308, FINK – products are sometimes not used since the IFS standard must be met. Antisept G Possible alternative products would be, for example, FT 107 DES. - Page 18 Miknetum MPR 900 Turbo Also observe Chapter 1 Safety instructions! Only qualified technicians may carry out repairs on the cool- ing system of the machine! Notify and obtain permission from Rühle customer service if welding or cutting work is required on the machine! Reaching into the inside of the machine by opening the side covers is strictly prohibited when performing "Regular care"...
-
Page 19: Regular Care
Miknetum MPR 900 Turbo ➢ Replacement of moving parts, e.g. brass ring drum swivelling (drum side) [The information on the proposed personal protective equipment has only an advisory function. A full risk assessment should be carried out before using the product to assess whether the indicated personal protective equipment is suitable for local conditions. -
Page 20: Regular Maintenance
Miknetum MPR 900 Turbo 5.2 Regular maintenance Regular maintenance of the machine must be carried out every 2000 hours of operation but at least once per year. Maintenance schedule: a) Inspect the safety devices as described in Chapter 1.1 Safety... -
Page 21: Technical Documentation
Miknetum MPR 900 Turbo 1. The machine contains a cooling system filled with the refrig- erant R452A. It must be pumped off by a refrigeration in- staller and then disposed of correctly! 2. The following components contain oil: Lid drive (lubricating grease) -
Page 22: Electrical Circuit Diagram
Miknetum MPR 900 Turbo Vacuum: 0–90% Lifting aid, load capacity: 400 kg Foundation load: 8,8 kN/m² Emission sound pressure level: L ≤ 70 dB(A) Measured according to: DIN EN ISO 11201 accuracy class 2 Measured when: while idling without product, at maxi- mum speed The data on the type plate principally applies;... -
Page 23: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MPR 900 Turbo 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer hereby declares that the following product Name: Rühle GmbH Type: MPR 900 Legal form: Lebensmitteltechnik Turbo Address: Beim Signauer Schachen 10 Designation: Miknetum 79865 Grafenhausen From series no.
