Summary of Contents for Ruhle MPR 400

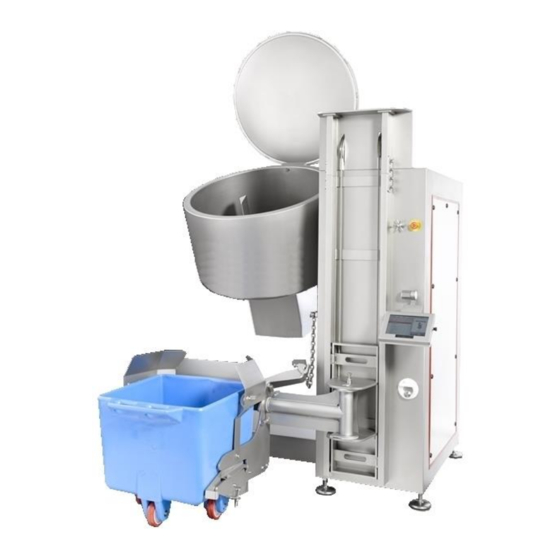

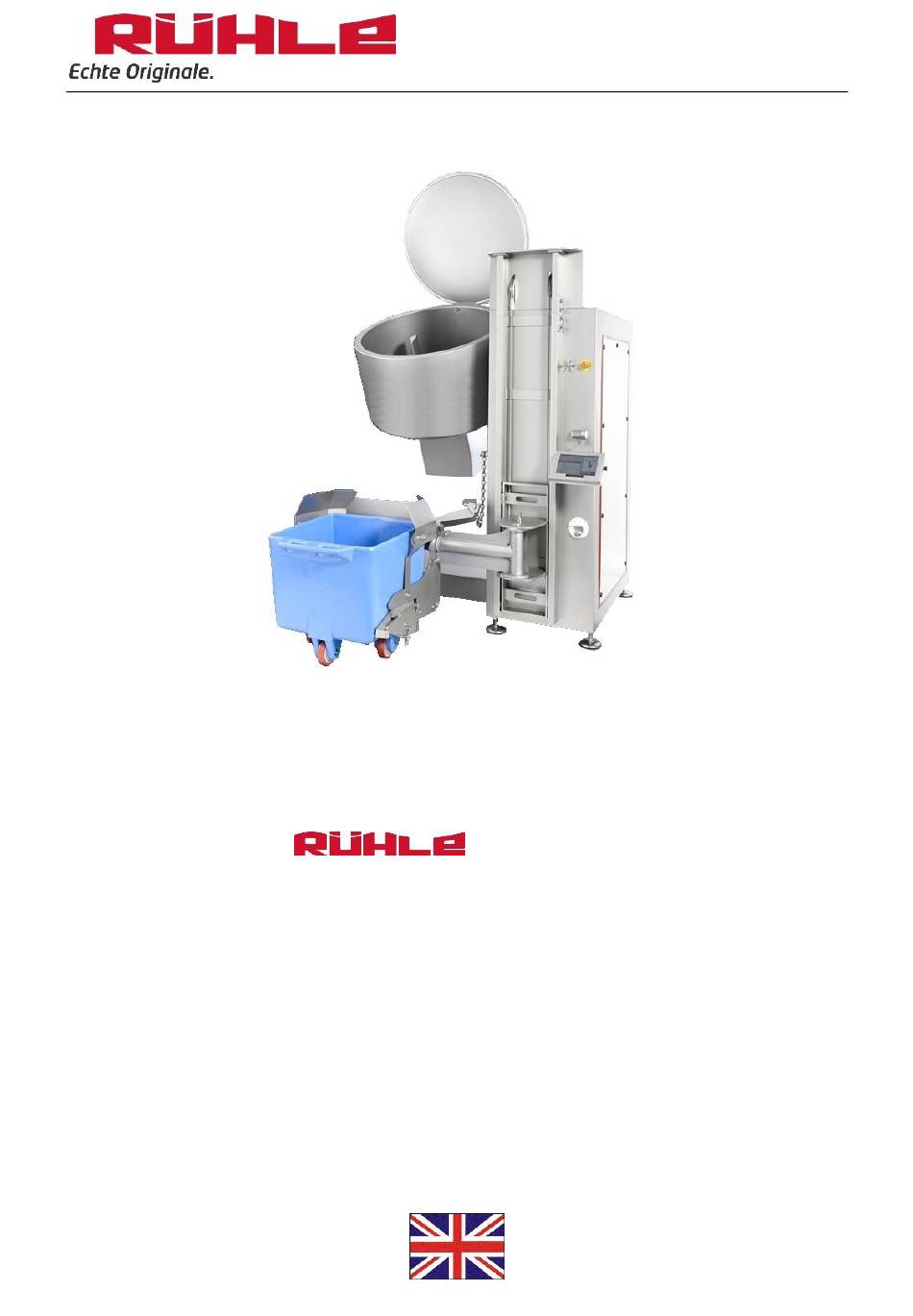

- Page 1 Lebensmitteltechnik Translation of the original instructions - Miknetum Type: MPR 400 Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen Tel.: +49 7748-523-11, Fax: +49 7748-523-8511 www.original-ruehle.de...
-
Page 2: Table Of Contents
Miknetum MPR 400 Table of Contents Safety Instructions ................3 Safety instructions ..............3 Remaining risk of accidents ..........6 Intended Use ................7 Installation instructions ..............7 Machine transport and setup ..........8 Workplace description ............. 8 Connecting the machine ............9 Operating instructions .............. -
Page 3: Safety Instructions
Miknetum MPR 400 1 Safety Instructions !!! Observe the safety instructions during the installation, operation, cleaning and maintenance of the Rühle Miknetum! Hazard potentially causing irreversible injuries if disre- garded. Warning, potentially causing serious injuries if disre- garded. Note Work on electrical equipment of the machine may only... - Page 4 Miknetum MPR 400 missioning, care / maintenance as well as dismantling / dis- posal! c) Make sure that the qualified workers have completely read and understood the respective work instructions according to section 1.1b! d) Proper functioning of the protective devices must be checked at least once a year by a Rühle service technician!
- Page 5 Miknetum MPR 400 a) Visual check for changes or damages on all machine sides and accessible machine parts, e.g. steel cables and chain. The machine must be shut down in the event of any damages or changes! b) Check the safety switches as follows: –...
-
Page 6: Remaining Risk Of Accidents
Miknetum MPR 400 !!! The operating instructions as well as all other technical documents included must be supplied completely when reselling the machine. 1.2 Remaining risk of accidents !!! All life cycles phases Error messages of the operating system must be heeded! -
Page 7: Intended Use
Miknetum MPR 400 1.3 Intended Use The Miknetum has been solely designed for mixing, salting/season- ing, marinating and tumbling meat products and salads. The max. room temperature may be 12 °C for reasons of food hygiene! This machine is designed to be operated by ... -
Page 8: Machine Transport And Setup
Miknetum MPR 400 2.1 Machine transport and setup Please refer to the short instructions supplied with the machine re- garding transport and setup of the Miknetum. The machine and machine parts must be transported by 2 persons (1x operator of floor conveyor / 1x transport su- pervision). -
Page 9: Connecting The Machine
Miknetum MPR 400 2.3 Connecting the machine The machine is connected to a three-phase current outlet; its data (voltage, amperage) must agree with the specifications on the type plate of the machine. The machine must be decommissioned until a damaged... - Page 10 Miknetum MPR 400 If the power fails when a user program is being executed the machine will react as follows when the power supply is reinstated: it will start up again automatically and the program will continue from that point at which it was in- terrupted by the power failure.
- Page 11 Miknetum MPR 400 Make sure when mounting (or adjusting) the tumbling arm, mixing arm (alternative blind plug), standard trolley support as well as the chain on it that the pertaining lock- ing pins are correctly locked! No person may stand in the swivel range of the lid!
-
Page 12: Cleaning Instructions
Miknetum MPR 400 4 Cleaning instructions The Miknetum has been designed to allow for complete cleaning of all parts that come into contact with the food product. 4.1 Safety instructions Follow also the safety instructions in Chapter 1.1! ... -
Page 13: Cleaning Agents And Disinfectants
Miknetum MPR 400 All other parts and surfaces may be cleaned only with normal water pressure! 4.2 Cleaning agents and disinfectants The following cleaning agents and disinfectants must be used: Cleaning agents: Alkaline cleaning: P3 – topax 12, P3 – topax 19, P3 –... -
Page 14: Service: Care, Maintenance, Repair
Miknetum MPR 400 Remove the tablet PC from the holder and close it. Fold up the holder! 5 Service: Care, maintenance, repair Any work related in any way with service may be carried out only by Rühle service technicians and by persons authorised by Rühle in writ- ing. -
Page 15: Regular Maintenance
Miknetum MPR 400 Any abnormalities detected during regular care must be reported to the supervisor! He must immediately initiate correction or mainte- nance or notify Rühle Service! Care schedule: a) Disassemble the machine according to the cleaning instruc- tions. Check for any parts moving with difficulty, material abrasion or other signs of wear and tear. -
Page 16: Repair And Spare Parts
Miknetum MPR 400 e) Check cooling performance of the cooling unit; service, if nec- essary, and clean condenser! Check function of pressure transmitters and temperature sen- sors! g) Inspect the hoses (vacuum system)! h) Check radial shaft seals for leak tightness; replace otherwise! Read the error memory (frequency converter)! 5.3 Repair and spare parts... -
Page 17: Technical Documentation
Miknetum MPR 400 7 Technical documentation 7.1 Technical data Connection voltage: 400 V 50/60 Hz 3-phase AC / N / PE Power consumption: 8.8 kW Full-load current: 18.1 A Back-up fuse max.: 32 A Protection class: IP54 Ambient temperature: +2 to 40 °C... -
Page 18: Ec Declaration Of Conformity According To Directive 2006/42/Ec
Miknetum MPR 400 8 EC Declaration of Conformity according to Directive 2006/42/EC The manufacturer herewith declares that the following product Name: Rühle GmbH Type: MPR 400 Legal form: Lebensmitteltechnik Address: Beim Signauer Schachen 10 Designation: Miknetum D – 79865 Grafenhausen From series no.:...
