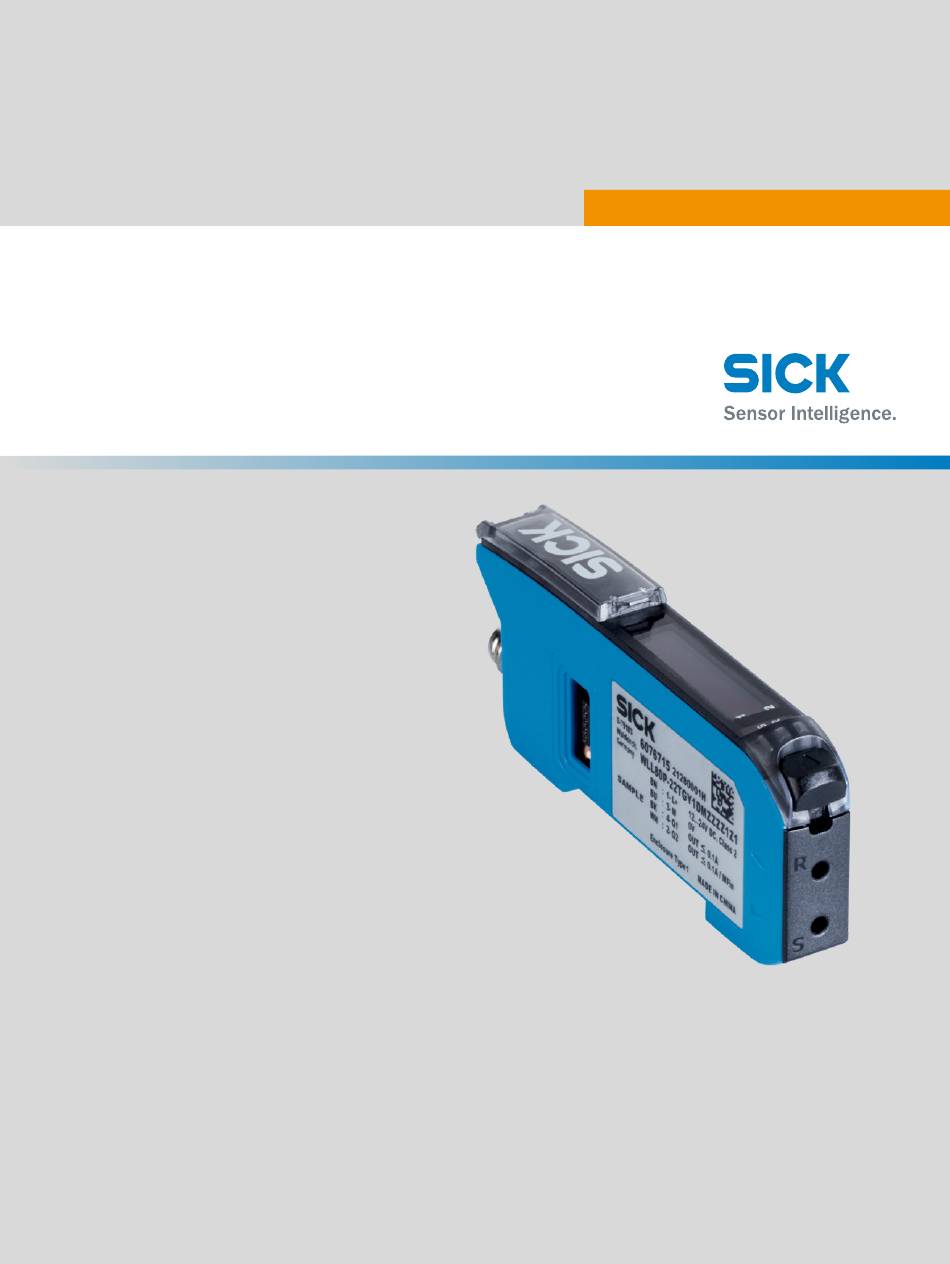

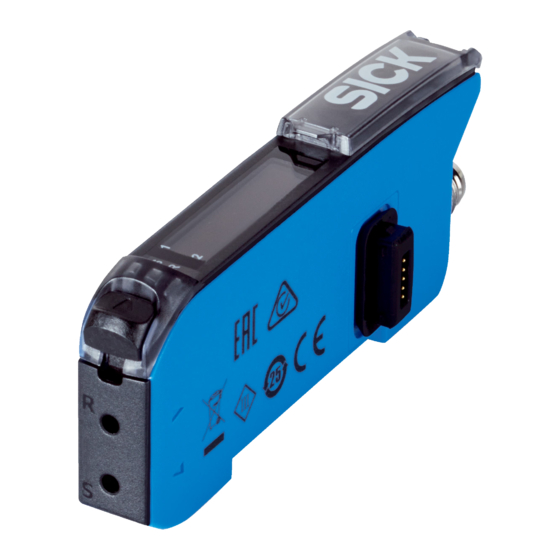

O P E R A T I N G I N S T R U C T I O N S
WLL80 Analog
Fiber-optic sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLL80 Analog and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK WLL80 Analog

Summary of Contents for SICK WLL80 Analog

  • Page 1 O P E R A T I N G I N S T R U C T I O N S WLL80 Analog Fiber-optic sensor...
  • Page 2 This document is an original document of SICK AG. E300503 2006/42/EC SAFETY O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    8.10 Analog channel settings................8.11 Initializing the device................8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 4 12.2 Dimensional drawings................Annex....................73 13.1 Conformities and certificates..............O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 5: About This Document

    The tick denotes the results of an action. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 6: Safety Information

    These operating instructions contain information required during the life cycle of the photoelectric sensor. ■ O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 7: Intended Use

    If the product is used for any other purpose or modified in any way, any warranty claim against SICK AG shall become void. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 8: Product Description

    Logos/approvals Figure 2: Side view of WLL80 with logos O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 9: Device Overview

    Fiber optic interlock Fiber optic connection openings Sender/receiver indicator 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 10: Mounting

    Connect the multi-core optical fiber (fiber bundle) to the receiver. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 11: Mounting/Removing The Sensor

    Figure 7: Remove the WLL80 from the DIN rail 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 12: Ambient Temperature

    [see figure Figure 9: Alignment of proximity fiber O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 13: Electrical Installation

    Maximum Ambient Temperature: +55 °C Environmental Enclosure Tye Rating: Type 1 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 14: Connections

    When I/O polarity is set to Push-pull or PNP and the sensor is connected with minus direct current circuits. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog...

  • Page 15: Multifunction Input/Output

    PNP or NPN (open collector). Electrical values: 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 16 • From 2 sensors = max. 20 mA O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 17: Commissioning

    0-10 V Analog output voltage based 1-5V 1-5 V 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 18: Setting The Sensing Range/Switching Threshold/Current Or Voltage Range/Teach-In

    TP1 and TP2. You can teach in the teach-in point with object or without object first. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog...
  • Page 19 1234 ----------------------------------------- Adaption with 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 20 Lower threshold Current/voltage value [mA/V] Received light [digits] O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 21: Operation

    Display bar Shows the currently selected channel. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 22: General Sensor Functions

    Run mode (locked) 1234 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 23 The indicator bar on the display (next to the respective channel number) shows the currently selected channel. 1234 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 24: Main Menu Navigation Tree (1St Menu Level)

    Jump to first menu item S1 Settings detection mode O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 25: Default Settings (1St Menu Level)

    Output is defined as an N/C (nor‐ mally closed) contact. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 26 中文 : Chinese 中文 한국어 : Korean 한국어 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 27: Display Settings

    Zero setting Energy saving To main menu 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 28 Normal display orientation Display orientation rotated by 180° O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 29 (resetting the zeroing). 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 30: Time Functions

    Time (On) Time (Off) To main menu O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 31 After confirming the time(s), the display returns to the higher-level menu. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 32 Second time setting is only available if a combined time function (switch-on/switch-off delay or switch-on delay/ impulse) is activated. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 33: Detection Parameters

    Edge offset Edge hyst. To main menu 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 34 The SPC function can only be switched on and off for both channels together. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...
  • Page 35 Figure 16: AutoAdapt switching point adjustment Default value (100%) 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 36 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 37 Negative edges (decrease in received light value) are detected. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 38 Setting the edge hysteresis is only available if edge mode is activated. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog...

  • Page 39: I/O Settings

    NPN switching output Push-pull digital output (push-pull Push-pull PNP/NPN) 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 40 – (M) + (L+) Test – (M) O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 41 This function is not available for devices with other connections. The menu is not visible. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 42 This function can be used to define the extent to which the device is locked when the button lock is triggered. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog...
  • Page 43 Load job 5 under job number 5 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 44 Parameters not listed in the table are set to their factory setting. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 45: Device Information

    Serial number of the device (sen‐ r1100100 Serial number sor) 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 46 The value for operational safety (Quality of Run) is only available if through-beam detection mode is set. For “Proximity” detection mode, the value is not available (value 255%). O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 47: Analog Channel Settings

    Output hold Invert span To main menu 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 48 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 49 Current received level (live) Inverted Not inverted 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 50: Initializing The Device

    12,500 µs (50 cycles x response time 250 µs) Edge hyst. (Edge hysteresis) 5 (digits) O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 51: Teach-In

    Teach-in is also shown in a video: 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 52 Update 3500 point. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 53 SP = (TP1 + TP2) x 50% 1000 3500 TP2 50% 50% 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 54 TPmax and the minimum received light value TPmin detected during the running process between starting and stopping teach-in. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...
  • Page 55 (teach-in point TP). 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 56 (teach-in points TP1 and TP2). O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...
  • Page 57 4 mA / 0 V / 1 V flashes. Adjust the lower threshold (LT) using (increase) and (decrease). Click to confirm. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 58 , SP ) are retained. SignalChange1 SignalChange2 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 59 SP SignalChange1 SignalChange2 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 60 NOTE Briefly pressing the TEACH pushbutton cancels the teach-in procedure (Escape). O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 61 20 mA / 10 V / 5 V) 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 62 Lower threshold Current/voltage value [mA/V] Received light [digits] O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 63 LT = TP min [digits] Current/voltage value [mA/V] Received light [digits] 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 64 The yellow LED (for indicating the status of the analog channel) lights up when the analog output is active (signal in the range of the configured lower and upper thresholds 4-20 mA / 0-10 V / 1-5 V). O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 65: Troubleshooting

    The Troubleshooting table indicates measures to be taken if the sensor stops working. 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 66 Increase the distance between the sender and receiver fibers O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...
  • Page 67 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 68 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 69: Disassembly And Disposal

    8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 70: Maintenance

    Subject to change without notice. Specified product properties and technical data are not written guarantees. O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK...

  • Page 71: Technical Data

    IP54 Ambient temperature, operation -25 ... +55 °C 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...

  • Page 72: Dimensional Drawings

    Hinged cover for the pushbuttons Male connector M8 O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog 8027947 /2022-12-14 | SICK Subject to change without notice...

  • Page 73: Annex

    (part number: see the entry in the “P/N” or “Ident. no.” field on the type label). 8027947 /2022-12-14 | SICK O P E R A T I N G I N S T R U C T I O N S | WLL80 Analog Subject to change without notice...
  • Page 74 Phone +7 495 283 09 90 E-Mail info@sick.com E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...
