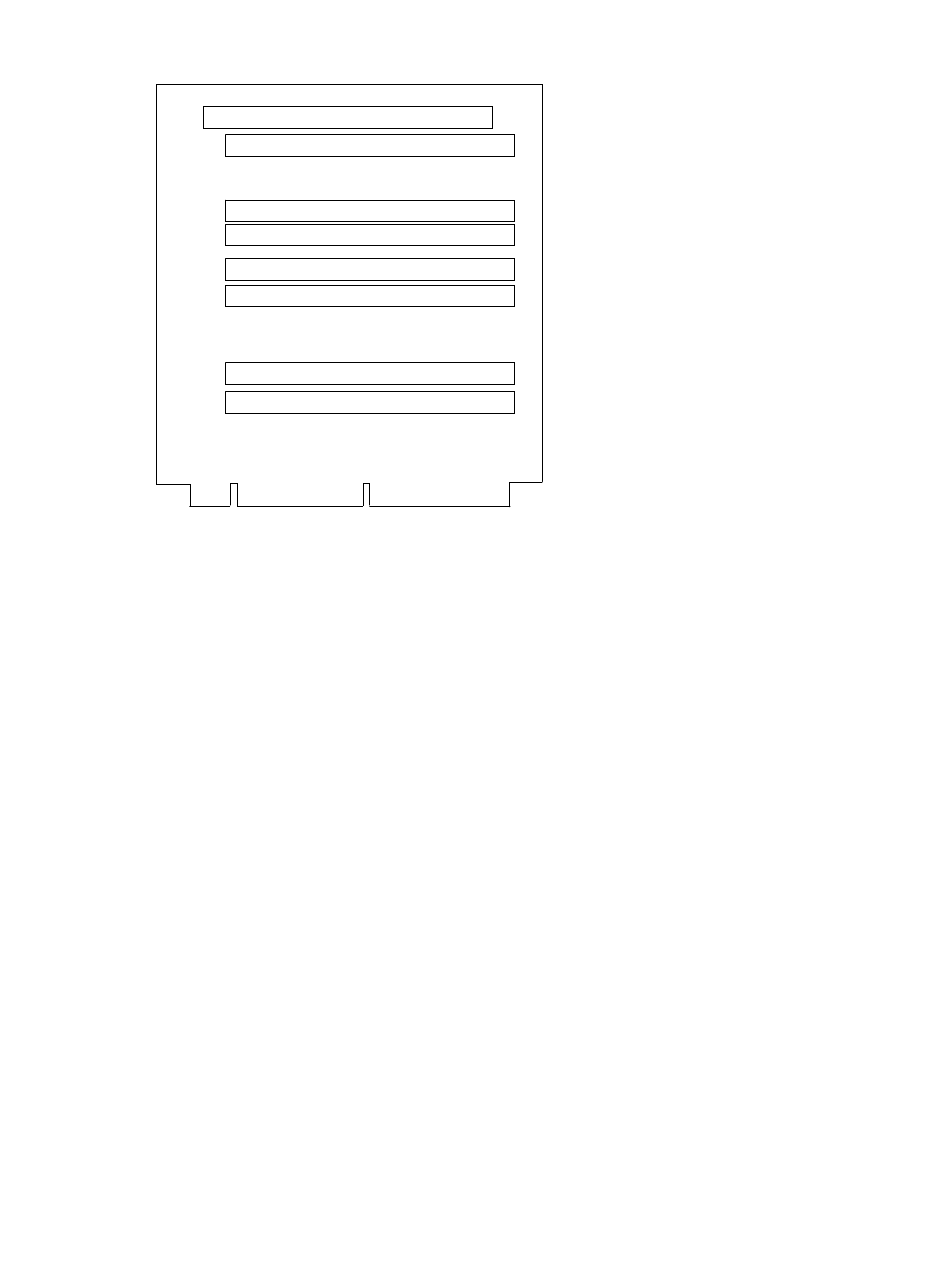

Figure 7–7 Riser Card DIMM Slots
Memory Card Removal and DIMM Installation
1. Shut down the operating system and power down the system.
2. Remove the top cover and left side panel.
3. Unscrew the module handle that secures the outer edge of the memory card (two
retainer screws). See Figure 7–8.
4. Holding the outer edge of the card, gently pull it out of the slot.
CAUTION: Hold the memory card in your hands while installing DIMMs. Do
not lay the card on a flat surface to install DIMMs. This may damage
components on the other side of the memory card.
5. While holding the memory card, align the DIMM in the connector and press
down. The connector levers close.
To install the memory card, reverse steps 1 through 4 in the removal procedure.
7
6
5
4
3
2
1
0
PKW0505A-97
Installing Components 7-11
