Roper FGS326RD Dimension Manual

PRODUCT MODEL NUMBERS
FGS326R
Gas supply: Use 3/4" rigid pipe gas supply line
to the range location. A smaller size pipe on long
runs may result in insufficient gas supply. With
L.P. gas, piping or tubing size can be 1/2"
minimum. If local codes permit, a new CSA
design-certified, 4 - 5 ft (122 - 152.4 cm) long,
1/2" (1.3 cm) or 3/4" (1.9 cm) I.D., flexible metal
appliance connector may be used for connecting
range to the gas supply line. A 1/2" male pipe
thread is needed for connection to pressure
regulator female pipe threads. An easily accessible
individual manual shutoff valve must be located in
the same room, but external to the range.
Electrical: 120-volt, 60 Hz, AC-only, 15 amp,
fused electrical circuit is required. A separate
circuit is recommended. A time-delay fuse or
circuit breaker is recommended.
CABINET OPENING DIMENSIONS
A
I
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
30" Freestanding Gas Range

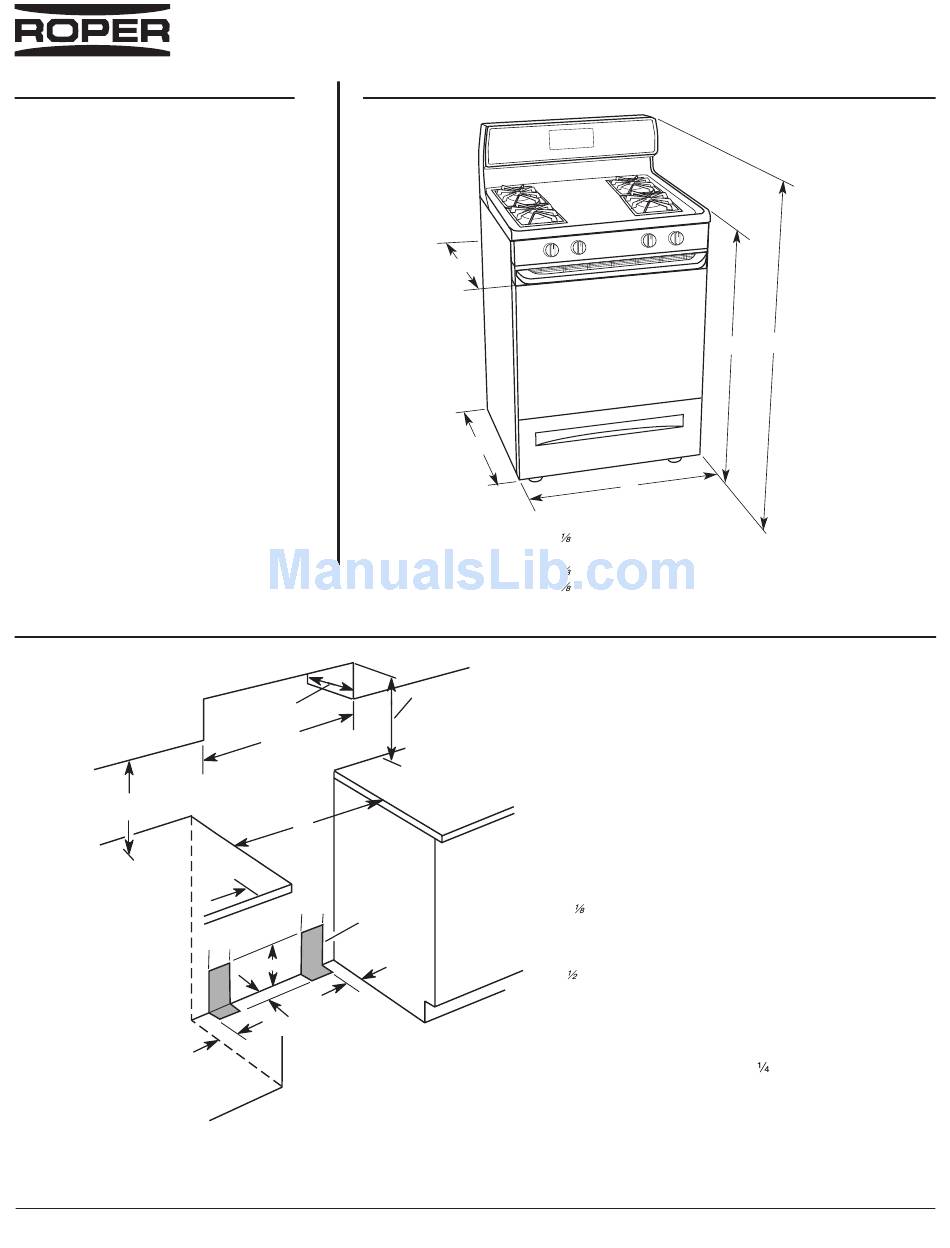

OVERALL DIMENSIONS
B
C
E
K
G
F
G
H
J
A
E
A. 27 " (68.9 cm) depth with handle
B. 36" (91.4 cm) cooktop height
C. 46 " (119.1 cm) overall height
D. 29 " (75.9 cm) width
E. 25" (63.5 cm)
D
A. 18" (45.7 cm) upper side cabinet to countertop
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*
E. 30 " (76.5 cm) min. opening width
F. This shaded area recommended for installation of rigid gas pipe
G. 8" (20.3 cm)
H. 17" (43.2 cm)
I
I. 4 " (11.4 cm)
J. 2" (5.1 cm)
K. 2" (5.0 cm) min. clearance from both sides of range to side wall
or other combustible material.
*NOTE: 24" (61 cm) minimum when bottom of wood or metal
cabinet is protected by not less than
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the
cooking platform and the bottom of an unprotected wood or
metal cabinet.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
C
B
D
" (0.64 cm) flame
Ref. 9758657
02-03-06
