Roper FGP305K Dimensions

®
PRODUCT MODEL NUMBERS
FGP305K
Gas supply: Use 3/4" rigid pipe gas supply line
to the range location. A smaller size pipe on long
runs may result in insufficient gas supply. With
L.P. gas, piping or tubing size can be 1/2"
minimum. If local codes permit, it is
recommended that new flexible metal tubing,
design-certified by AGA or CSA, 1/2-inch or
3/4-inch I.D., be used for connecting the range to
the rigid gas supply line. A 1/2" male pipe thread is
needed for connection to pressure regulator
female pipe threads. An individual manual shutoff
valve must be located in the same room, but
external to the range.
Electrical: A 120-volt, 60-Hz, AC-only,
10-ampere, electrical supply fused on both sides
of the line. A separate circuit is recommended. A
time-delay fuse or circuit breaker is recommended.
CABINET OPENING DIMENSIONS
18" min.
clearance
upper
cabinet to
countertop
This shaded area
recommended for
electrical outlet.
Contact a qualified floor covering
installer to check that the floor
covering can withstand at least
200°F.
Use an insulated pad or 1/4"
plywood under range if installing
range over carpeting.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
30" Freestanding Gas Range

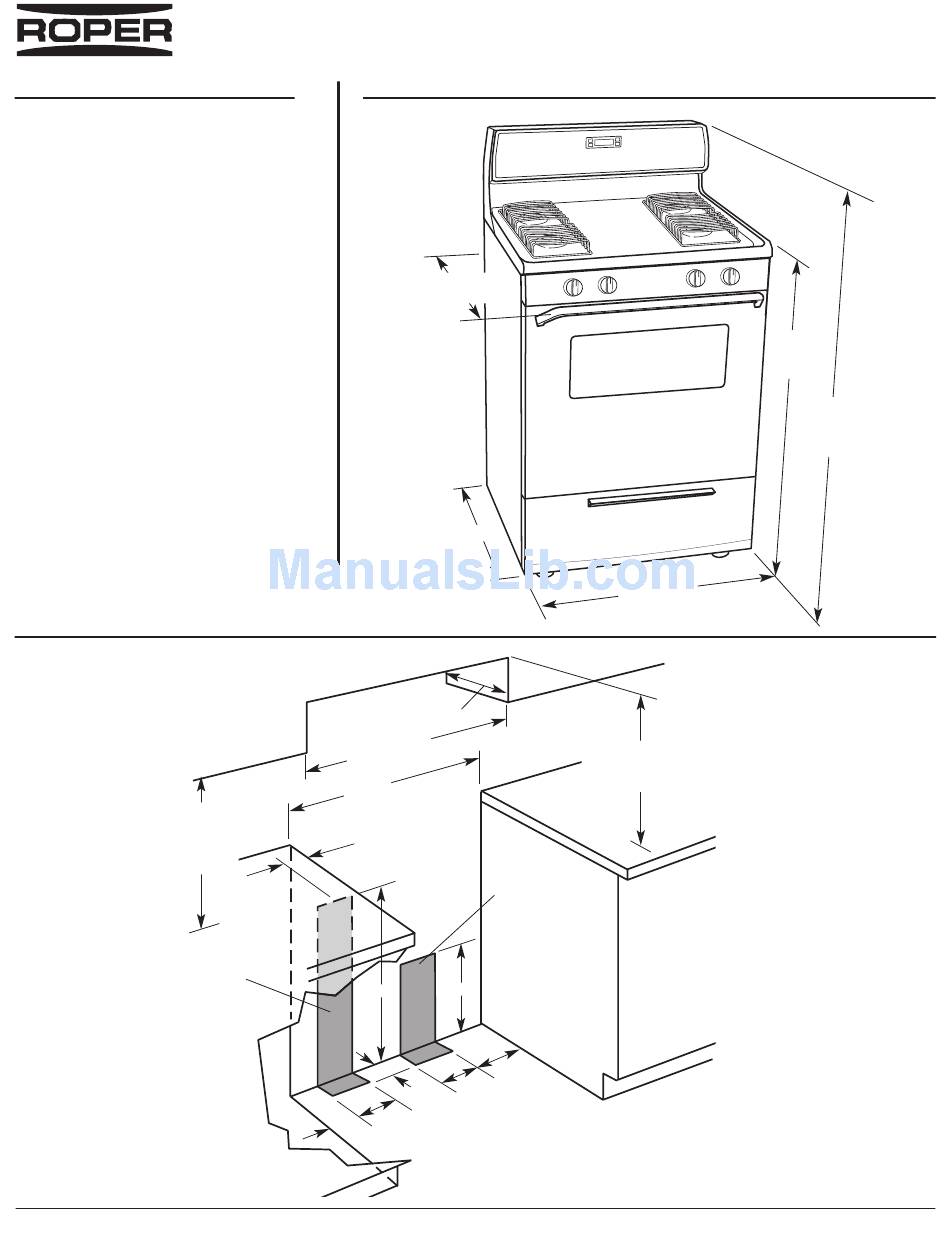

OVERALL DIMENSIONS
30" min. cabinet
opening width
30-1/8"
opening
width
2" min. countertop
space to side wall or
other combustible
material
24"
3"
26-3/4" depth
with handle
24-1/4"
13" max. upper
cabinet depth
This shaded area
recommended
for installation
of gas pipe.
10"
8"
5"
2"
*** Note: 24" min. when bottom of wood or metal cabinet is
5"
protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015"stainless steel,
0.024" aluminum or 0.020" copper.
30" min. clearance between the top of the cooking platform and
the bottom of an unprotected wood or metal cabinet.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
29-7/8" width
For minimum
clearance to top of
cooktop, see Note.***
Do Not seal the range to
the side cabinets.
If cabinet depth is greater
than 24", oven frame
must extend beyond
cabinet fronts by 1/2"
min.
36"
cooktop
height
46-1/4"
overall height for
tall backguard
models
Ref. 98014964
02-25-04
