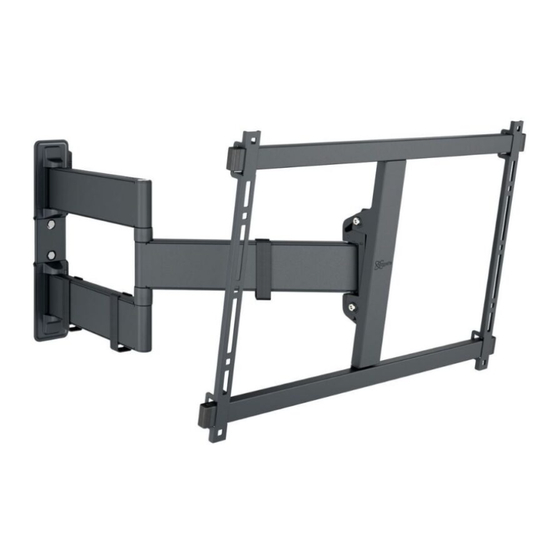

TVM 3840 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you, your TV, and
your family at substantial risk.
Don't dare risk it... Read all
Vogel's recommends that the mounting and/or installation of this product should be carried out by a suitably
qualified expert.
https://vogels.create-usermanual.com/en-us/tvm3840.html
TVM 3840 Series


1/17

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVM 3840 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for vogel's TVM 3840 Series

  • Page 1 05-05-2023 15:53 TVM 3840 Series       TVM 3840 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice.
  • Page 2: What's In Your Box

    05-05-2023 15:53 TVM 3840 Series Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation. Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter.
  • Page 3 05-05-2023 15:53 TVM 3840 Series J. Washers Ø 26 mm K. Covers L. Protective TV patches M. Cable clips N. Spirit level O. Interface bolts P. Allen key Contents of the TV fasteners kit: 4x M6*12mm bolts 4x M6*25mm bolts...
  • Page 4 05-05-2023 15:53 TVM 3840 Series 5 mm or 13/64” concrete / brick drill (for concrete / brick walls only) 5 mm or 13/64” wood drill (for walls with wooden studs only) Stud finder (for walls with wooden studs only) Socket wrench no. 13 Pencil  ...
  • Page 5 05-05-2023 15:53 TVM 3840 Series 1. Carefully place the TV face down, on a soft clean surface without any obstacles. 2. Put the protective TV patches Ⓛ on the interface strips Ⓒ. 3. Attach the interface strips Ⓒ to the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ are at the same height and do not stick out.
  • Page 6 05-05-2023 15:53 TVM 3840 Series Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall   Don’t drill yet! Try our free DrillRight™ AR app (https://www.vogels.com/DrillRight) to find just the right height and mark the first hole, easily.
  • Page 7 05-05-2023 15:53 TVM 3840 Series 3. Attach the wall mount Ⓐ to the wall with the screws Ⓗ, washers Ⓙ and plugs Ⓘ. Use the spirit level Ⓞ to level the wall mount Ⓐ. Make sure that you insert the centre screw into the wall first.
  • Page 8 05-05-2023 15:53 TVM 3840 Series 1. Don’t just guess! Always use a stud finder to determine the position of studs. 2. Find the perfect spot for drilling with our DrillRight™ AR app (https://www.vogels.com/DrillRight) and the included drilling template. Don’t destroy your belongings! The wall mount must always be attached to the studs.
  • Page 9 05-05-2023 15:53 TVM 3840 Series Lubricate the screws for easy screwing in. 5. Click the covers Ⓚ into place. Simple! Other wall type / I don’t know my wall type   If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier or the Vogel’s Consumer Care team at...
  • Page 10 05-05-2023 15:53 TVM 3840 Series Step 3: Attach the TV to the wall mount 1. Carefully lift the TV onto the wall mount Ⓐ by putting the upper interface bolt Ⓠ in the top notch of the wall mount Ⓐ.
  • Page 11 05-05-2023 15:53 TVM 3840 Series Vertical and horizontal correction 1. Vertical correction: If the screen is used in its vertical home position and the screen is not vertically levelled: tighten / loosen the adjustment screw Ⓢ with an allen key Ⓟ until the screen is vertically leveled.
  • Page 12 05-05-2023 15:53 TVM 3840 Series 2. Does tilting not feel smooth or does your TV not stay in its tilted position? You can adjust this with an allen key Ⓟ! If your TV comes forward too easily, turn in the direction of the +. If tilting feels too heavy, turn in the direction of the -.
  • Page 13 05-05-2023 15:53 TVM 3840 Series Removing your TV 1. Unplug the cables from your TV. 2. Remove the bottom interface bolt Ⓠ and loosen the upper interface bolt Ⓠ. 3. Lift your TV off of the wall mount Ⓐ, and put it down somewhere safe.
  • Page 14: Simple Troubleshooting

    Solution Just ask Vogel’s Consumer Care to request a service kit, and we’ll send everything you need. Click here (http://www.vogels.com/contact) to contact Vogel's Consumer Care. Problem ‘I have a lot of leftover bolts, is something wrong?’...
  • Page 15 ‘Which bolts or screws do I need to use?’ Use all wall screws and four bolts for securing your TV. Vogel's offers a complete assembly kit with all mounting materials included in the box, for both your TV and wall. You need four bolts to attach the mount to the TV, and three or four screws for the wall (dependent on your model).
  • Page 16 Vogel’s guarantee shall lapse in the following cases: If the product has not been installed or used in accordance with the instructions; If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type;...
  • Page 17 05-05-2023 15:53 TVM 3840 Series Vogel’s Products BV 2023 © All rights reserved. https://vogels.create-usermanual.com/en-us/tvm3840.html 17/17...
