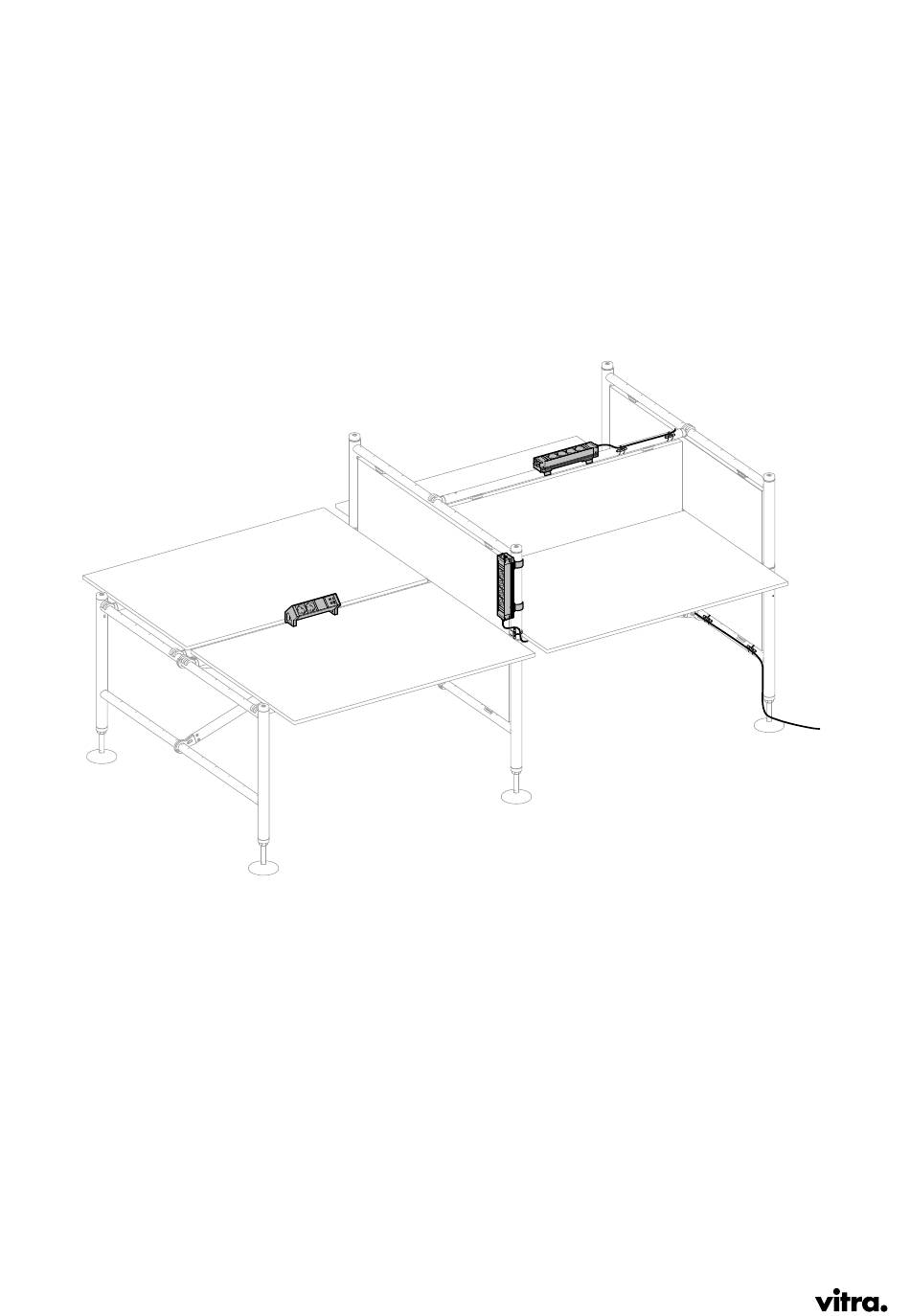

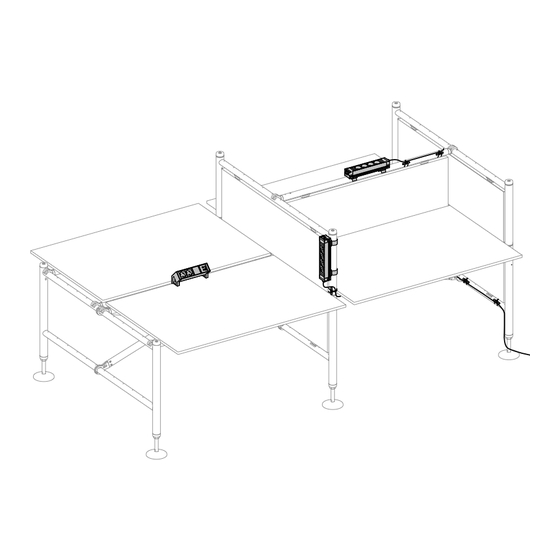

- Page 1 Comma Developed by Vitra in Switzerland Design: Vitra Electrification 2023, 62913788/B...
-
Page 2: Table Of Contents
CONTENTS Contents Notes............................... 3 Proper use ............................3 Explanation of symbols ....................... 3 Disposal ............................3 Safety .............................. 4 Product description ........................5 Concept for electrification ......................6 Series connection ......................... 6 Parallel connection ........................7 Series connection mixed with parallel connection ..............8 Mounting principle and instructions .................. -
Page 3: Notes
NOTES Notes Please read these instructions carefully before use. Keep them in a safe place for later refer- ence. Assembly/dismantling may only be performed by qualified personnel. Check delivery is complete before assembly. Proper use All components listed in this manual are designed exclusively for the electrification of your furniture. -
Page 4: Safety
► The live components are only de-energised when the power plug is disconnected or the power supply is switched off via an appropriate circuit breaker. ► If a live component is damaged, it must be replaced by Vitra Service or by a qualified specialist. -
Page 5: Product Description
PRODUCT DESCRIPTION Product description GST-18 Feed cable (1x power plug/1x GST-18 plug) Connecting cable (2x GST-18 plug) Multiple outlet strip with holder Multiple outlet strip Desk 2 GST-18 protective cap Distribution black box with holder Swiss distribution black box with holder Strain relief Hook and fleece strips for attaching cable Cable bands for attaching cable... -
Page 6: Concept For Electrification
CONCEPT FOR ELECTRIFICATION Concept for electrification Series connection Feed cable Strain relief Cable fastener Connecting cable Multiple outlet strip with holder 6/20 2023, 62913788/B... -
Page 7: Parallel Connection
CONCEPT FOR ELECTRIFICATION 4.2 Parallel connection Feed cable Strain relief Cable fastener Connecting cable Multiple outlet strip with holder Distribution black box with holder / Swiss distribution black box with holder 2023, 62913788/B 7/20... -
Page 8: Series Connection Mixed With Parallel Connection
CONCEPT FOR ELECTRIFICATION 4.3 Series connection mixed with parallel connection Feed cable Strain relief Cable fastener Connecting cable Multiple outlet strip with holder Distribution black box with holder / Swiss distribution black box with holder 8/20 2023, 62913788/B... -
Page 9: Mounting Principle And Instructions
MOUNTING PRINCIPLE AND INSTRUCTIONS Mounting principle and instructions Example wiring Feed cable from the floor Feed cable, for example, from the ceiling 2023, 62913788/B 9/20... -
Page 10: Specifications For The Wiring
MOUNTING PRINCIPLE AND INSTRUCTIONS 5.2 Specifications for the wiring NOTE To ensure safe use, the individual points on cable routing must be observed. Rmin. 50 Rmin. 50 Rmin. 50 General information • Electrical components are not to be mounted on the exterior; cables must always be routed on the inside of the furniture. - Page 11 MOUNTING PRINCIPLE AND INSTRUCTIONS Feed cables • Where necessary, feed cables must be clearly marked; see point 5.2.1 "Marking of sepa- rate circuits". • Make sure that the feed cables do not become trip hazards (1). • Either all power plugs themselves must be directly accessible or, optionally, the appropri- ate circuit breaker must be accessible and marked.
-
Page 12: Marking Of Separate Circuits
MOUNTING PRINCIPLE AND INSTRUCTIONS 5.2.1 Marking of separate circuits NOTE All separate circuits shall be clearly recognisable/identifiable at the lead cables, electric sockets, and distributors. ► Any required markings must be made on site during installation. 12/20 2023, 62913788/B... -
Page 13: Assembly
ASSEMBLY Assembly Installation of multiple outlet strip and Swiss distribution black 2023, 62913788/B 13/20... -
Page 14: Fitting The Distributor
ASSEMBLY 6.2 Fitting the distributor 6.3 Fitting the cable fasteners Hook and fleece strips 14/20 2023, 62913788/B... -
Page 15: Installation Position Of Multiple Outlet Strip Desk 2
ASSEMBLY Cable bands 6.4 Installation position of multiple outlet strip Desk 2 Cable routing, see point 5.2 "Specifications for the wiring" 2023, 62913788/B 15/20... -
Page 16: Fitting Strain Relief
ASSEMBLY 6.5 Fitting strain relief 16/20 2023, 62913788/B... -
Page 17: Fitting Gst-18 Protective Cap
ASSEMBLY 6.6 Fitting GST-18 protective cap DANGER Electric shock Danger of fatal injury and risk of damage to property ► Disconnect the power supply before mounting / removing the GST- 18 protective caps! NOTE Only remove the GST-18 protective caps with non-conductive or insulated tools. 2023, 62913788/B 17/20... -
Page 18: Checklist
CHECKLIST Checklist ☑ Are all supply line power plugs either directly accessible or is the appropriate circuit breaker marked and accessible so that the power supply can be disconnected at any time? ☑ Are all circuits individually fused? ☑ Can the individual circuits be identified with the feed cable or circuit breaker? ☑... -
Page 19: Notes
NOTES Notes 2023, 62913788/B 19/20... - Page 20 Vitra Factory GmbH Charles-Eames-Strasse 2 79576 Weil am Rhein Germany www.vitra.com...
