Davy Table
Michel Charlot ,
Davy Table

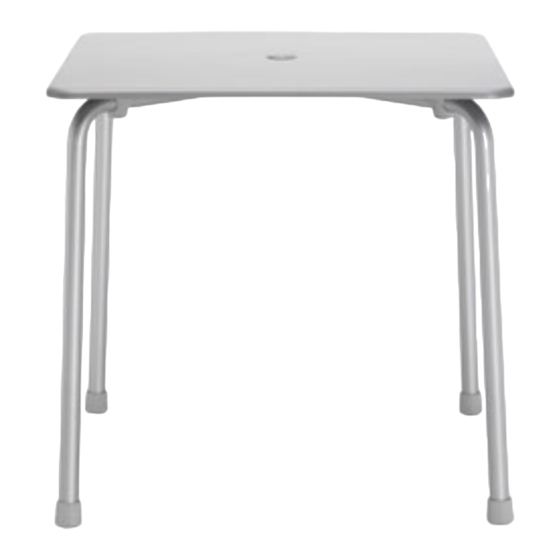

The Davy Table is a robust new design for
outdoor use. Its construction is composed
of anodised aluminium sheeting and
aluminium tubing, making it lightweight
while also giving it a high degree of
strength and rigidity. The young Swiss
designer Michel Charlot developed this
table to complement the legendary Landi
Chair designed by Hans Coray in the
same material. Thus the Davy Table and
Landi Chair make a perfect combination,
but each can also be attractively paired
with other chairs or tables.
Despite – or perhaps because of – its
technical material properties and
info@vitra.com | EN
raw-looking fi nish, the weatherproof Davy
Table is well suited to a wide variety of
outdoor settings, also thanks to its
compact proportions. The table has a
punched hole in the centre of the top to
accommodate a parasol. Up to four
tables can be stacked at an angle, and
the height of the glides can be adjusted
to level the legs on uneven ground.
Materials
∏ Table top: aluminium sheeting with punched
hole in centre, matte anodised aluminium.
∏ Leg mounts: die-cast zinc, powder-coated in
light grey. Plastic plugs for stacking protec-
tion made of light grey TPE.
∏ Base: table legs made of bent aluminium
tubing, matte anodised surface fi nish.
∏ Glides: glides in light grey injection-moulded
TPE.
∏ Stacking: the Davy Table can be stacked at
an angle (max. 4 tables).
∏ Levelling: to level the table on uneven
surfaces, the height of the legs can be indivi-
dually adjusted by rotating the glides.
∏ Applications: suitable for outdoor use.
www.vitra.com/davytable
