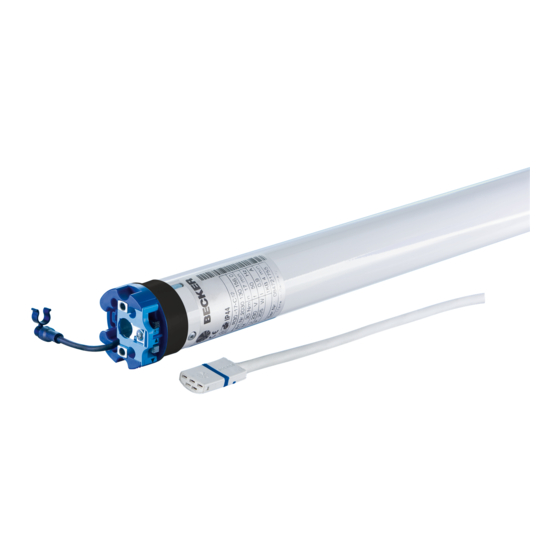

R8/17C PRF+ -
R40/17C PRF+
Assembly and Operating Instructions
en
Roller Shutter Drives
with integrated radio receiver
Important information for:
• Fitters
• Electricians
• Users
Please forward accordingly!
These instructions must be kept for future reference.
Becker-Antriebe GmbH
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker R8/17C PRF+
Summary of Contents for Becker R8/17C PRF+
- Page 1 R8/17C PRF+ - R40/17C PRF+ Assembly and Operating Instructions Roller Shutter Drives with integrated radio receiver Important information for: • Fitters • Electricians • Users Please forward accordingly! These instructions must be kept for future reference. Becker-Antriebe GmbH 35764 Sinn/Germany www.becker-antriebe.com...
-
Page 2: Table Of Contents
• Considerably less strain on the shutter and the stoppers even in systems with insulating plaster • Longer service life thanks to smooth system and drive operation • With pluggable Becker connecting cable Always observe these assembly and operating instructions when installing and setting the device. -
Page 3: Warranty
Warranty Structural modifications and incorrect installation which are not in accordance with these and our other instructions can result in serious injuries, e. g. crushing of limbs. Therefore, structural modifications should only be carried out with our prior approval and in accordance with our instructions, particularly the information contained in these Assembly and Operating Instructions. Any further processing of the products which does not comply with their intended use is not permitted. - Page 4 • Never handle the drive via the mains cable. • Drives with a H05VV-F connection cable are only to be used inside the building. • Drives from Becker Antriebe are to be mounted and operated solely with mechanical accessory components shown in the current Becker product catalogue.
-
Page 5: Intended Use
Other applications, utilisation and modifications are not permitted in order to protect the safety of the users and others, since these actions can impair the system’s safety, resulting in personal injuries and property damage. Becker-Antriebe shall not accept liability for damages arising from such actions. Always observe the information in these instructions when operating or repairing the system. - Page 6 Assembly and Operating Instructions Mounting the roller shutter drive Attention Drives from Becker Antriebe are to be mounted and operated solely with mechanical accessory components shown in the current Becker product catalogue. Prior to mounting, the fitter must ensure that the masonry and the shutter box are sufficiently robust (drive torque plus weight of the shutters).
- Page 7 4. The drive adapter of the tubular drive is connected to the roller tube as fol- lows: Size of drive Roller shutter tubes–Ø Torque max. Fastening screws [mm] [mm] [Nm] for drivers (4 x) 60 - 70 mm Self-tapping screw Ø...
- Page 8 Assembly and Operating Instructions Action Response 1) Connecting the tubular drive 1) + 2a) Connect the tubular drive to the power supply and open the battery compart- ment of the hand-held transmitter. Motor cable Mains connection blue blue 2) Activating tubular drive learn mode 2a) Activating the tubular drive learn mode by switching on the power sup- black black...
- Page 9 5) Setting the end limits Note The end limits can only be set via the master transmitter. The axle direction setting must be correct. When the end limits are being set, the tubular drive remains in lock-in mode. The lower end limit must always be programmed first.
- Page 10 Assembly and Operating Instructions Action Response to 5d) Anti-lifting device at the lower limit to upper stopper Adjust the shutters until they are in the The tubular drive switches off automati- lower limit position. cally. Then adjust the shutters up towards the The tubular drive switches off automati- permanent upper stopper.
- Page 11 Action Response 7) Deleting end limits Note The end limit settings can only be deleted via the master trans- mitter. 7a) Deleting the end limits individually Adjust the shutter into the end limit po- sition to be deleted. First press and hold the learn button. The tubular drive makes a “clack-clack”...
- Page 12 Assembly and Operating Instructions Action Response 9) Ventilation position Note This function is used to move your roller shutters from the lower end limit upwards in order to open the ventilation slats. The ven- tilation position can only be set after the two end limits have been set.
- Page 13 Action Response 11) Deleting transmitters 11a) 11a) Deleting transmitters individually Note The master transmitter which was programmed in point 3) cannot be deleted. It can only be overwritten (see Point 12). Press the learn button on the master The tubular drive makes a “clack” transmitter for 3 seconds.
-
Page 14: Programming The Switching Times
The packaging material must be disposed of correctly. Declaration of Conformity Becker tubular drives display the CE mark. These drives comply with valid EU directives and meet EMC requirements. The complete Declaration of Conformity can be requested from the manufacturer. -
Page 15: Technical Data
Technical Data Type R8/17C PRF+ R12/17C PRF+ R20/17C PRF+ R30/17C PRF+ R40/17C PRF+ Nominal torque (Nm) Output speed (min Limit switch range 64 revolutions Mains voltage 230 V AC / 50 Hz Power consumption (W) Nominal current consump- 0.45 0.50 0.75 0.90 1.18... -
Page 16: Brief Instructions Commissioning Prf
Assembly and Operating Instructions Brief instructions commissioning PRF+ Caution Always adhere to the information contained in the assembly and operating instructions during commission- ing, operation and repair work. The manufacturer or supplier shall not accept liability for personal injuries, property damage or consequential damages resulting from non-adherence to the instructions. 1.
