Placement and Maintenance
Sequel™ Home Office Furniture is designed for indoor use on level floors. Clean
glass with glass cleaner, and steel parts and wood veneer with a moist cloth. Your
Sequel™ Home Office Furniture is engineered for easy assembly. Carefully follow this
procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace should be a non-
marring surface such as carpet. For missing hardware pieces, please contact BDI
Customer Service at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.

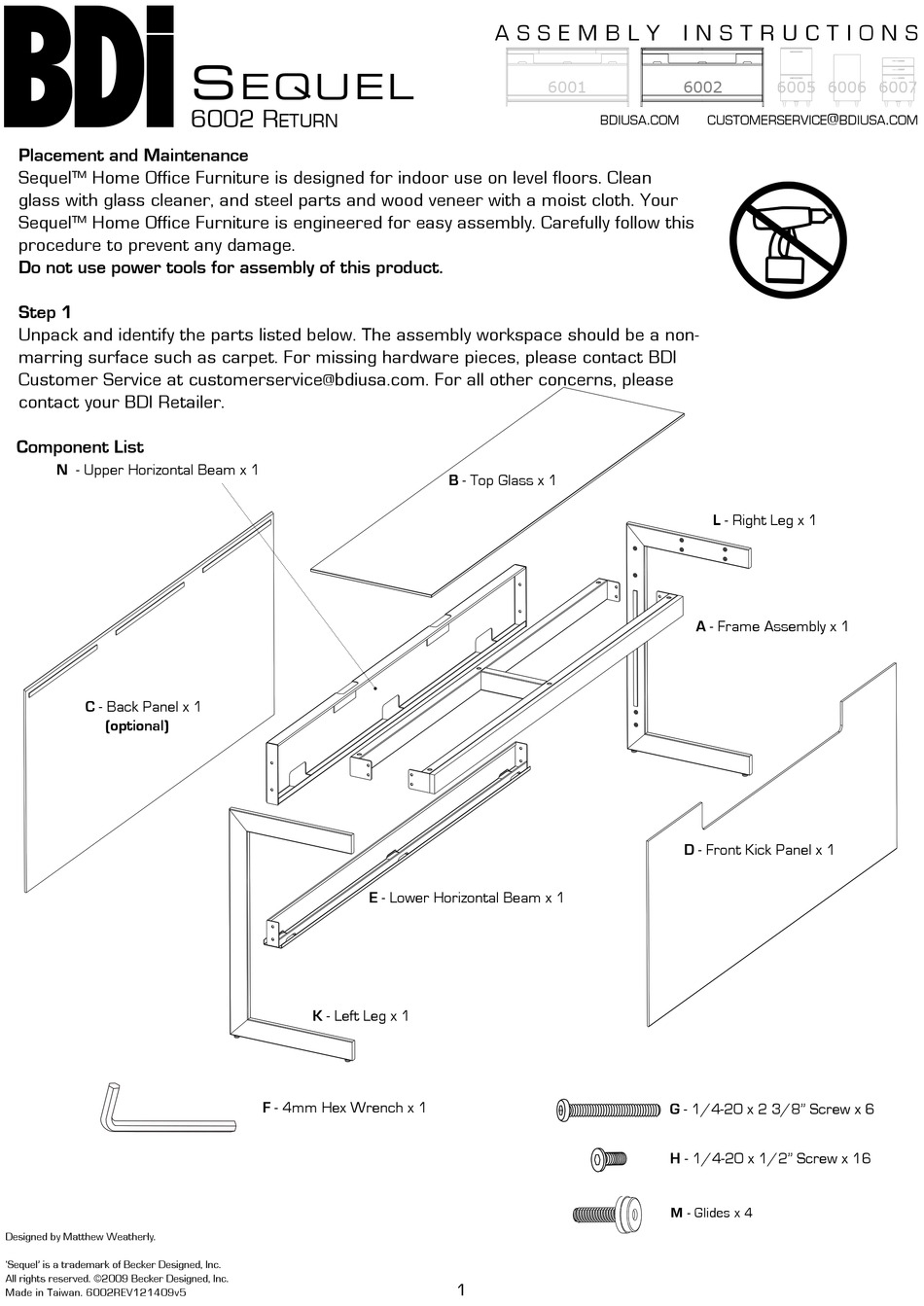

Component List
N - Upper Horizontal Beam x 1
C - Back Panel x 1
(optional)
Designed by Matthew Weatherly.
'Sequel' is a trademark of Becker Designed, Inc.
All rights reserved. ©2009 Becker Designed, Inc.
Made in Taiwan. 6002REV121409v5
S
equel
6002 R
etuRn
K - Left Leg x 1
F - 4mm Hex Wrench x 1
a s s e m b l y i n s t R u c t i o n s
B - Top Glass x 1
E - Lower Horizontal Beam x 1
1
6001
6002
.
bdiusa
com
customeRseRvice
L - Right Leg x 1
A - Frame Assembly x 1
D - Front Kick Panel x 1
G - 1/4-20 x 2 3/8" Screw x 6
H - 1/4-20 x 1/2" Screw x 16
M - Glides x 4
6 6
6005 5
6
6006
6 6007 7
6
@
.
bdiusa
com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Becker Sequel 6002 Return
Summary of Contents for Becker Sequel 6002 Return
- Page 1 G - 1/4-20 x 2 3/8” Screw x 6 H - 1/4-20 x 1/2” Screw x 16 M - Glides x 4 Designed by Matthew Weatherly. ‘Sequel’ is a trademark of Becker Designed, Inc. All rights reserved. ©2009 Becker Designed, Inc. Made in Taiwan. 6002REV121409v5...
- Page 2 Step 1 Install Glides (M) to the bottom of Left Leg (K) and Right Leg (L). M x 4 assembly instRuctions bdiusa com customeRseRvice bdiusa...
- Page 3 Step 2 Attach Left Leg (K) to Frame Assembly (A) using Screw (H) and Hex Wrench (F). Step 3 Attach Right Leg (L) to Frame Assembly (A) using Screw (H) and Hex Wrench (F). assembly instRuctions bdiusa com customeRseRvice bdiusa...
- Page 4 Step 4 Attach Upper Horizontal Beam (N) to inside of Left and Right Leg using Screw (H) and Hex Wrench (F). assembly instRuctions bdiusa com customeRseRvice bdiusa...
- Page 5 Step 5 2 Person Task Attach Lower Horizontal Beam (E) to inside of Left and Right Leg using Screw (H) and Hex Wrench (F). assembly instRuctions bdiusa com customeRseRvice bdiusa...
- Page 6 Step 6 2 Person Task With the help of another person, gently lower Assembly onto Top Glass (B). Both parts will be placed upside down for the assembly process and fasten into place using Screw (G) and Hex Wrench (F) at all (7) fastener locations.
- Page 7 Step 7 Place Sequel Return in desired location. Once all of the electrical wires are routed, install Kick Panel (D) as shown above. The rear side of panel has magnets that will hold the panel in place. Note: The Sequel Return is designed to permit placement in front of an electrical outlet for easier wiring access.
