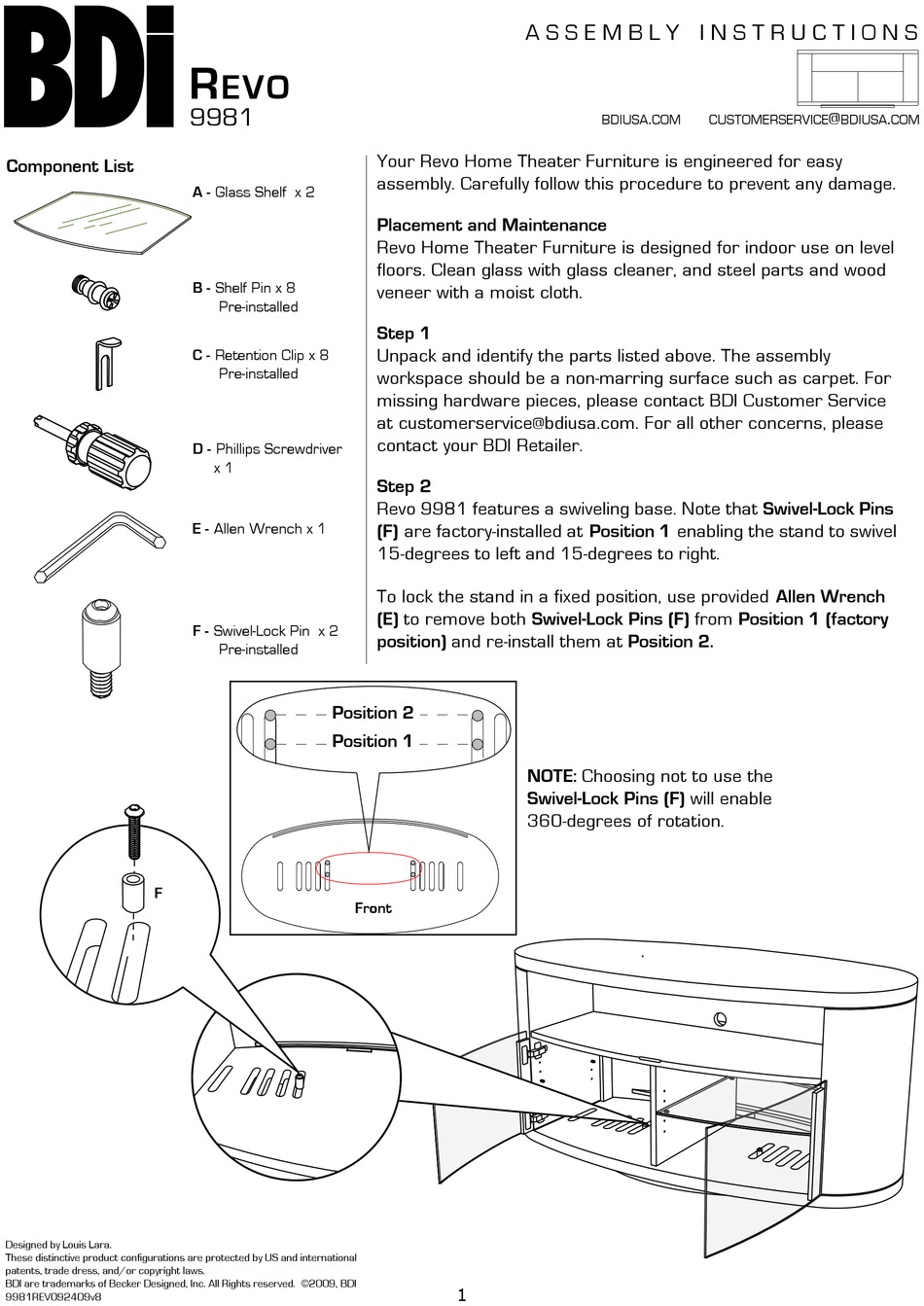

Becker BDi Revo 9981 Assembly Instructions

Component List
F
Designed by Louis Lara.
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc. All Rights reserved. ©2009, BDI
9981REV092409v8
R
evo
9981
A - Glass Shelf x 2
B - Shelf Pin x 8
Pre-installed
C - Retention Clip x 8
Pre-installed
D - Phillips Screwdriver
x 1
E - Allen Wrench x 1
F - Swivel-Lock Pin x 2
Pre-installed
Position 2
Position 1
Front
a s s e m b l y i n s t r u c t i o n s
Your Revo Home Theater Furniture is engineered for easy
assembly. Carefully follow this procedure to prevent any damage.
Placement and Maintenance
Revo Home Theater Furniture is designed for indoor use on level
floors. Clean glass with glass cleaner, and steel parts and wood
veneer with a moist cloth.
Step 1
Unpack and identify the parts listed above. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI Retailer.
Step 2
Revo 9981 features a swiveling base. Note that Swivel-Lock Pins
(F) are factory-installed at Position 1 enabling the stand to swivel
15-degrees to left and 15-degrees to right.
To lock the stand in a fixed position, use provided Allen Wrench
(E) to remove both Swivel-Lock Pins (F) from Position 1 (factory
position) and re-install them at Position 2.
NOTE: Choosing not to use the
Swivel-Lock Pins (F) will enable
360-degrees of rotation.
1
.
