Greenheck MS-1P Installation, Operation And Maintenance Manual

®
Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property damage!
Precautions and Warnings
To prevent injury and property damage, follow these
instructions. Failure to adhere to installation/operation
procedures and all applicable codes may result in
hazards as indicated by warning codes outlined below:
DANGER
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
This signal word is to limited to the most extreme
situations.
WARNING
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
This is the safety alert symbol. Read and
!
!
follow instructions carefully to avoid a
dangerous situation.
This symbol alerts the user to the presence
of "dangerous voltage: inside the product
that might cause harm or electrical shock.
®
Table of Contents
Installation
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Main Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . .2
Low Voltage Wiring . . . . . . . . . . . . . . . . . . . . . . . . . .2
Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operation
Overload Adjustment . . . . . . . . . . . . . . . . . . . . . . . .2
Operation Modes . . . . . . . . . . . . . . . . . . . . . . . . . . .2
LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . .2
Lockout Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
UL 508 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
File E258387
Product Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Our Commitment . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions
Equipment starts automatically. Lockout/tagout
before servicing.
As with all electrical products, read manual
thoroughly. Only qualified, expert personnel should
perform maintenance and installation. Contact the
nearest authorized service facility for examination,
repair, or adjustment. Do not disassemble or repair
unit unless described in this manual; death or
injury to electrical shock or fire hazard may result.
Specifications and manual data subject to change.
Consult factory for additional information.
! !
• Disconnect and lock out all power before installing
or servicing equipment.
• This equipment may require locking out multiple
power sources prior to service.
• Install and wire in accordance with all applicable
local and national electrical and construction codes.
FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY RESULT IN DEATH OR SERIOUS INJURY.
Document 476374

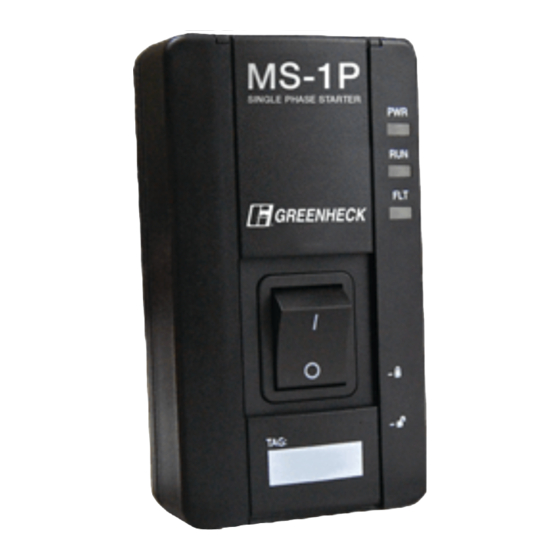

Motor Starter MS-1P
Single Phase Starter
DANGER
CAUTION
DANGER
HAZARDOUS VOLTAGE
WARNING
Motor Starter Single Phase
1
