Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
2
Single Panel
Motor Pack Contents
1. Actuator
2. Actuator Bracket
3. Actuator Arm Assembly
4. Connecting Links
5. Actuator Spring
All necessary hardware included
®
4
1
3
5
Spring return electric actuators for use
with WD-200 series damper
4
2
Double Panel
Electrical Guidelines
Electrical Guidelines
All wiring shall be done in accordance with the
National Electrical Code ANSI/NFPA-70 latest edition,
any local codes that may apply, and wiring diagrams
developed in compliance with the job or project
design and specifications.
Important!
Electrical input may be needed for this equipment.
This work should be performed by a qualified
electrician. Verify power before wiring actuator.
Greenheck is not responsible for any damage to, or
failure of the unit caused by incorrect field wiring. To
avoid causing death or serious bodily harm to building
occupants, follow all instructions carefully. Dampers
must close completely to preserve the integrity of the
fire smoke separation.
Document 463546

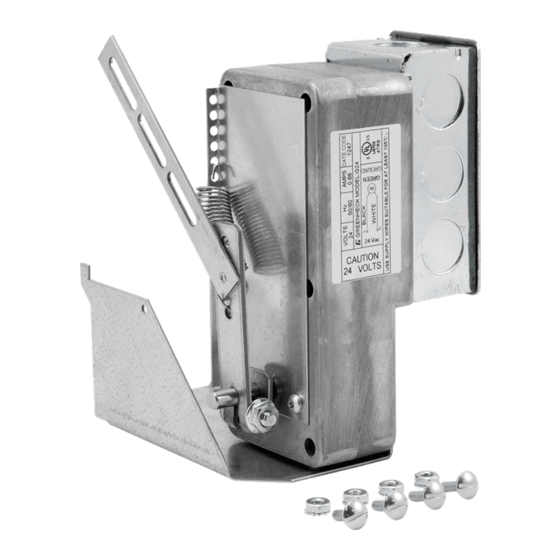

MP-210 Motor Pack
1
3
5
MP-210 Motor Pack
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Greenheck MP-210
Summary of Contents for Greenheck MP-210
- Page 1 This work should be performed by a qualified electrician. Verify power before wiring actuator. Greenheck is not responsible for any damage to, or failure of the unit caused by incorrect field wiring. To avoid causing death or serious bodily harm to building occupants, follow all instructions carefully.
- Page 2 Installation Instructions 1. The MP-210 motor pack is designed for installation 6. If the damper fails to open properly, check for one of on model WD-200 series backdraft dampers only. the following causes: 2. For single panel damper, insert tab of motor bracket •...
- Page 3 Single Phase Three Phase Actuator Wiring Diagrams Blue Blue 208/220/230/240V Dual Voltage Actuators 110/115/120V Dual Voltage Actuators Brown White Brown 24V Single Voltage Actuator 460V Single Voltage Actuator MP-210 Motor Pack ®...
- Page 4 As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Product warranties can be found online at Greenheck.com, either on the specific product page or in the literature section of the website at Greenheck.com/Resources/Library/Literature.
