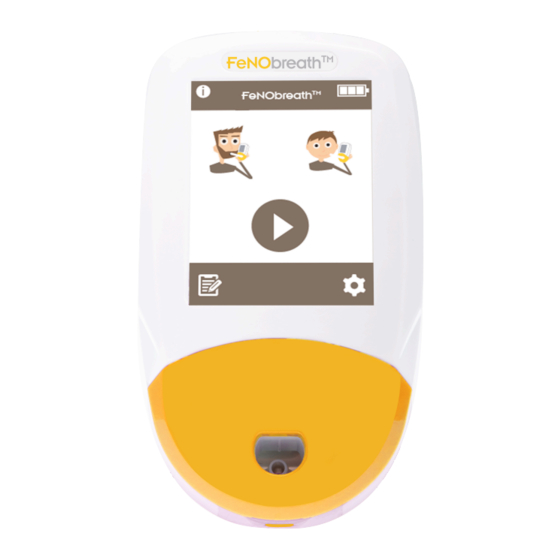

Bedfont FeNObreath Quick Start Manual
  1. Manuals
  2. Brands
  3. Bedfont Manuals
  4. Medical Equipment
  5. FENObreath
  6. Quick start manual

Bedfont FeNObreath Quick Start Manual

Calibag and quality check kit
Hide thumbs Also See for FeNObreath:

Advertisement

Quick Links

Download this manual
CaliBag
THIS KIT CONTAINS:
a
g
CaliBag
a) CaliAdapter x1
c) Scrubber Adapter
e) Bag Clamps x2
g) CaliBag® x1
i) NO Scrubber x1
FeNObreath
and Quality Check Kit Quick Start Guide
®
CONTENTS:
Important Information
How to Quality Check the FeNObreath™ without Gas
How to replace the NO Scrubber
How to Quality Check the FeNObreath™ with Gas
Quality Check Conversion Chart
How to Calibrate the FeNObreath™ with the CaliBag®
Disposal Information
c
b
®
d
e
h
Quality Check Bag
b) Bung x1
d) Blue Plugs x2
f) Bag Adapter
h) Quality Check Bag x1
Page 3
Page 4
Page 6
Page 7
Page 9
Page 10
Page 12
f
i

Advertisement

loading
Need help?

Need help?

Do you have a question about the FeNObreath and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bedfont FeNObreath

Summary of Contents for Bedfont FeNObreath

  • Page 1 Quality Check Kit Quick Start Guide ® CONTENTS: Important Information Page 3 How to Quality Check the FeNObreath™ without Gas Page 4 How to replace the NO Scrubber Page 6 How to Quality Check the FeNObreath™ with Gas Page 7...
  • Page 3 Before calibrating your FeNObreath™, it is important to read the following information: • Please ensure you charge the FeNObreath™ for 24 hours prior to use if it has not been used in a while. NOTE: The device will only charge whilst switched off.
  • Page 4 How to Quality Check the FeNObreath™ without Gas Attach the Scrubber Adapter to the Scrubber. Next, attach the Scrubber to the CaliAdapter. (CAUTION: NO scrubber contains potassium permanganate and should not be tampered with and should not be exposed to skin.)
  • Page 5 An hourglass will appear onscreen while the FeNObreath™ performs the Quality Check without Press the Ambient Test icon gas. A reading will appear onscreen; a successful Quality If the NO reading is >5ppb, please follow the next Check will display an NO reading ≤5ppb.
  • Page 6 FeNObreath™. skin.) Re-attach the back cover of the To secure the FeNObreath™ back cover, use the FeNObreath™ monitor. screwdriver to resecure the screw into place. PAGE 6...
  • Page 7 How to Quality Check the FeNObreath™ with Gas Attach the Bag Adapter to the rubber end of the Ensure both Bag Clamps on the Quality Check Bag CaliAdapter. are closed and remove a Blue Plug from one end. (NOTE: Make sure you are using the Quality Check Bag) Insert the Bag Adapter into the Quality Check Bag.
  • Page 8 When an hourglass appears, open the clamp while the FeNObreath™ performs the Quality Check with Press the Ambient Test icon gas. The device will automatically draw gas from the Quality Check Bag. A reading will appear onscreen; a successful If the NO reading is not within ±10%...
  • Page 9 Quality Check Bag. If the values fall within ±10% of the ppb value noted on the Quality Check Bag, this is a PASS and the FeNObreath™ is reading within specification. If the value reads outside ±10% FAIL of the ppb value noted on the Quality Check Bag, this is a and the FeNObreath™...
  • Page 10 Blue Plug. Insert the Bag Adapter into the CaliBag®. Insert the Bung into the bottom vent hole on the back of the FeNObreath™ and turn the device on. Press the Settings icon , followed by the Press the Calibration icon to begin.
  • Page 11 If the problem persists, please contact your local distributor. Ensure both Bag Clamps are closed before Remove the Bung from the FeNObreath™. removing the CaliBag® and remove all adapters from the FeNObreath™. PAGE 11...
  • Page 12 Disposal Information CaliAdapter The CaliAdapter can be pulled apart. The part in green is made of silicone and can be recycled in some places. Please follow local waste guidelines on how to recycle or dispose of silicone. The part in red cannot be recycled unfortunately and should be disposed of with normal waste.
  • Page 13 PAGE 13...
  • Page 14 Tel: +32(0) 82 22 30 20 Web: www.mgcdiagnostics.com © Bedfont® Scientific Limited 2022 Issue 1- March 2022, Part No: LAB836_MGC_USA Bedfont® Scientific Limited reserves the right to change or update his literature without prior notice. Registered in: England and Wales. Registered No: 1289798...
