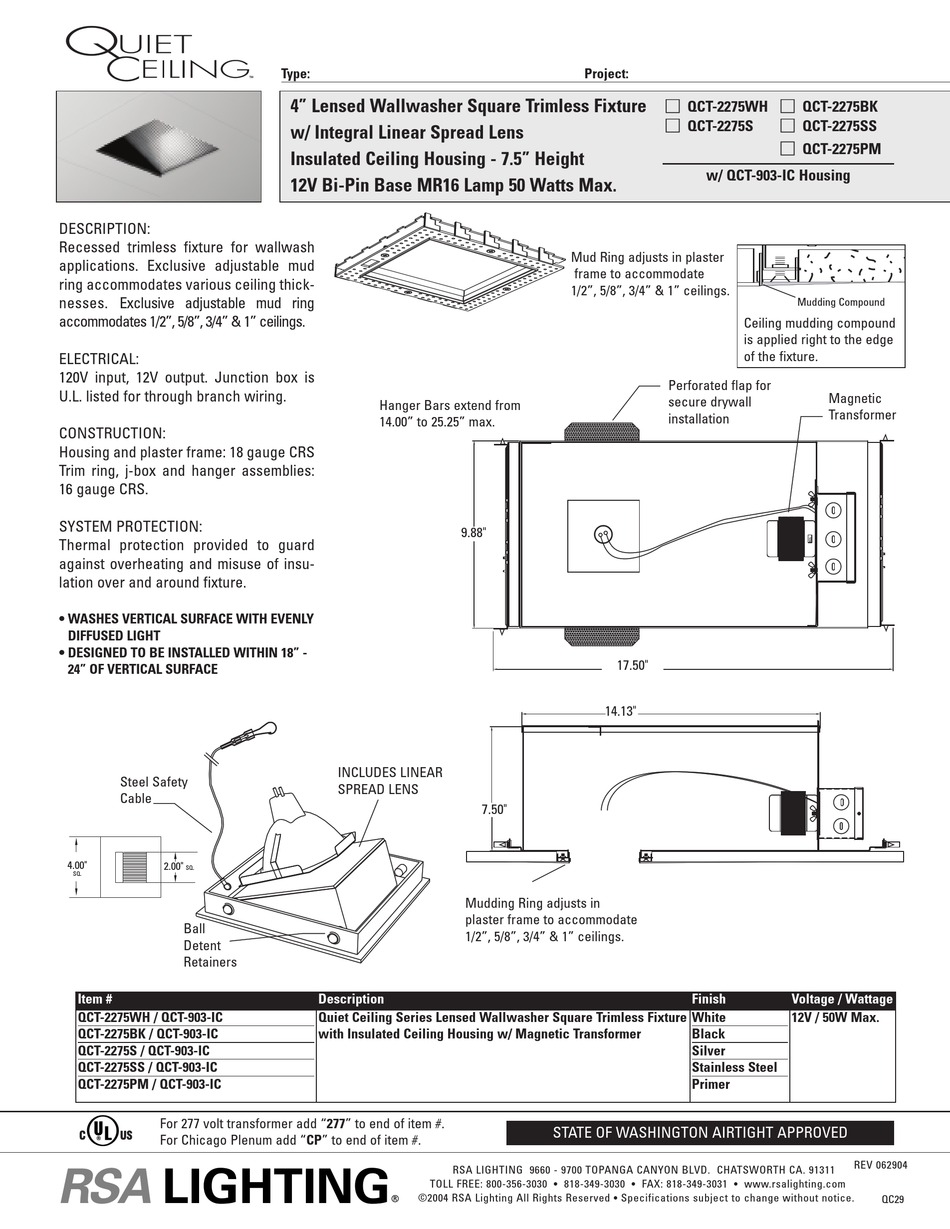

RSA Lighting QCT-2275BK Specification Sheet

DESCRIPTION:

Recessed trimless fixture for wallwash
applications. Exclusive adjustable mud
ring accommodates various ceiling thick-
nesses. Exclusive adjustable mud ring
accommodates 1/2", 5/8", 3/4" & 1" ceilings.

ELECTRICAL:

120V input, 12V output. Junction box is
U.L. listed for through branch wiring.

CONSTRUCTION:

Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.

SYSTEM PROTECTION:

Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture.
• WASHES VERTICAL SURFACE WITH EVENLY
DIFFUSED LIGHT
• DESIGNED TO BE INSTALLED WITHIN 18" -
24" OF VERTICAL SURFACE
Steel Safety
Cable
4.00"
2.00"
SQ.
SQ.
Ball
Detent
Retainers
Item #
QCT-2275WH / QCT-903-IC
QCT-2275BK / QCT-903-IC
QCT-2275S / QCT-903-IC
QCT-2275SS / QCT-903-IC
QCT-2275PM / QCT-903-IC
For 277 volt transformer add "277" to end of item #.
Suitable for Damp Location.
catalog number. For Chicago Plenum, add 'CP' to the end of the catalog number.
For Chicago Plenum add "CP" to end of item #.
Type:
4" Lensed Wallwasher Square Trimless Fixture
w/ Integral Linear Spread Lens
Insulated Ceiling Housing - 7.5" Height
12V Bi-Pin Base MR16 Lamp 50 Watts Max.
Hanger Bars extend from
14.00" to 25.25" max.
INCLUDES LINEAR
SPREAD LENS
Description
Quiet Ceiling Series Lensed Wallwasher Square Trimless Fixture
with Insulated Ceiling Housing w/ Magnetic Transformer
For 277 Volt Transformer, add '277' to the end of the
