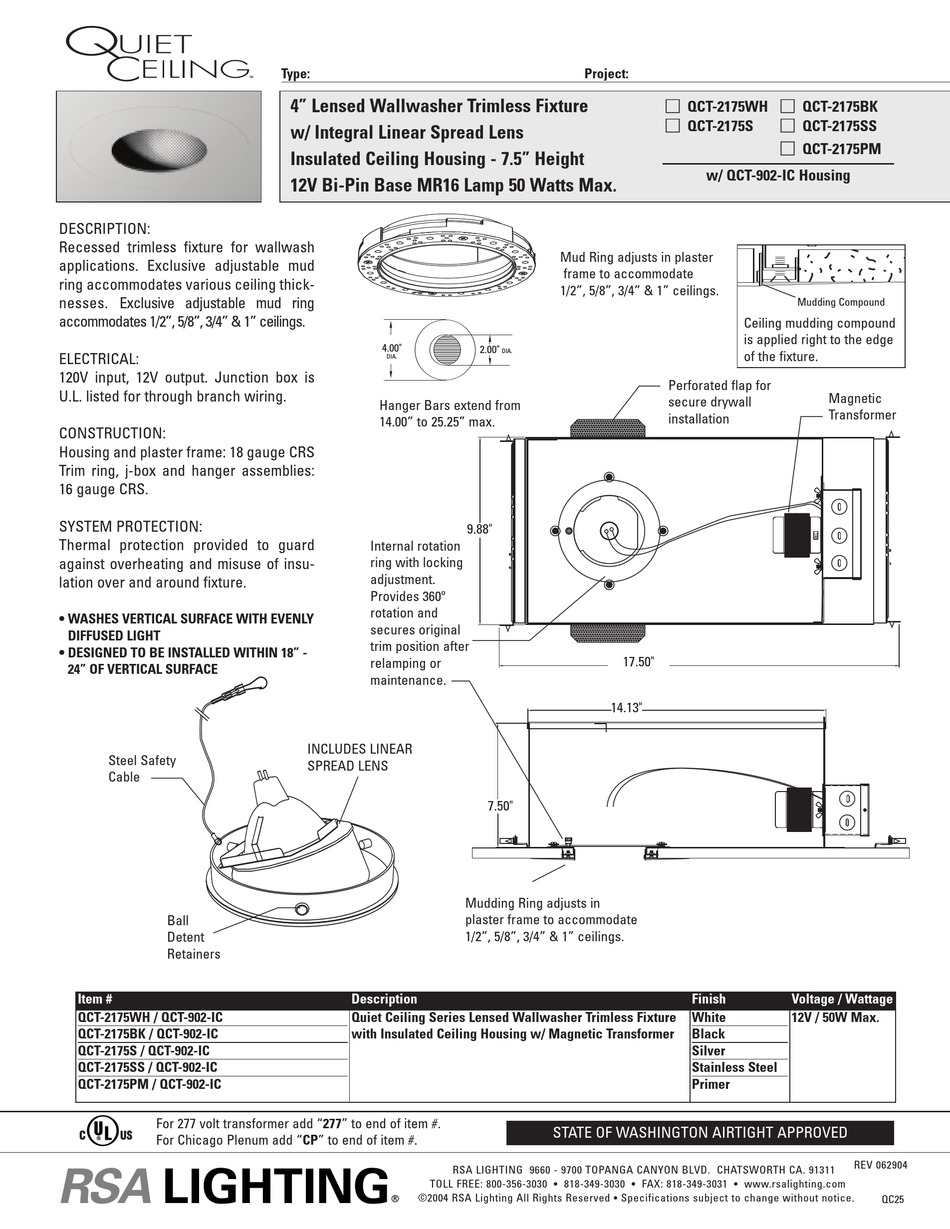

RSA Lighting QCT-2175BK Specification Sheet

DESCRIPTION:

Recessed trimless fixture for wallwash
applications. Exclusive adjustable mud
ring accommodates various ceiling thick-
nesses. Exclusive adjustable mud ring
accommodates 1/2", 5/8", 3/4" & 1" ceilings.

ELECTRICAL:

120V input, 12V output. Junction box is
U.L. listed for through branch wiring.

CONSTRUCTION:

Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.

SYSTEM PROTECTION:

Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture.
• WASHES VERTICAL SURFACE WITH EVENLY
DIFFUSED LIGHT
• DESIGNED TO BE INSTALLED WITHIN 18" -
24" OF VERTICAL SURFACE
Steel Safety
Cable
Ball
Detent
Retainers
Item #
QCT-2175WH / QCT-902-IC
QCT-2175BK / QCT-902-IC
QCT-2175S / QCT-902-IC
QCT-2175SS / QCT-902-IC
QCT-2175PM / QCT-902-IC
For 277 volt transformer add "277" to end of item #.
Suitable for Damp Location.
catalog number. For Chicago Plenum, add 'CP' to the end of the catalog number.
For Chicago Plenum add "CP" to end of item #.
Type:
4" Lensed Wallwasher Trimless Fixture
w/ Integral Linear Spread Lens
Insulated Ceiling Housing - 7.5" Height
12V Bi-Pin Base MR16 Lamp 50 Watts Max.
4.00"
DIA.
Hanger Bars extend from
14.00" to 25.25" max.
Internal rotation
ring with locking
adjustment.
Provides 360º
rotation and
secures original
trim position after
relamping or
maintenance.
INCLUDES LINEAR
SPREAD LENS
Description
Quiet Ceiling Series Lensed Wallwasher Trimless Fixture
with Insulated Ceiling Housing w/ Magnetic Transformer
For 277 Volt Transformer, add '277' to the end of the
RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2004 RSA Lighting All Rights Reserved • Specifications subject to change without notice.
Project:
Mud Ring adjusts in plaster
frame to accommodate
1/2", 5/8", 3/4" & 1" ceilings.
2.00"
DIA.
9.88"
17.50"
14.13"
7.50"
Mudding Ring adjusts in
plaster frame to accommodate
1/2", 5/8", 3/4" & 1" ceilings.
STATE OF WASHINGTON AIRTIGHT APPROVED
QCT-2175WH QCT-2175BK
QCT-2175S QCT-2175SS
QCT-2175PM
w/ QCT-902-IC Housing
Mudding Compound
Ceiling mudding compound
is applied right to the edge
of the fixture.
Perforated flap for
Magnetic
secure drywall
Transformer
installation
Finish Voltage / Wattage
White 12V / 50W Max.
Black
Silver
Stainless Steel
Primer
REV 062904
QC25
