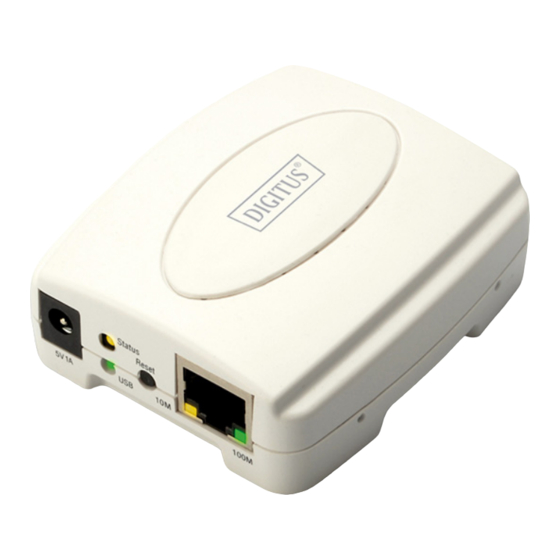

Usb 2.0 ethernet print server
Hide thumbs
Table of Contents

Advertisement

Quick Links

USB 2.0
ETHERNET PRINT SERVER
Quick Installation Guide
DN-13003-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-13003-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DN-13003-2

Summary of Contents for Digitus DN-13003-2

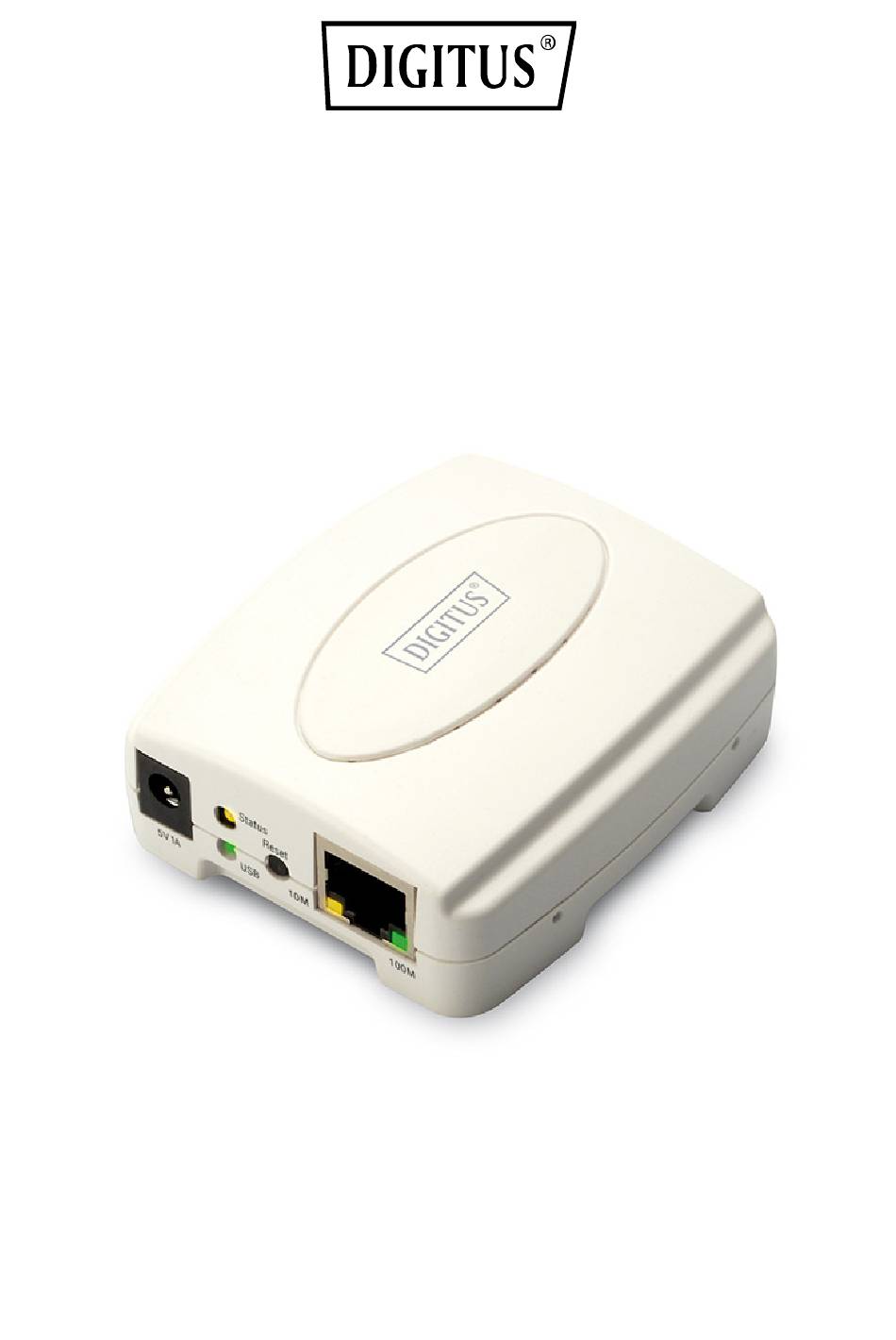

  • Page 1 USB 2.0 ETHERNET PRINT SERVER Quick Installation Guide DN-13003-2...

  • Page 2: Before You Start, You Should Prepare The Following Items

    Before you start, you should prepare the following items:  Windows 2000/XP/2003/Vista/7/8/10 computer with print server setup CD  One Printer(non-GDI/CAPT)  One Printer cable One 802.11b/g/n Access Point (optional)  Wired Network with Print Server: Print Server Printer Computer Computer Computer Factory Default Settings:...

  • Page 3: Software Installation

    Prepare Your Computer to Connect Print Server first: Please specify a proper IP address for your wireless adapter, e.g.192.168.0.101. Software Installation: 1. To enable network communication with print server, your computer must have a proper IP address, e.g. 192.168.0.101 (the print server’s default IP is 192.168.0.10) 2.
  • Page 4 Choose Setup Wizard to install the print server and configure the connected printer. Click Next, the wizard will automatically discover the print server.
  • Page 5 From the Select A Print Server screen, select the print server port that you want to configure and click Next.
  • Page 6 On the Change Settings screen, select No or Yes: Click No if you want the print server to keep using the default IP address and the default settings:  Password:  IP address: 192.168.0.10 Subnet Mask: 255.255.255.0  Click Yes if you want change settings or assign a static IP address to the print server: Note: The IP address of print server must be within the same subnet as your network adapter.
  • Page 7 In the setup wizard, select an already configured printer from the list, click Next, Next and then Finish to complete the installation. Select Add New Printer if the print server is connected to a printer that hasn’t been installed before and does not appear in the list.
  • Page 8 Click Add New Printer to launch Windows Add Printer Wizard. Click Next and select Local Printer, make sure the Automatically detect and install my Plug and Play printer check box is NOT checked. Then click Next.
  • Page 9 Make sure the Use the following port radio-button is clicked and select LPT1: (Recommended Printer Port) from the pull-down list. Then click Next. 10. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.
  • Page 10 11. If you already have the printer’s driver installed, you will be asked whether to keep it or to replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer. Then click Next. 12.
  • Page 11 14. From Windows system, go to start -> Printers and Faxes and highlight your newly installed printer. 15. Right-click, select Properties -> Ports and verify that the print server’s port appears.

  • Page 12: How To Create Print Server Port Manually

    16. Go to General; click Print Test Page to verify the configuration. 17. Done. Note: If you wish to install more print servers, start setup wizard from your Windows Start menu: start -> All Programs -> Network Print Server -> Standard TCP/IP Printer Port ->...
