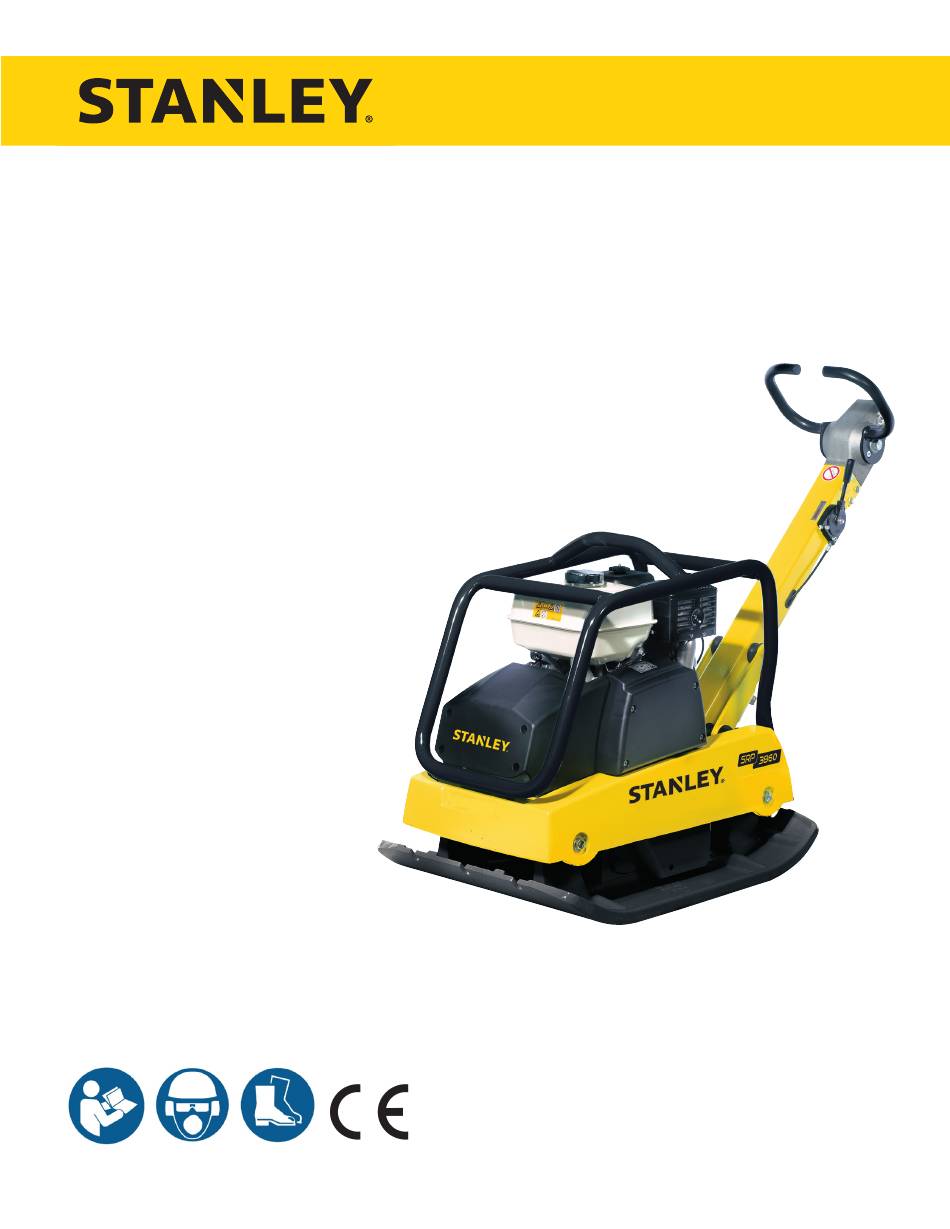

- Page 1 COMPACTION REVERSIBLE PLATE SRP 2240 SRP 3050 SRP 3860 USER MANUAL Safety, Operation and Maintenance © 2015 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 74922 9/2016 Ver 4...
-
Page 2: Declaration Of Conformity
Disposizioni speciali: Misurazioni Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
SAFETY SYMBOLS Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair ac- tions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 5: Forword
Also observe the corresponding rules and regulations valid in your country. Always comply with the safety provisions in your county and state. Stanley is not liable for the function of the machine when used in an improper manner and for other than the intend- ed purpose. -
Page 6: Safety
SAFETY This Stanley machine has been built according to the state of the Safety information contained in the operating and maintenance art in compliance with the pertinent rules. Nevertheless, these instructions machines can still constitute a hazard to persons and property if: The following terms and symbols are used in this operating •... - Page 7 SAFETY Machine control Do not adjust pressure relief valves. Operating devices which adjust themselves automatically when Drain hydraulic oil at operating temperature—caution risk of released in normal use, must not be locked. scalding! Check protective devices and brakes for proper functioning prior Collect discharging hydraulic oil and dispose of the same in an to operation.
-
Page 8: Technical Data
TECHNICAL DATA SRP 2240 (HONDA) SRP 3050 (HONDA) SRP 3860 (HONDA) 1. DIMENSIONS LENGTH L 1140 MM / 44.8 IN 1140 MM / 44.8 IN 1365 MM / 53.7 IN LENGTH L1 600 MM / 23.6 IN 700 MM / 27.56 IN 860 MM / 33.8 IN... - Page 9 TECHNICAL DATA SRP 2240 SRP 3050 SRP 3860 DRIVE VIA CENTRIFUGAL CLUTCH AND V-BELT SHIFT (FORWARD / REVERSE) HYDRAULIC 4. SPEED BASIC UNIT B1 0-25 M/MIN / 82 FPM 0-22 M/MIN / 72.18 FPM 0-26 M/MIN / 85.3 FPM BASIC UNIT B2 ---- 0-20 M/MIN / 65.62 FPM...
-
Page 10: Operation
OPERATION Description Operating control at the tow-bar These units are a reversible vibrating plate operating on the basis of the twin-shaft vibration system principle. The engine drives the exciter on the baseplate via a centrifugal clutch and a V-belt. The exciter produces the vibration re- quired for compaction as a result of the built-in imbalance. - Page 11 OPERATION Before Operation Adjusting / Locking the tow-bar Use personal protective equipment (in particular Adjusting the tow-bar hearing protectors and safety shoes). Risk of loss Danger of hearing! Observe the safety conditions. Observe the operation and maintenance instructions. Read the Engine operating instructions. Observe the Importants on safety, operation and mainte- nance contained in them.
- Page 12 OPERATION Engine Operation - Honda Starting the engine • Turn the engine switch (4) to the «ON» position. • Move the fuel valve lever (2) to the «ON» position. • Move the choke lever (3) to the «CLOSE» position. • Pull the starter grip (5) lightly until you feel resistance, then pull briskly in the direction of the arrow as shown above.
- Page 13 OPERATION Warm up Instructions Stopping the engine To stop the engine in an emergency, simply turn the engine switch to the «OFF» position. Important • Set the engine speed lever (1) to idle (MIN). • Allow the engine to run for 1-2 minutes in order to warm up.
- Page 14 OPERATION / TRANSPORT Operation Loading and Transportation Only use sufficiently strong and secure loading ramps when loading. Danger Check the contact points (frame, lifting rings) before use for damage and wear. Immediately re- place damaged parts. Secure the machine against rolling or slipping off and against tipping over.
-
Page 15: Transport
TRANSPORT Transportation Trolley During longer work breaks, e.g. at the end of the work day, do not place the machine on the trans- port trolley, this could compromise the stability of Danger the machine. Take care when riding over uneven or sloping floors. - Page 16 TRANSPORT • Using the towing bar, tilt the machine backwards until the machine is horizontally seated on the undercarriage. The device is ready to be moved. • After transport hook the undercarriage back into position by proceeding in reverse order. 16 ►...
-
Page 17: Maintenance
MAINTENANCE General Information – Before commencing work on any electrical equipment, disconnect the battery and cover it with insulating materials. Maintenance: – Do not exchange «PLUS» and «MINUS» poles on the battery. increased service life increased function – It is essential that short-circuits be prevented in cables reduced downtimes carrying current. - Page 18 [operating hours] 1. Engine SRP 2240 0.6 l / 20.2 Oz Engine oil First time after 20 h; SRP 3050 1.1 l / 37.2 Oz API SG-CE then every 100 h SAE 10W40 SRP 3860 1.1 l / 37.2 Oz 2.
- Page 19 MAINTENANCE Maintenance Work (Honda) Checking the engine oil level Only the maintenance work which has to be performed Immediately replace damaged seals. daily is included in the Operating Manual. Please refer Collect old oil and dispose of it in an envi- to the engine Operating Manual and to the maintenance ronment friendly manner.
- Page 20 MAINTENANCE – Paper air filter element: Clean the air filter - Blow compressed air [not exceeding 207 kPa (2.1 kgf/ cm,30 psi)] through the filter element (4) from the inside. Change the filter element: – Foam air filter element (5): –...
- Page 21 MAINTENANCE Maintenance work - Machine Tightening Torque Cleaning Torque Information Clean the machine thoroughly daily. For cleaning, do not use any flammable or aggressive materials. Attention When cleaning the machine with a pressure washer, do not spray the electrical components directly.
- Page 22 MAINTENANCE Screw Connections Checking the rubber buffers Check the rubber buffers (1) for tears and breaks, as well as for secure fit. If they are damaged, replace them imme- diately. With vibrating devices, it is important to intermittently check the screw connections for tightness. Pay attention to the tightening torque.
- Page 23 MAINTENANCE V-Belt: Tension / Condition - SRP 2240/3050/3860 V-Belt: Adjustment • Remove V-belt guard. • Check V-belt for tension and condition. • Tension if necessary: • Loosen set screws (1), do not unscrew. • Insert auxiliary tools (ø 6 mm) into bores (2) and (3). •...
- Page 24 MAINTENANCE Exciter: Oil Level / Oil Change • Fill-in new oil through the oil fill hole (1). See lubrication schedule for quantity and quality. Check / change exciter oil when its warm. The venting screw (3) must always first be un- screwed when checking the oil level or chang- Important ing the oil.
- Page 25 MAINTENANCE Filling and Bleeding the Circuit Hydraulic Hose Lines SRP 2240 / SRP 3050 SRP 3860 Serial No. Manufacturer/Month and year of manufacture Max. operating pressure The function of hydraulic hose lines must be tested at regular intervals (minimum once a year) by an expert (with a knowledge of hydraulics).
-
Page 26: Troubleshooting
• If the cause of the fault cannot be located or remedied, an • Only qualified and authorised persons may carry out authorised Stanley Service Center should be contacted. repair work (mechanics specialising in construction and • Always first check the most likely causes (fuses, agricultural machinery). - Page 27 NOTES SFP 2240 / 3050 / 3860 User Manual ◄ 27...
- Page 28 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyhydraulics.com...
