- Page 1 B-COCKPiT BC351 使用说明书 B-COCKPiT Operating Manual BC351 Model Version: EN-20210901 Shenzhen Digitech Co., Ltd. www.riding-evolved.com...
- Page 2 B-COCKPiT BC351 使用说明书 Important Information Regarding Safe Operations: 1. Turn OFF the main power of the E-bike before plug / unplug the HMI, or it may lead to permanent electrical damage to the HMI and the E-bike. 2. Do Not overtighten the bolts when installing the HMI to the E-bike, a torque of 0.2N.m is sufficient to secure the HMI to the handlebar, overtightening the bolts...
-
Page 3: Table Of Contents
B-COCKPiT BC351 使用说明书 Content Product Description and Specifications .............. 4 Parts Description ..................4 DTK3 Button ..................4 Dimensions and Features ................5 Functional Data ..................6 Technical Data ..................6 Installation ....................7 ... -
Page 4: Product Description And Specifications

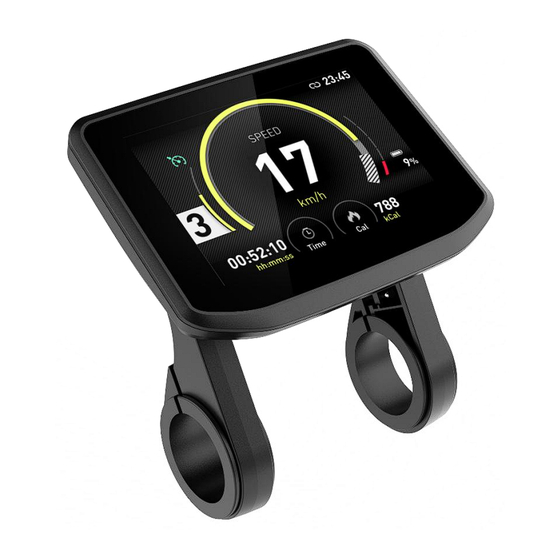

B-COCKPiT BC351 使用说明书 Product Description and Specifications Parts Description Description Note 3.5 inch Screen Bottom shell M3*6 screws 2pcs Bracket Two side Bracket’s screws M3*12 2pcs USB rubber DTK3 Button Description Note Long press power on “Power”button “+”... -
Page 5: Dimensions And Features
B-COCKPiT BC351 使用说明书 Dimensions and Features Display Dimensions DTK3 Dimensions Shenzhen Digitech Co., Ltd. www.riding-evolved.com... -
Page 6: Functional Data
B-COCKPiT BC351 使用说明书 Functional Data Parameters Value Note Name Real Time Speed 0.0 ~ 99.9 km/h Real Time Power 0 ~ 999 W Battery Indicate 0 ~ 100 % Assist Level 0 ~ N Customized 0 ~ 99999 km Trip 0 ~ 9999.9 km... -
Page 7: Installation
B-COCKPiT BC351 使用说明书 Installation Install the BC351 Unit 1. Use 2pcs M3 Hex Socket Screws 1-1 and 1-2 to secure the mounting bracket to the handle bar. Tightening torque: 0.2N.m. Do Not Overtighten or it may cause damage to the HMI 2. -
Page 8: Install The Button Unit
B-COCKPiT BC351 使用说明书 Install the Button Unit 1. Use M3 Hex Socket Screw 3 to secure the mounting bracket to the left side of the handle bar. Tightening torque: 0.2N.m. Do Not Overtighten or it may cause damage to the button. -
Page 9: System Operations
B-COCKPiT BC351 使用说明书 System Operations Initial Operations The main interface Long press "Power" button to enter the main interface. Connect to Bikewise Pro App 1. Simultaneously long press ‘+’ and ‘-’ to enter setting page. 2. Use ‘+’ and ‘-’ to navigate to the “Bluetooth Connection” line and press ‘Power’ button. -
Page 10: Dtk3 Button Functions
B-COCKPiT BC351 使用说明书 DTK3 Button Functions 1. “+” button: Short Press Long Press Long Press & Hold Meter Interface Assist level Up E-bike Lights On/Off ---- Menu Interface Cursor Up / Increase ---- ---- “-” button: Short Press Long Press Long Press &... -
Page 11: Meter Interface
B-COCKPiT BC351 使用说明书 Meter Interface Riding interface： Use ‘Power’ button to switch riding data. Shenzhen Digitech Co., Ltd. www.riding-evolved.com... -
Page 12: Menu Interface
B-COCKPiT BC351 使用说明书 Menu Interface In the display interface, long press the "+" and "-" button to enter or exit the menu interface. To ensure user safety, the menu interface can only be entered when the Ebike is stationary (speed is 0);... -
Page 13: Error Code
B-COCKPiT BC351 使用说明书 Error code Error-Code Table (example only, customer dependent) Error-Code Description Current or Mos Error Throttle Error Motor Phase Error Motor Hall Error Brake Error Communication Error Error-Code Description Brake Error Over Voltage Protection Motor Phase Error... -
Page 14: Maintenance And Service
B-COCKPiT BC351 使用说明书 Maintenance and Service Maintenance and Cleaning Do not immerse the unit in water or clean it with pressurized water. Clean the unit using a soft cloth dampened only with water. Do not use any detergents.
