Manual
BC281 Model
Version: CH-20220223

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC281 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigiTech BC281

Summary of Contents for DigiTech BC281

  • Page 1 Manual BC281 Model Version: CH-20220223...

  • Page 2: Table Of Contents

    BC281 Manual Shenzhen Digitech Co., Ltd. Contents  Product Description and Specifications .............. 3  Parts Description ..................3  Function introduction ................... 4  Features ....................4  Buttons Functions ..................5  Operation ....................5  Power on/off ..................5 ...

  • Page 3: Product Description And Specifications

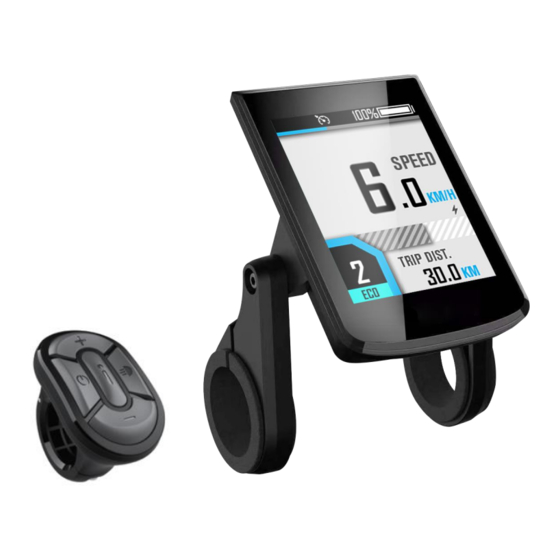

    BC281 Manual Shenzhen Digitech Co., Ltd.  Product Description and Specifications DTK3 Button BC281 Display  Parts Description Display Dimensions Shenzhen Digitech Co., Ltd. www.riding-evolved.com...

  • Page 4: Function Introduction

    Shenzhen Digitech Co., Ltd. DTK3 Button Dimensions  Function introduction  Features BC281 supports the common riding parameters and statistical results, as well as some useful functions:  Real-time speed, Max speed, Average speed  Real-time motor power  Battery indicator ...

  • Page 5: Buttons Functions

    BC281 Manual Shenzhen Digitech Co., Ltd.  Buttons Functions Functions Buttons Name 1、 Power on/off [Power] 2、 Setting confirmation 1、 Parameter adjustment 2、 Menu operation 1、Parameter adjustment 2、Push mode on/off 3、Menu operation  Operation  Power on/off Long press the [Power] button to power on, the boot interface will be shown for about 1.5s, followed by the...

  • Page 6: Riding Interface

    BC281 Manual Shenzhen Digitech Co., Ltd.  Riding interface BC281 provides various styles of riding interface, which can be switched by clicking the [Power] button: 1. Simple mode Battery indicator Light indicator Real-time speed Speed unit Real-time motor power Assist level Trip distance 2.

  • Page 7: Assist Level Switch

    BC281 Manual Shenzhen Digitech Co., Ltd.  Assist level switch Click [+] or [-] to switch assist levels; Press and hold the [-] button to enter the push mode, and release to exit.  Error Code Common error codes are as follows(Only for reference, depending on other electrical parts of the...

  • Page 8: User Menu

    BC281 Manual Shenzhen Digitech Co., Ltd.  User Menu To enter the user menu, please long press the [+] and [-] combination buttons for 2s on the riding interface when static. To ensure the user’s safety, it can only be accessed when static (when the speed is 0). In this interface, you...
  • Page 9 BC281 Manual Shenzhen Digitech Co., Ltd. [Note] The trip time, max speed, average speed, and calories burnt will be also cleared by this operation. 2、 Setup （1） Auto Headlight Select Auto Headlight and click the [Power] button to enter the submenu, you can enable or disable the automatic headlight function: Shenzhen Digitech Co., Ltd.
  • Page 10 BC281 Manual Shenzhen Digitech Co., Ltd. （2） Set Unit Select Set Unit and click the [Power] button to enter the submenu, you can select the unit: （3） Set Brightness Select Set Brightness and click the [Power] button to enter the submenu, you can use the [+] or [-] button to adjust the backlight brightness level in the range of 0-5: Shenzhen Digitech Co., Ltd.
  • Page 11 BC281 Manual Shenzhen Digitech Co., Ltd. （4） Set Auto Power-Off Select Auto Power-Off and click the [Power] button to enter the submenu. You can use the [+] or [-] button to adjust the automatically power off time in the range of 0-99, where 0 means not to automatically power off: 3、...

  • Page 12: Connect To App (Only For Bluetooth Version)

    BC281 Manual Shenzhen Digitech Co., Ltd.  Connect to APP (only for Bluetooth version) 1、 Scan the following QR code to download the APP: 2、 Select Connect to APP in the user menu to get the Bluetooth connection QR code, and scan it with the APP to connect: Shenzhen Digitech Co., Ltd.

  • Page 13: Attentions

    BC281 Manual Shenzhen Digitech Co., Ltd.  Attentions 1. Be sure to power of first before connecting and disconnecting the cable, or the display will be totally damaged; 2. When fix the display to the ebike, please ensure that the torque of the is about 0.2Nm...
