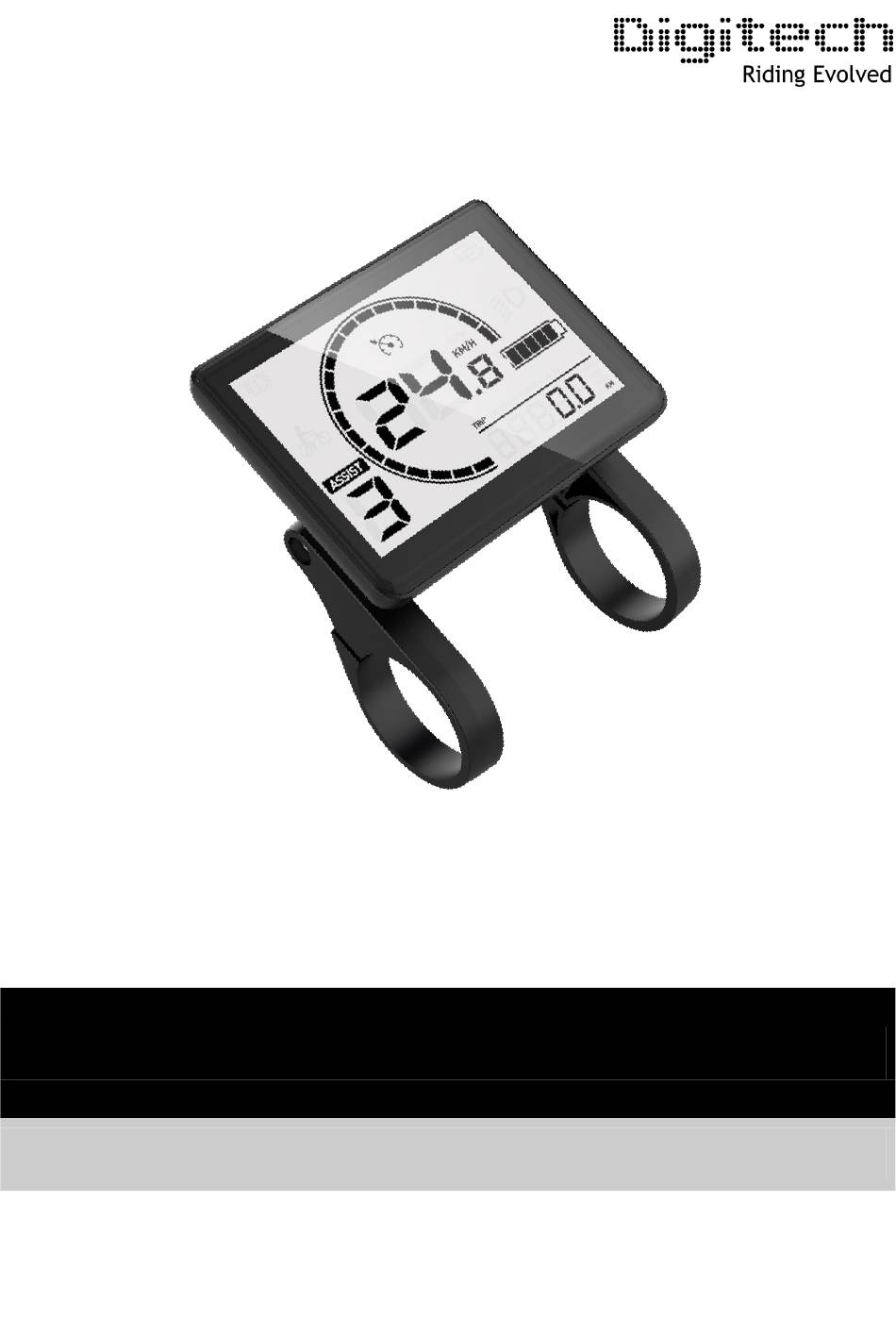

- Page 1 Manual L401 Version: EN-V1.2...
-
Page 2: Table Of Contents
Shenzhen Digitech Co., Ltd. L401 Manual Contents Product Description and Specifications .............. 3 Parts Description ..................3 Function introduction ................... 4 Features ....................4 Buttons Functions ..................5 Operation ....................5 Power on/off ..................5 ... -
Page 3: Product Description And Specifications

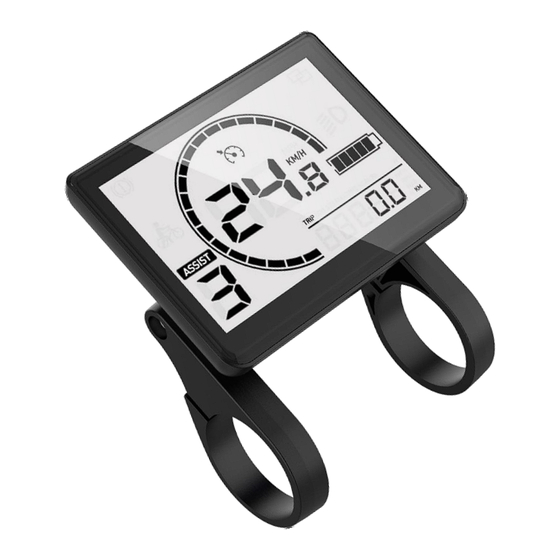

Shenzhen Digitech Co., Ltd. L401 Manual Product Description and Specifications L401 Display DTK3 Button Parts Description Display Dimensions Shenzhen Digitech Co., Ltd. www.riding-evolved.com... -
Page 4: Function Introduction
L401 Manual DTK3 Button Dimensions Function introduction Features L401 supports the common riding parameters and statistical results, as well as some useful functions: Real-time speed, Max speed, Average speed Real-time motor power Battery indicator Assistant level ... -
Page 5: Buttons Functions
Shenzhen Digitech Co., Ltd. L401 Manual Buttons Functions Functions Buttons Name 1、 Power on/off [Power] 2、Setting confirmation 1、 Parameter adjustment 2、 Light turn on/off 3、Menu operation 1、Parameter adjustment 2、Push mode on/off 3、Menu operation Operation Power on/off Long press the [Power] button to power on, the boot interface will be shown for about 2s, followed by the... -
Page 6: Riding Interface
Shenzhen Digitech Co., Ltd. L401 Manual Riding interface Bluetooth connection indicator Error indicator Cruise Speed ring Light indicator Pedestrian mode Riding data Battery indicator Assist Multi-function display area The speed ring is displayed according to the current speed and the speed limit value, and when the speed reaches the speed limit, the full ring is displayed. -
Page 7: Clear Trip Data
Shenzhen Digitech Co., Ltd. L401 Manual Clear trip data Long press [Power] & [+] button to clear trip data. [Note] The trip time, max speed, average speed, and calories burnt will be also cleared by this operation. Shenzhen Digitech Co., Ltd. -
Page 8: Error Code
Shenzhen Digitech Co., Ltd. L401 Manual Error Code Common error codes are as follows(Only for reference, depending on other electrical parts of the ebike): KM5S protocol Error Code Error Code Meaning Current or Mos Error Throttle Error Motor Phase Error... -
Page 9: User Menu
Shenzhen Digitech Co., Ltd. L401 Manual User Menu To enter the user menu, please long press the [+] & [-] combination buttons for 2s on the riding interface when static. To ensure the user’s safety, it can only be accessed when static (when the speed is 0). In this interface, you... - Page 10 Shenzhen Digitech Co., Ltd. L401 Manual 4、 Backlight Brightness After entering the interface, the display area flashes to display the current backlight brightness, you can click the [+] / [-] button to adjust, the adjustment range is 1-5, click the [Power] button to confirm and go to the next menu interface.
-
Page 11: Advanced Menu
Shenzhen Digitech Co., Ltd. L401 Manual Advanced Menu The L401 provides ebike manufacturers with an advanced menu that can be used to make adjustments to the ebike configuration and the following parameters: Wheel Size Battery Voltage Sensor ... -
Page 12: Battery Voltage
Shenzhen Digitech Co., Ltd. L401 Manual Battery Voltage In this interface, a prompt of "BAT" appears at the bottom right, and the battery voltage value in the data area flashes: Click the [+] / [-] button to adjust the value of auto battery voltage, the adjustment range is36V/48V, click the [Power] button to confirm and go to the next menu interface. -
Page 13: Reset
Shenzhen Digitech Co., Ltd. L401 Manual Reset In this interface, a prompt of "RESET" appears at the bottom right, and the data area flashes to display ‘y‘ or ‘n’: Click the [+] / [-] button to switch ‘y’ or ‘n’, click the [Power] button to confirm and go to the next menu interface. -
Page 14: Attentions
Shenzhen Digitech Co., Ltd. L401 Manual Attentions 1. Be sure to power of first before connecting and disconnecting the cable, or the display will be totally damaged; 2. When fix the display to the ebike, please ensure that the torque of the screwdriver is about 0.5N.M (DO NOT EXCEED 0.6N.M), or it will cause damages to the handle;...
