La Crosse Technology LTV-THP1-T1 Setup Manual

La Crosse Technology LTV-THP1-T1 Setup Manual

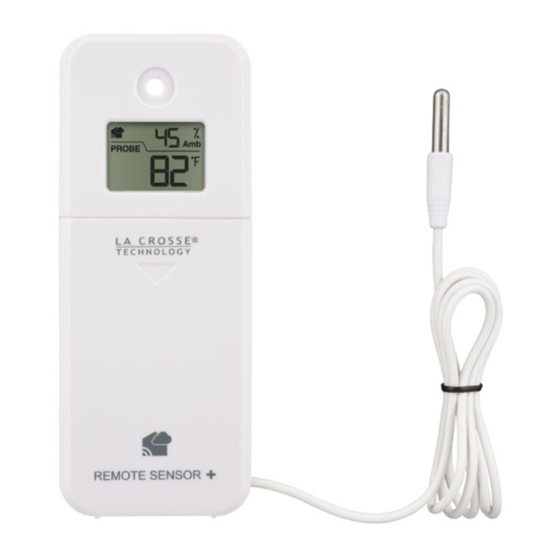

Temperature/humidity sensor with temperature probe

Advertisement

Quick Links

Temperature/Humidity Sensor
with Temperature Probe
SET UP GUIDE
MODEL: LTV-THP1-T1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTV-THP1-T1 and is the answer not in the manual?

Questions and answers

Summary of Contents for La Crosse Technology LTV-THP1-T1

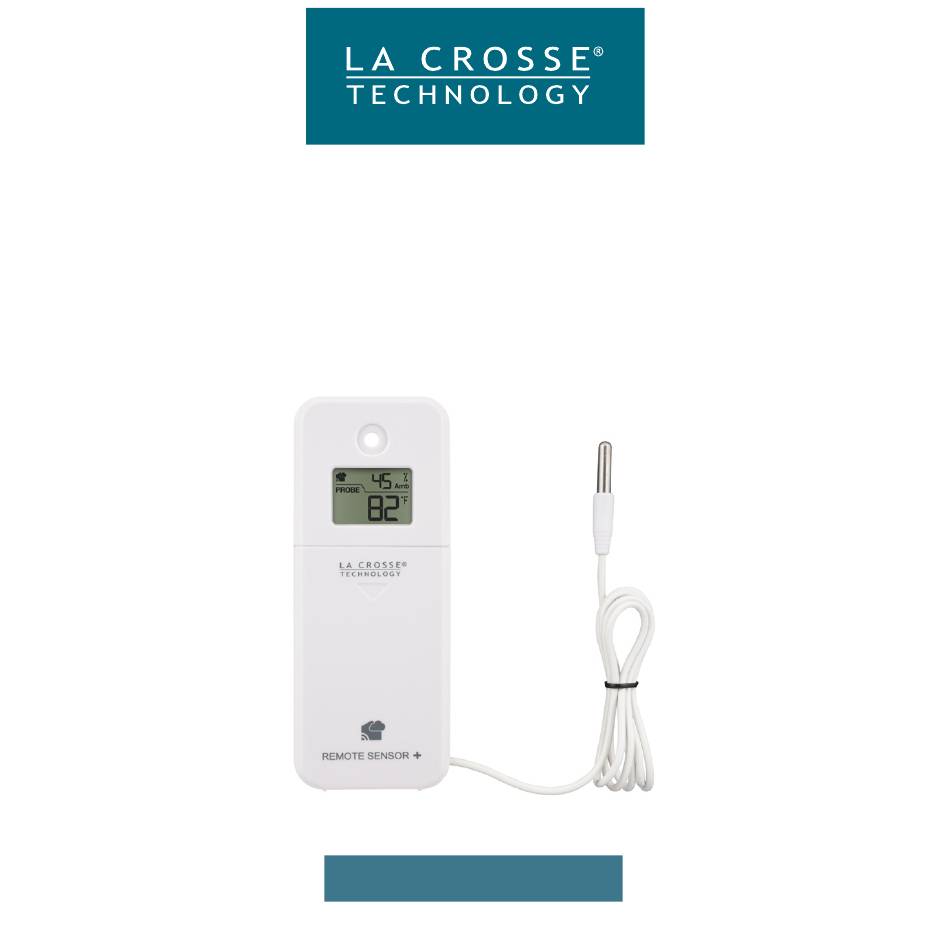

  • Page 1 Temperature/Humidity Sensor with Temperature Probe SET UP GUIDE MODEL: LTV-THP1-T1...
  • Page 2 Power Up Slide the Battery Insert the Temperature Cover down to remove. Probe into the sensor port. Extend the probe wire through the Insert 2 - AA batteries into the sensor guides straight down or to either according to polarity markings. Replace side of the sensor.
  • Page 3 The LTV-THP1 sensor can be used by itself or with the included Probe Wire. When the Probe Wire is attached the temperature/humidity readings from the sensor will alternate on the top. When using the sensor only, the Temperature and Humidity will both show. The La Crosse View Icon Solid: Sensor has power Flashes Twice: Sending a signal...
  • Page 4 Positioning • Insert a screw though the mounting hole at the top of the LTV-THP1 sensor, to securely mount the sensor to desired surface. To hang with a nail; utilizing the nail-head hanging hole on back of the LTV-THP1 sensor. •...
  • Page 5 Connect to the La Crosse View™ App If you already own a La Crosse View connected display, you can use your La Crosse View App to monitor your Sensor and Probe Wire readings right on your phone. Open your La Crosse View app. On the Main Menu, scroll to ADD/EDIT and select DEVICES.
  • Page 6 Specifications Sensor (LTV-THP1) Temperature Range: -40°F to 140°F (-40°C to 60°C) Humidity Range: 10% to 99% RH Transmission Range: Over 400 feet (121 meters) in open air RF 433MHz Update Interval: About every 51 seconds Power: 2-AA, IEC, LR6 batteries (not included) Battery Life: Over 24 months Dimensions:...
  • Page 7 Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram. Warranty & Patents La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S.
  • Page 8 Care & Maintenance When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury. •...
