La Crosse Technology LTV-WR1 Manual

La Crosse Technology LTV-WR1 Manual

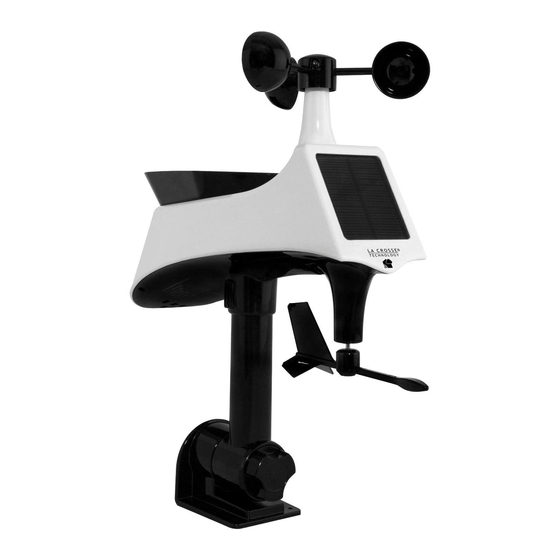

Multi-sensor, wind direction, wind speed, rain

Advertisement

Quick Links

Wind Direction | Wind Speed | Rain

Features

• Wind direction
• Wind speed
• Rainfall
• Solar Panel for extended
battery life
• Replaceable directional vane
• Replaceable wind cups
• Self-emptying rain sensor

Power

1- Insert 3-AA batteries
according to polarity.
2- The red LED light will flash
while transmitting.
Note: The solar panel will
extend the life of the batteries
but the sensor cannot operate
on solar power alone.
Multi-sensor
Model: LTV-WR1
DC: 083117
Wind
cups
Batteries
3-AA
Rain funnel
(collector)
Directional
Vane
Red LED
Light
Drain holes for
multi sensor
Drain vents for rain
sensor
Reset
button
RESET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTV-WR1 and is the answer not in the manual?

Questions and answers

Steve wilkins
March 29, 2025

My LTVWR1 continues to stop transmitting. I have cleaned the battery contacts and have installed multiple batteries. The red light no longer appears upon battery install. There is moisture in the solar panel. This is my second unit and I have a third if needed but I would like this one to work if possible

1 comments:
Mr. Anderson
March 29, 2025

The La Crosse Technology LTV-WR1 may stop transmitting due to radio frequency interference, battery issues, or improper installation. To fix this:

1. Check Batteries: Ensure batteries are fresh and correctly installed.
2. Avoid Interference: Reorient or relocate the receiving antenna; increase the distance between the sensor and other electronic devices.
3. Change Power Source: Plug the receiver into a different electrical circuit.
4. Mount Properly: Use the bubble level and mounting bracket for correct positioning.
5. Maintain Clear Signal Path: Ensure no obstacles block the wireless signal (range is over 400 feet in open air).

If problems persist, consult a technician.

This answer is automatically generated

Robert c Herr
March 17, 2025

I need replacement wind directional indicator

1 comments:
Mr. Anderson
March 17, 2025

You can obtain a replacement wind directional indicator for the La Crosse Technology LTV-WR1 by purchasing the WVTX231RW Wind Vane, which is listed as a separate part.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for La Crosse Technology LTV-WR1

  • Page 1 • Wind direction • Wind speed • Rainfall • Solar Panel for extended battery life • Replaceable directional vane • Replaceable wind cups • Self-emptying rain sensor Model: LTV-WR1 DC: 083117 Power Directional 1- Insert 3-AA batteries Vane according to polarity. Wind...
  • Page 2 Mounting • Mount in an open area clear for 50 feet in all directions. Bubble • Mount with the solar panel facing south, so the wind direction is Level correct. See the letters N, S, E W, embossed on the top of the sensor. •...
  • Page 3 Sensor ID Standalone or Connected station: Your sensor has a bar code and ID number. This ID number locks your sensor into your station. Follow the instructions in your station manual to delete the sensor ID for sensor replacement. La Crosse View™ compatible system: The sensor ID and bar code are recognized by the La Crosse View™...
  • Page 4 • Dimensions: 13.62” W x 13” H x 5.16” D in (345.95 x 330.20 x 131.06 mm) Warranty and Support La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
