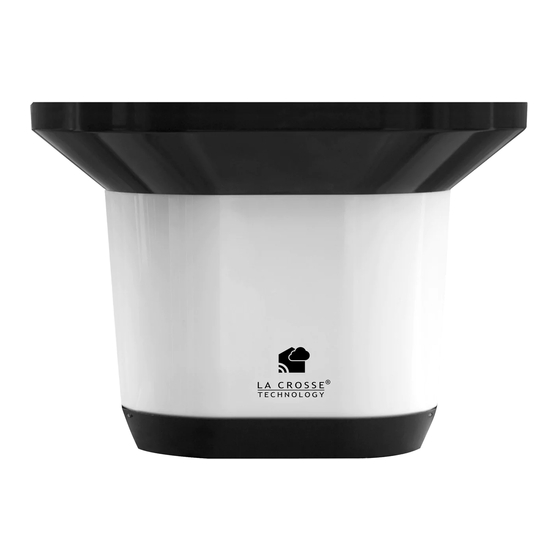

La Crosse Technology LTV-R2 Quick Start Manual

Rain sensor

Power

Insert 2- AA batteries into the rain sensor according to polarity.

1. Flip open both locking tabs on your rain sensor and lift off the funnel portion.

2. Pull up on the battery cover and remove.

3. Install 2-AA batteries according to polarity. Reposition the battery cover over the battery compartment,

and firmly push down to lock it back into place

5. Remove cardboard and any tape around the rocker before use. These were used to protect the

sensor from unwanted movement during shipping.

6. Place the funnel portion back over the sensor and re-secure the locking tabs.

Battery Cover

Locking Tab

Rain Sensor

Model: LTV-R2

DC: 090517

Funnel

Remove piece under

rocker of rain sensor

Table of Contents

Do you have a question about the LTV-R2 and is the answer not in the manual?

Page 1 Rain Sensor Model: LTV-R2 DC: 090517 Power Insert 2- AA batteries into the rain sensor according to polarity. 1. Flip open both locking tabs on your rain sensor and lift off the funnel portion. 2. Pull up on the battery cover and remove.
Page 2 LTV-R2 Rain Sensor Lets identify the parts of the rain sensor. Battery Cover Top (Funnel) Rocker Locking Tabs Mounting Screw (3 total) Bubble Level Position Rain Sensor • Mount your rain sensor in an open area for a more accurate rain count.
Page 3 Clean Rain Sensor 1. Press the Locking Tabs on each end and lift off the funnel. 2. Gently remove debris or insects inside the rain sensor. 3. Clear debris from drain vents. 4. Clear debris from the rain funnel itself. 5.
Page 4 • Dimensions: 7.14” L x 3.43” W x 4.94” H (18.13cm L x 8.72cm W x 12.54cm H) Warranty and Support La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support...
