La Crosse Technology LTV-R1 Manual

Rain sensor

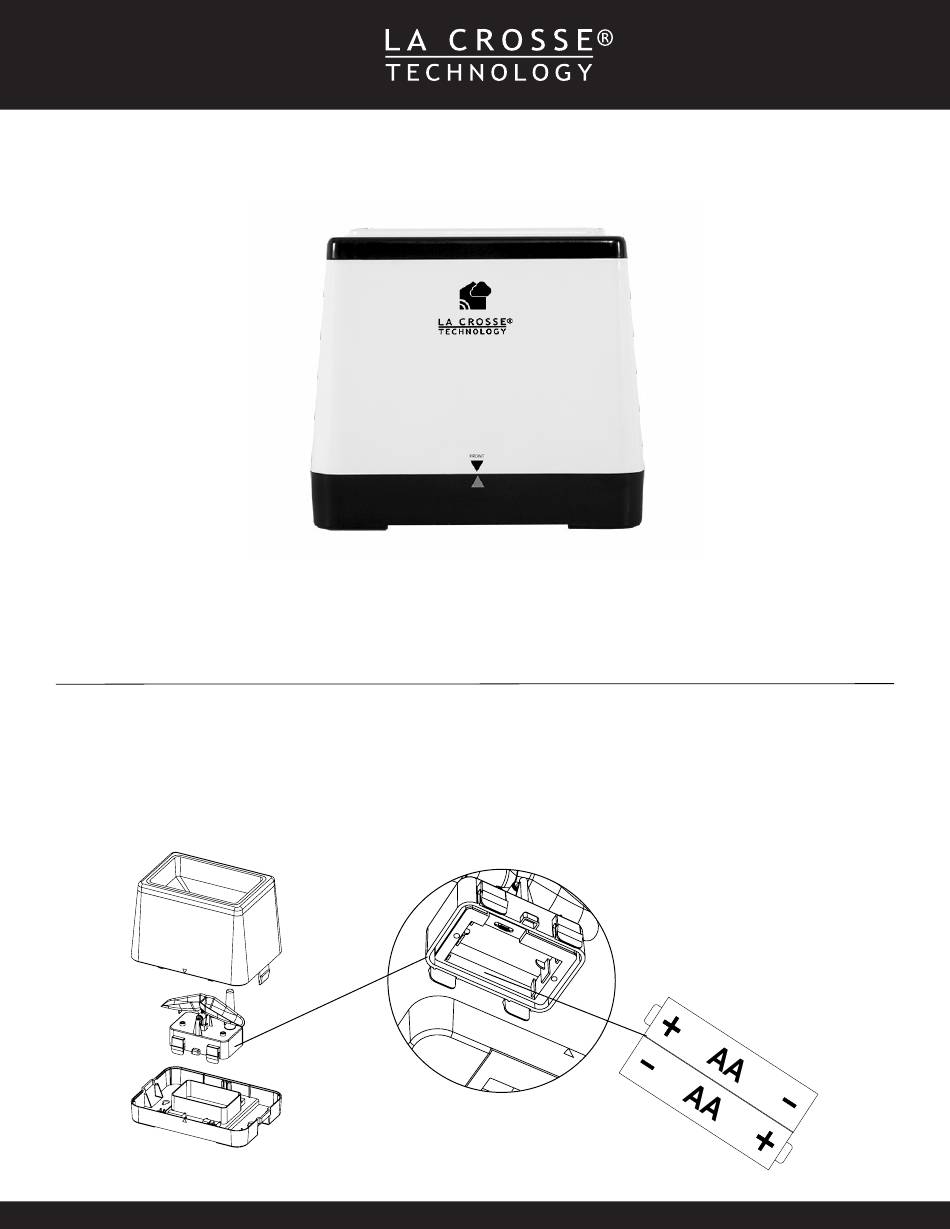

Power

Insert 2- AA batteries into the rain sensor according to polarity.

• Press the Funnel Release Tabs on each end and lift off the funnel.

• Pinch the four Battery Release Tabs under the rocker to access battery compartment.

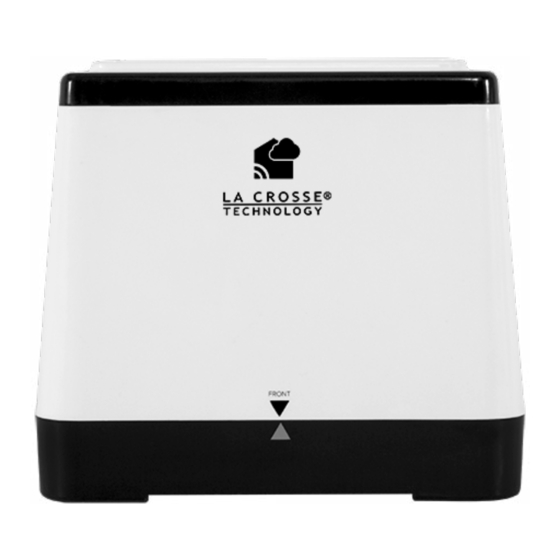

Rain Sensor

Model: LTV-R1

DC: 082217

Important: Remove the twist tie

from below the rocker. The twist tie

secured the rocker for shipment

Table of Contents

Do you have a question about the LTV-R1 and is the answer not in the manual?

Page 1 Rain Sensor Model: LTV-R1 DC: 082217 Power Insert 2- AA batteries into the rain sensor according to polarity. • Press the Funnel Release Tabs on each end and lift off the funnel. • Pinch the four Battery Release Tabs under the rocker to access battery compartment.
Page 2 LTV-R1 Rain Sensor Lets identify the parts of the rain sensor. Funnel Funnel Release Tabs Base Rocker Important: Remove the twist tie from below the rocker. The twist tie secured the rocker for shipment Alignment Tab Battery Release Tabs Alignment Tab: An extra piece of plastic used for repositioning the battery compartment correctly.
Page 3 Clean Rain Sensor 1. Press the Funnel Release Tabs on each end and lift off the funnel. 2. Gently remove debris or insects inside the rain sensor. 3. Clear debris from drain vents. 4. Clear debris from the rain funnel itself. 5.
Page 4 • Dimensions: 6.00” L x 5.10” W x 4.21” H (152 x 130 x 107mm) Warranty and Support La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support...
