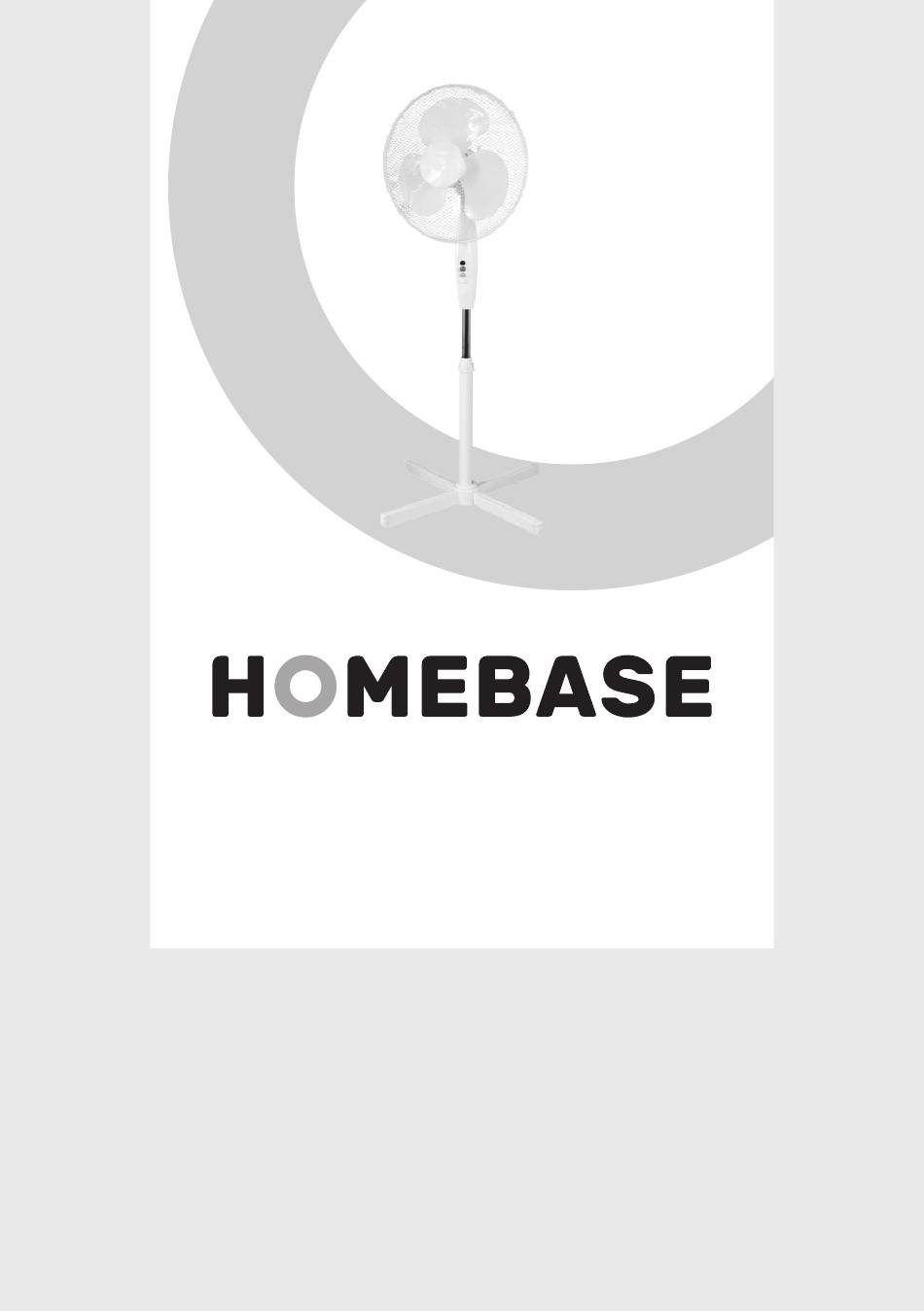

- Page 1 16" PEDESTAL FAN INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Safety Warnings
SAFETY WARNINGS Read this information carefully before installation or use of this product. Keep this manual with the product for future reference. 1. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe... - Page 3 16. Never use the fan without the guard. Do not use the fan if the fan blade is damaged or cracked. 17. Do not leave hair, tissue, tablecloths, clothes or curtains near any opening on the fan, they could be sucked into the fan and taken within the internal moving parts, which could cause injury or damage.
-
Page 4: Technical Specification
TECHNICAL SPECIFICATION MODEL FS40-3 ARTICLE NO. 647418 WATTAGE WEIGHT 2.2kg VOLTAGE 220-240V~ FREQUENCY 50-60Hz TECHINCAL INFORMATION Information to identify the model(s) to which the information relates to Description Symbol Value Unit Model identifier(s): 647418 Maximum fan flow 40,59 /min rate... -
Page 5: Icon Explanation
ICON EXPLANATION This appliance conforms to relevant directives of The European Community. The product complies with the applicable UK directives. Class II appliance. This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 6: Product Structure
PRODUCT STRUCTURE Motor [12] [02] Oscillation knob [01] [09] Inner pipe [08] Screw [11] [10] Decorative cap [15] Height adjustment [07] control collar [03] Switch rotate ring Locking nut [06] Blade cap Back safety grille [04] Fan blade Front safety grille Bar A [05] Bar B... -
Page 7: Operation
FAN GRILLE ASSEMBLY Remove locking nut (08) by turning it anti-clockwise from the motor shaft. Place the back safety grille (10) into position. The slots on the grille should align with the plastic rod on the front motor cover. If this is done correctly, the safety grille’s carry handle will be at the top. - Page 8 Tilt Control The airflow can be adjusted upward or downward by tilting the fan head as desired. CLEANING Always unplug the fan before cleaning. Use a soft damp cloth with a mild soap to clean the fan. DO NOT use abrasive cleaners. DO NOT immerse the fan in water and never allow water to drop into the motor component.
-
Page 9: Plug Replacement
PLUG REPLACEMENT Fuse approved to BS 1362 Connect Blue to N (Neutral) Brown L (Live) Outer sleeve Cable grip firmly clamped If you need to replace the fitted plug, then follow the instructions below. WARNING! The wires in the mains lead are coloured in accordance with the following code: Blue –... - Page 10 The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase.
