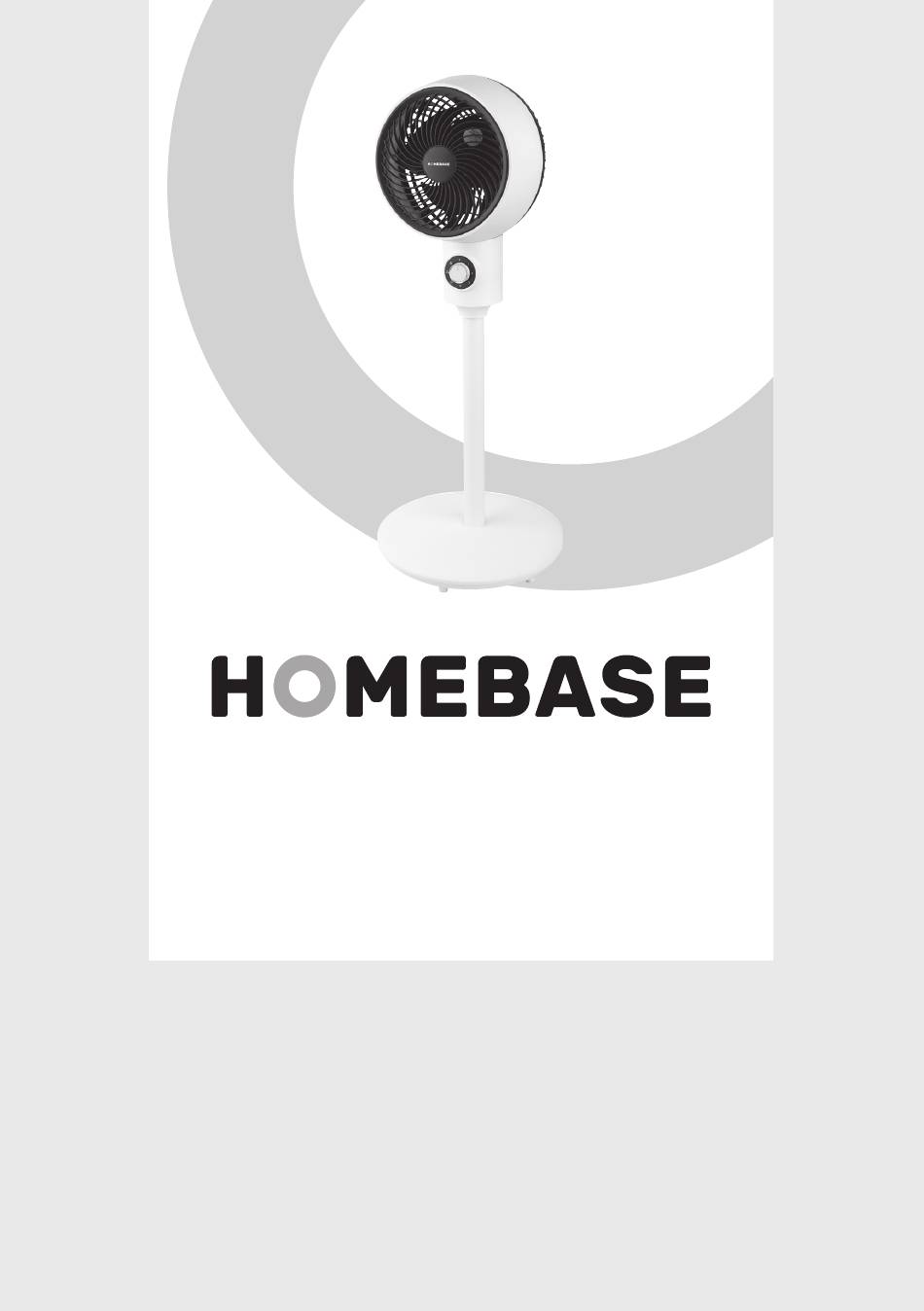

- Page 1 13.4” CIRCULATOR PEDESTAL FAN INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Safety Warnings
SAFETY WARNINGS Read this information carefully before installation or use of this product. Keep this manual with the product for future reference. 1. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe... - Page 3 before removing the guard. 15. Do not insert your fingers in the opening of the guard. 16. Never use the fan without guard. Do not use the fan if the fan blade is damaged or cracked. 17. Do not leave hair, tissue, tablecloths, clothes or curtains near all opening of the fan, they could be sucked into the fan and taken within the internal moving parts that could cause injury or damage.
-
Page 4: Technical Specification
VOLTAGE 220-240V~ FREQUENCY 50-60Hz TECHINCAL INFORMATION Information to identify the model(s) to which the information relates to Description Symbol Value Unit Model identifier(s): SAC-10 Maximum fan flow 19,1 /min rate Fan power input 34,3 Service value 0,56 /min)/W Standby power... -
Page 5: Icon Explanation
ICON EXPLANATION This appliance conforms to relevant directives of The European Community. The product complies with the applicable UK directives. Class II appliance. This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 6: Product Structure

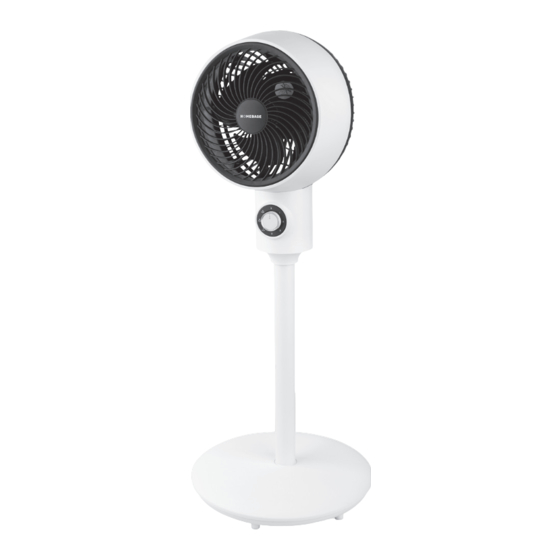

PRODUCT STRUCTURE 1 - Air outlet 2 - Switch knob 3 - Body 4 - Steel pipe 5 - Base ACCESSORIES 1 x Cap 1 x Seven-character screw... -
Page 7: Operation
ASSEMBLY 1. Tighten stand tube to stand base with seven-character screw and cap. 2. Unscrew the screw B by turning clockwise from the body, then put the body on top of stand tube, tighten the screw B by turning counter clockwise. -
Page 8: Plug Replacement
PLUG REPLACEMENT Fuse approved to BS 1362 Connect Blue to N (Neutral) Brown L (Live) Outer sleeve firmly clamped Cable grip If you need to replace the fitted plug, then follow the instructions below. WARNING! The wires in the mains lead are coloured in accordance with the following code: Blue –... - Page 9 Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase. We will offer you a free repair of the item where this is possible, or a replacement or a refund.
