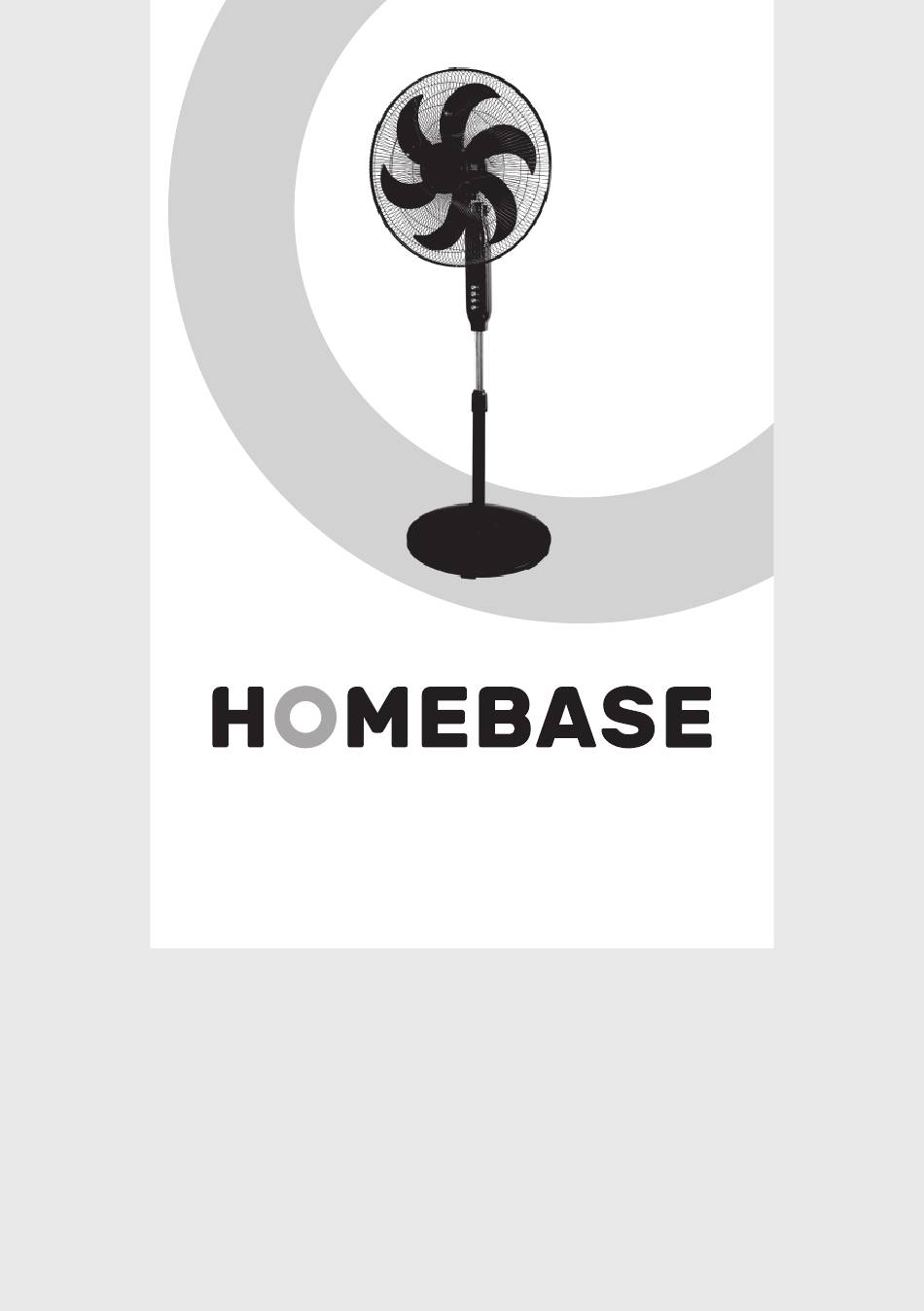

- Page 1 18" PEDESTAL FAN INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Safety Warnings
SAFETY WARNINGS Read this information carefully before installation or use of this product. Keep this manual with the product for future reference. 1. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe... - Page 3 supply before removing the guard. 16. Never use the fan without the guard. Do not use the fan if the fan blade is damaged or cracked. 17. Do not leave hair, tissue, tablecloths, clothes or curtains near any opening on the fan, they could be sucked into the fan and taken within the internal moving parts, which could cause injury or damage.
-
Page 4: Technical Specification
220-240V~ FREQUENCY 50-60Hz TECHINCAL INFORMATION Information to identify the model(s) to which the information relates to Description Symbol Value Unit Model identifier(s): 647422 Maximum fan flow /min rate Fan power input Service value /min)/W Standby power consumption Fan sound power... -
Page 5: Icon Explanation
ICON EXPLANATION This appliance conforms to relevant directives of The European Community. The product complies with the applicable UK directives. Class II appliance. This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 6: Product Structure
PRODUCT STRUCTURE Front Grille Safety screw Blade Cap Blade Plastic Grille Nut Rear Grille Motor shaft Motor Front plastic housing Back Plastic Housing Control Panel Set screw Power cord Inner pipe Height Adjustment Control Collar Outer Pipe Plate L Style Screw Base Cover Gravity Block ASSEMBLY... - Page 7 desired height and tighten the height adjustment control collar (16). Remove the plastic grille nut (06) by rotating it anti-clockwise from the motor shaft (08). Place the rear grille (07) into position. If this is done correctly, the hole which is use for safety screw of the grille should be at the bottom.
-
Page 8: Operation
OPERATION Tilt Control The airflow can be adjusted upward or downward by tilting the fan head as desired. OPERATION VIA APPLIANCE Wind mode: Natural, sleep Wind speed: Low, middle, high 1-7H timing: 1-7 hours Press the ON/SPEED button to start the fan. Press this button repeatedly to select the desired fan speed: Low, medium or high. - Page 9 CLEANING Always unplug the fan before cleaning. Use a soft damp cloth with a mild soap to clean the fan. DO NOT use abrasive cleaners. DO NOT immerse the fan in water and never allow water to drop into the motor component. DO NOT use petrol, thinner or other chemicals to clean the fan.
-
Page 10: Plug Replacement
PLUG REPLACEMENT Fuse approved to BS 1362 Connect Blue to N (Neutral) Brown L (Live) Outer sleeve Cable grip firmly clamped If you need to replace the fitted plug, then follow the instructions below. WARNING! The wires in the mains lead are coloured in accordance with the following code: Blue –... - Page 11 The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase.
