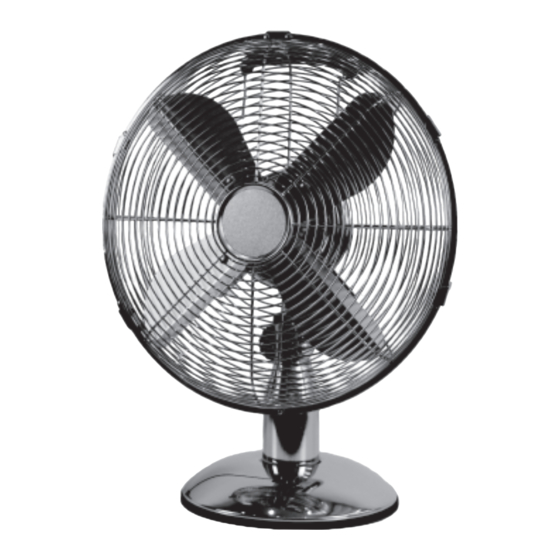

- Page 1 12" CHROME EFFECT DESK FAN INSTRUCTION MANUAL IMPORTANT: Please read these instructions before using the product and retain for future use. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Safety Warnings
SAFETY WARNINGS Read this information carefully before installation or use of this product. Keep this manual with the product for future reference. 1. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe... - Page 3 before removing the guard. 16. Never use the fan without the guard. Do not use the fan if the fan blade is damaged or cracked. 17. Do not leave hair, tissue, tablecloths, clothes or curtains near any opening on the fan, they could be sucked into the fan and taken within the internal moving parts, witch could cause injury or damage.
-
Page 4: Technical Specification
TECHNICAL SPECIFICATION MODEL FT-30MC ARTICLE NO. 647420 WATTAGE WEIGHT 2.7kg VOLTAGE 220-240V~ FREQUENCY 50-60Hz TECHINCAL INFORMATION Information to identify the model(s) to which the information relates to Description Symbol Value Unit Model identifier(s): 647420 Maximum fan flow 37,28 /min rate... -
Page 5: Icon Explanation
ICON EXPLANATION This appliance conforms to relevant directives of The European Community. The product complies with the applicable UK directives. This marking indicates that this product should not be disposed with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 6: Product Structure
PRODUCT STRUCTURE Front grille Fan blade Rear grille Motor Oscillation knob Control switch Tube Screw Base Base locking screw Safety screw and nut Screw Post NOTE: The illustration above Pivot knob shows the motor housing Neck retaining screw without the fan head. On the Motor housing fan model you purchased, the Small adjustment knob... -
Page 7: Operation
FAN GRILLE ASSEMBLY Remove 4 pcs screw (12) by turning it anti-clockwise from the motor (4). Attach the rear grille (3) onto the motor (4) with four screws (12). Install the fan blade (2) onto the motor by tightening the blade screw. Make sure the blade screw is tight- ened onto the groove. - Page 8 CLEANING Always unplug the fan before cleaning. Use a soft cloth, moistened with a mild soap to clean fan. DO NOT use abrasive cleaners. DO NOT immerse fan in water and never allow water to dip into the motor component. DO NOT use petrol, thinner or other chemicals to clean the fan.
-
Page 9: Plug Replacement
PLUG REPLACEMENT Earth Fuse (Green/Yellow) Neutral Live (Blue) (Brown) If you need to replace the fitted plug, then follow the instructions below. WARNING! The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown - Live Green/Yellow - Earth As the colour of the wire in the mains lead of this appliance... - Page 10 The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 2 years of the date of purchase.
