Spitzer LIGHTING BRD Series Installation Manual

BRD SERIES
DOME-TOP ROUND BOLLARD

PRODUCT PARAMETER

INPUT VOLTAGE 120 - 277V
DISTRIBUTION 180˚ / 360˚
WORKING TEMP. -31˚F ⁓ 122˚F

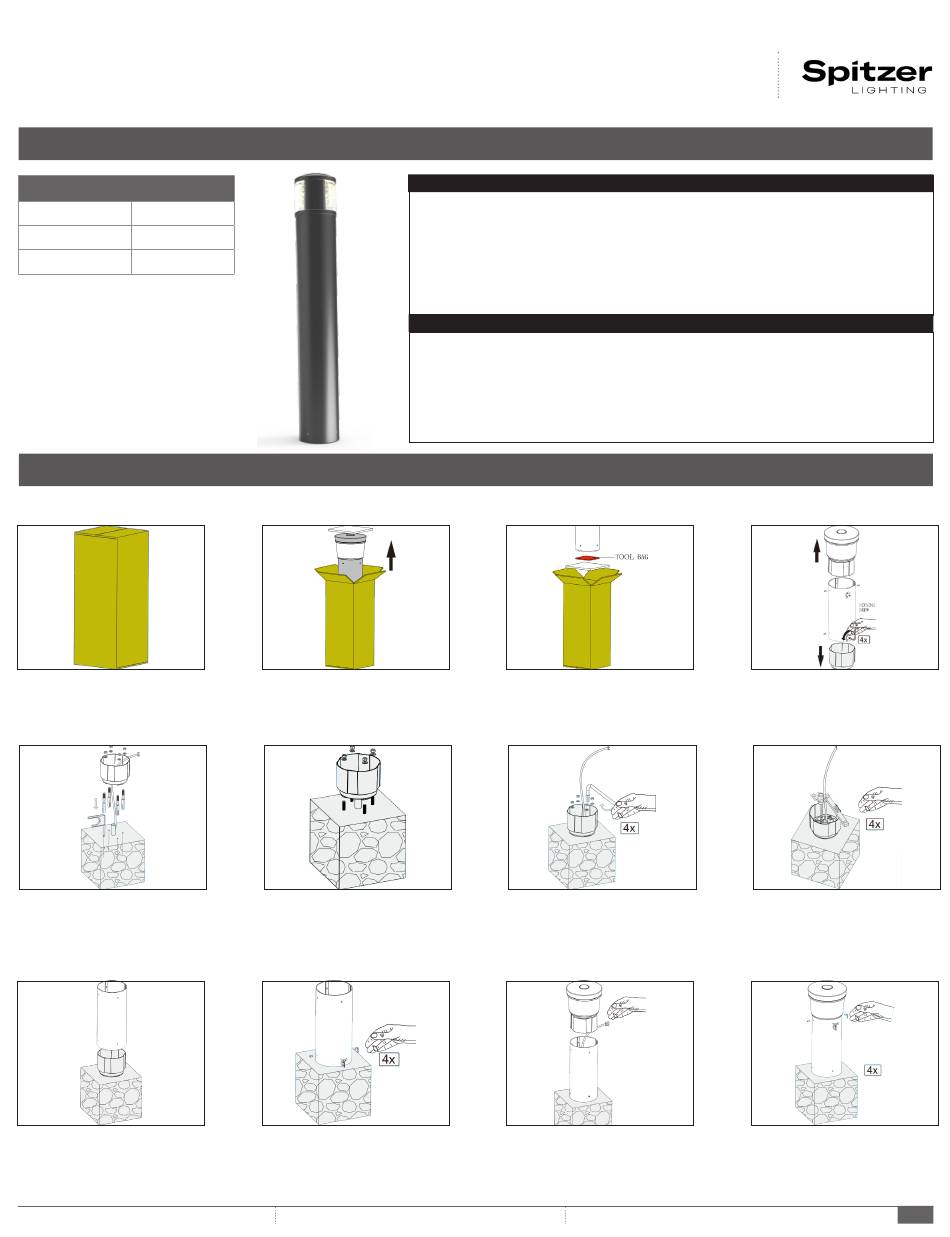

4PCS BOLT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
STEP 1
Check the packaging.
STEP 5
Put the expansion screws into the ground.
STEP 9
Insert the bollard onto the base.
www.spitzerlighting.com
I N S T A L L A T I O N M A N U A L
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform any operations while
this unit is powered on. The electrical system you want to connect the device to must be grounded. Read the instructions before using
or powering this device. The safety instructions must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make sure that the current and voltage are compatible
with this device. We highly recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any
means for the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage that may
or may not be caused. We reserve the right to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously manufactured and without notice. These
instructions do not cover all details of variations in equipment, nor do they provide every possible contingency to be met. Turn off /
unplug power when installing or service device.
• Read carefully before installing fixture. Retain for future reference.
• Failure to follow instructions may result in serious injury or death
• Upon receipt the fixture, throughly inspect for any freight damage which should be brought to the attention of the delivery carrier.
Compare the catalog description listed on the package slip with the fixture label on the housing to assure you have received material.
• This fixture must be wired in accordance with the international electrical code and applicable local codes and ordinances. Proper
grounding is required to insure personal safety. Carefully observe the correct grounding procedure under installation section.
STEP 2
Unpack the contents.
STEP 6
Connect expansion screws and base, put
anchor into 4pcs hole of base.
STEP 10
Tighten the screws in clockwise by L
wrench.
702 Interchange Blvd., Newark, DE 19711

SAFETY INFORMATION

PRE - INSTALLATION

STEP 3
Take out the red accessories.
STEP 7
Use by L wrench tighten the anchor with
base by 4 set nuts and gasket.
STEP 11
Go through the wire from ground into
bollard and connect the light head wire.
Specification is subject to change without notice
STEP 4
Use the L wrench loosen the screws to
remove the lamp head and installation
base.
STEP 8
Adjusting 4pcs level screws to make sure
the base in horizontally by L wrench.
STEP 12
Tighten the screws to fix the lamp head by
L wrench.
