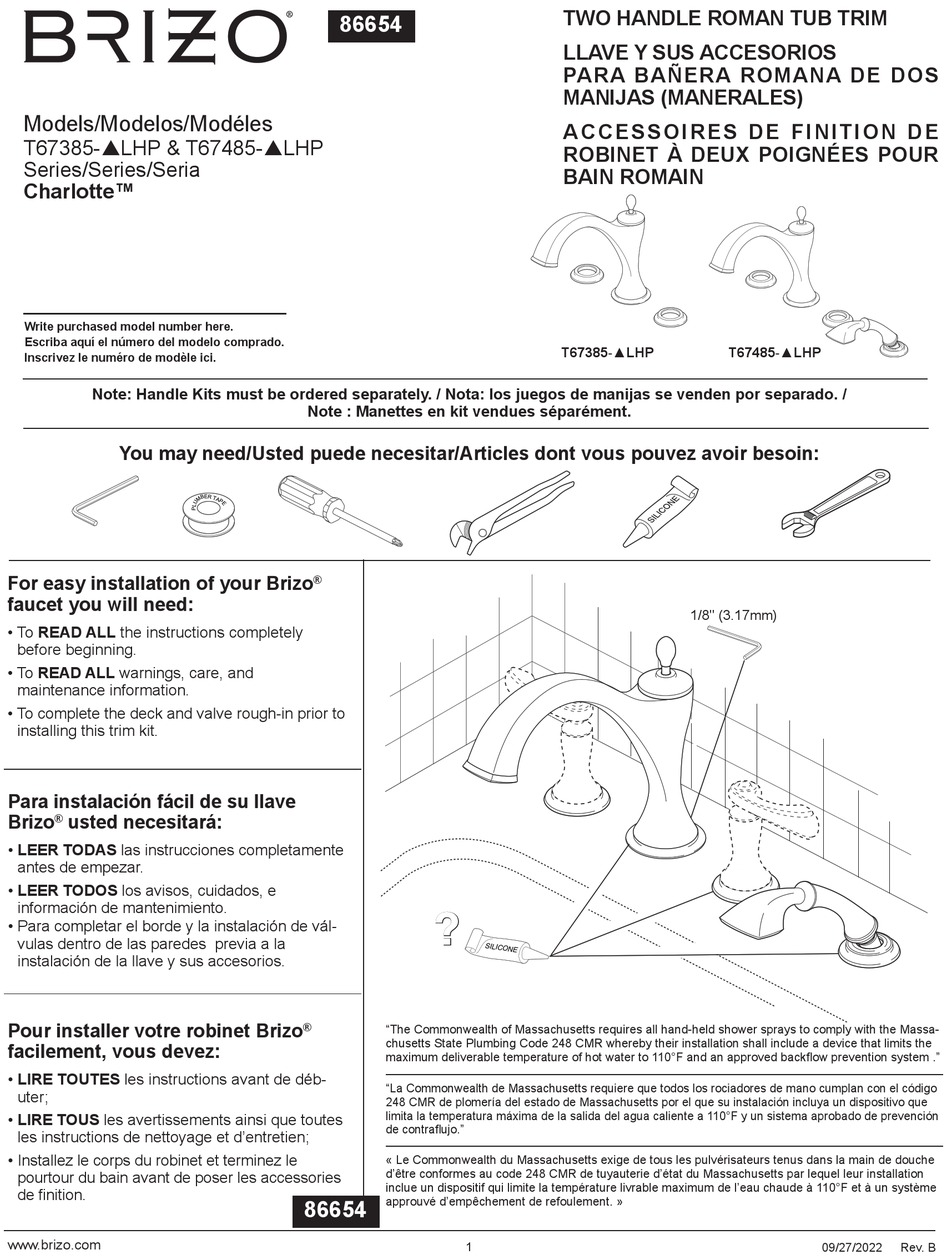

Models/Modelos/Modéles
T67385-pLHP & T67485-pLHP
Series/Series/Seria
Charlotte™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
Note: Handle Kits must be ordered separately. / Nota: los juegos de manijas se venden por separado. /
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
• To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Para completar el borde y la instalación de vál-
vulas dentro de las paredes previa a la
instalación de la llave y sus accesorios.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de déb-
uter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.
www.brizo.com
86654
Note : Manettes en kit vendues séparément.
®
?
®
"The Commonwealth of Massachusetts requires all hand-held shower sprays to comply with the Massa-
chusetts State Plumbing Code 248 CMR whereby their installation shall include a device that limits the
maximum deliverable temperature of hot water to 110°F and an approved backflow prevention system ."
"La Commonwealth de Massachusetts requiere que todos los rociadores de mano cumplan con el código
248 CMR de plomería del estado de Massachusetts por el que su instalación incluya un dispositivo que
limita la temperatura máxima de la salida del agua caliente a 110°F y un sistema aprobado de prevención
de contraflujo."
« Le Commonwealth du Massachusetts exige de tous les pulvérisateurs tenus dans la main de douche
d'être conformes au code 248 CMR de tuyauterie d'état du Massachusetts par lequel leur installation
inclue un dispositif qui limite la température livrable maximum de l'eau chaude à 110°F et à un système
approuvé d'empêchement de refoulement. »
86654
1

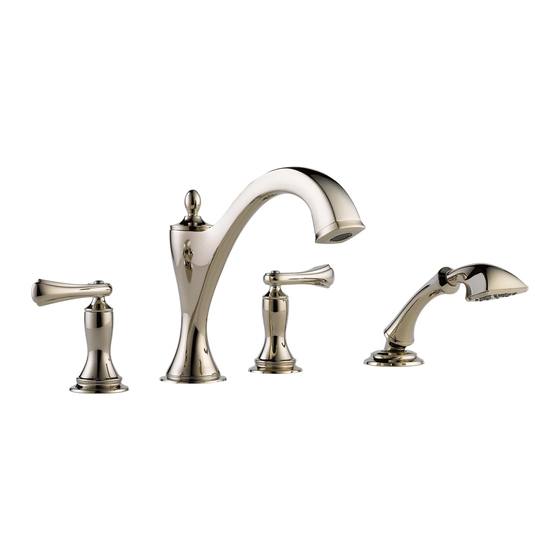

TWO HANDLE ROMAN TUB TRIM
LLAVE Y SUS ACCESORIOS
PARA BAÑERA ROMANA DE DOS
MANIJAS (MANERALES)
A C C E S S O I R E S D E F I N I T I O N D E
ROBINET À DEUX POIGNÉES POUR
BAIN ROMAIN
T67385-▲LHP
T67485-▲LHP
1/8" (3.17mm)
09/27/2022
Rev. B
Advertisement
Table of Contents
Related Manuals for Brizo Charlotte T67485 LHP Series
Summary of Contents for Brizo Charlotte T67485 LHP Series
- Page 1 Note: Handle Kits must be ordered separately. / Nota: los juegos de manijas se venden por separado. / Note : Manettes en kit vendues séparément. You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: 1/8"...
-
Page 2: Cleaning And Care
CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. LIMPIEZA Y CUIDADO DE SU LLAVE Tenga cuidado al ir a limpiar este producto. - Page 3 T67385 T67385 T67485 3/32" (2.38 mm) 3/32 po NOTE: The deck and valve rough-in must be finished before Model T67385 installing the trim kit. Install spout onto adapter (1). Note: Use silicone under spout if deck Model T67385 is uneven. Be sure spout is resting firmly on deck. Install set screw (2) Unscrew the test cap (1) and discard.
- Page 4 T67480 T67485 T67480 T67485 T67480 Model T67485 For Model T67485 Only Carefully align the spout over the center mounting shank with divert- Remove and discard the test cap and gasket (1). Note: This is an er (1) and push spout down firmly on the deck. Note: if mounting extra gasket, one is supplied with the hose.
- Page 5 Note: Handle kits (HL685) are sold separately. Make sure valve is in the off If handles do not align to the desired position or direction, unscrew one or position. Push the handle adapter with plastic insert (1) over the valve stem (2), both of the handle and base assemblies and try assembling again after making sure to align the “D”...
- Page 6 T67385 & T67485 T67485 T67485 T67485 Model T67385 & T674 85 Attach hand shower (1) to hose (2) with gasket (3) between connection. Make sure the lift rod (1) is in the down position. Turn faucet handles (2) all the way on.
-
Page 7: Maintenance
T67485 RP40668 Diverter Assembly Ensamble del Desviador Dérivation Maintenance Model T67485 If faucet does not divert water from the spout to the hand shower, check that If faucet leaks from spout outlet: Shut off water supplies – the lift rod (1) is securely threaded into the diverter (2). If the problem per- Replace Seats and Springs (1). - Page 8 Brizo Kitchen & Bath Company Masco Canada Limited, Plumbing Group application” refers to the purchase of the faucet from an authorized Brizo seller by a purchaser who owns but does not live in the residential 55 E. 111th Street Technical Service Centre...
