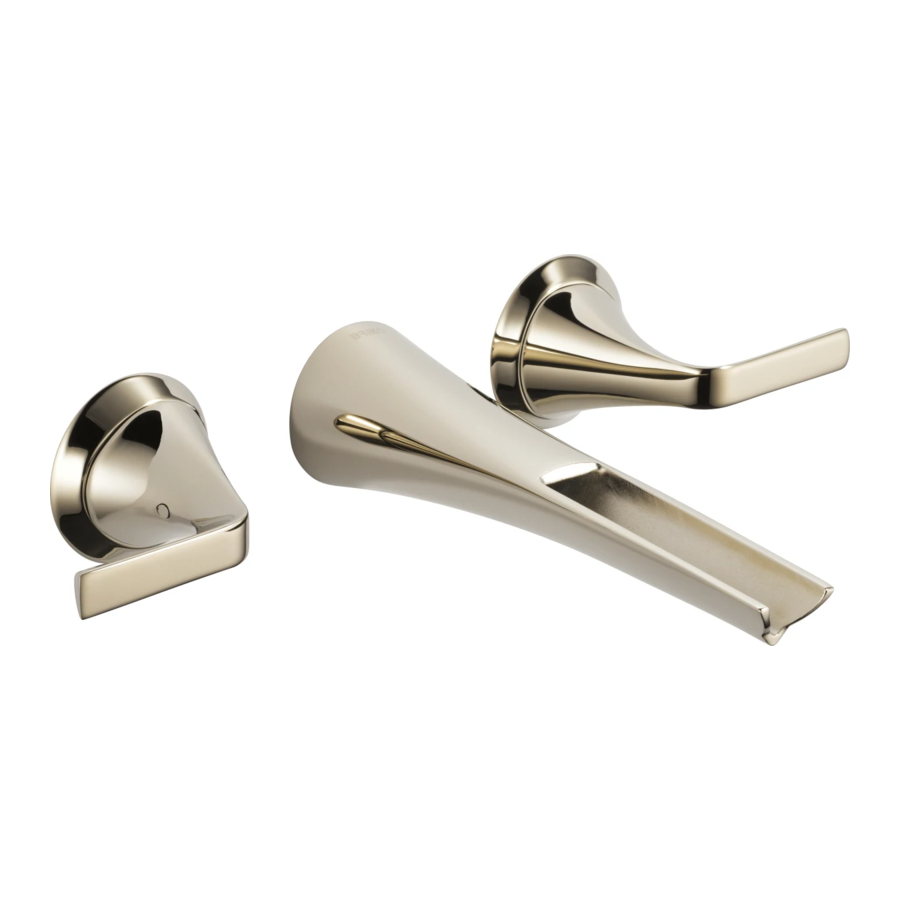

Model/Modelo/Modèle
T65851LF-▲
T65851LF-▲-ECO
Series/Series/Seria
®
Sotria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
▲ Specify Finish / Especifíque el Acabado / Précisez le Fini
Rough-in R65800 required to complete installation
Eléctrico/a oculto R65800 que se requiere para completar la instalación
Plomberie brute R65800 nécessaire pour terminer l'installation
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de déb-
uter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com

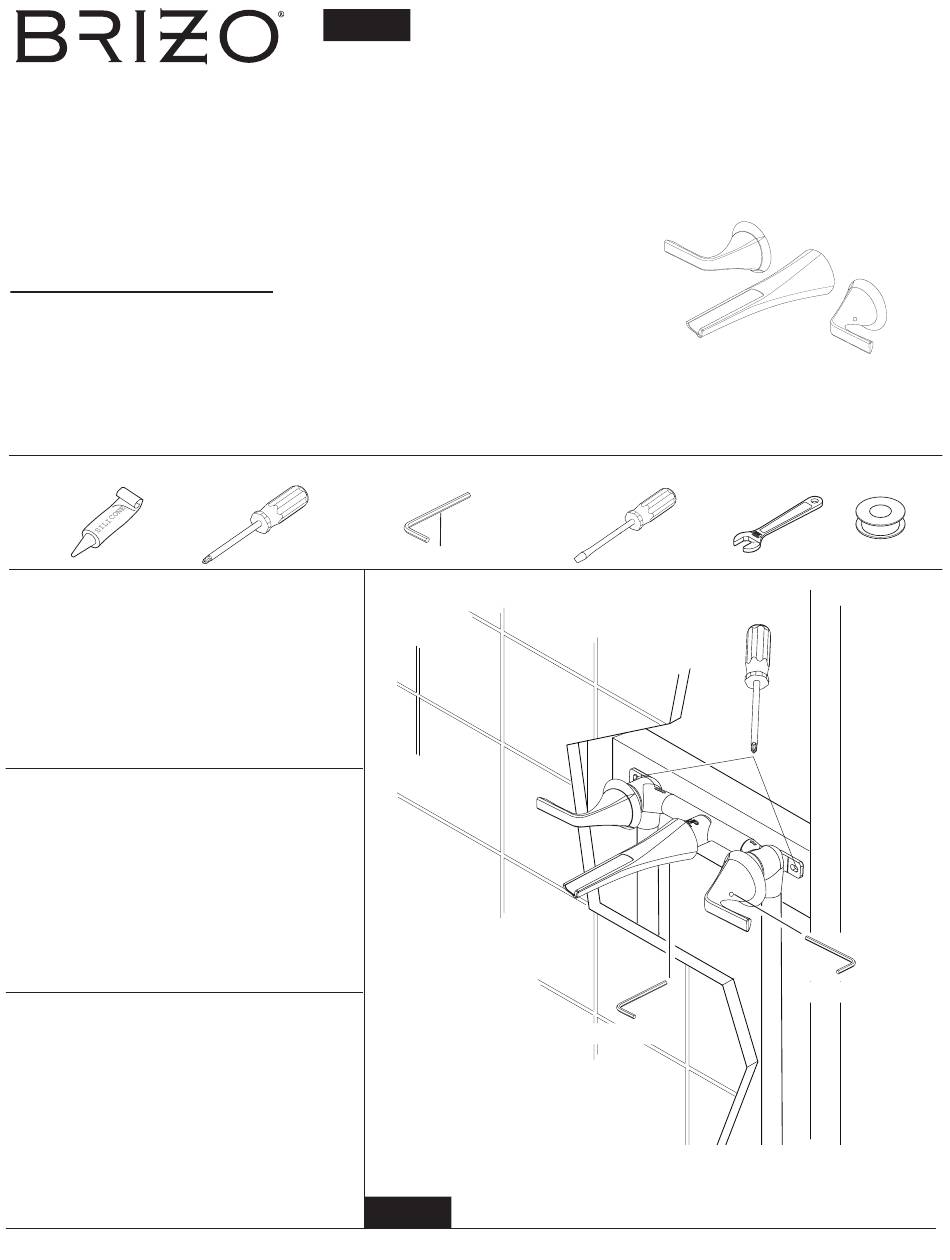

TWO HANDLE WALL MOUNTED LAVATORY
86652
FAUCET TRIM ONLY
LLAVES DE AGUA - GRIFOS - DE DOS MANIJAS
PARA INSTALACIÓN EN LA PARED
ROBINETS MURAUX À DEUX MANETTES POUR
LAVABO
1/8" (3.17mm)
®
®
86652
1
1/8" (3.17mm)
1/8" (3.17mm)
09/27/2022 Rev. D
