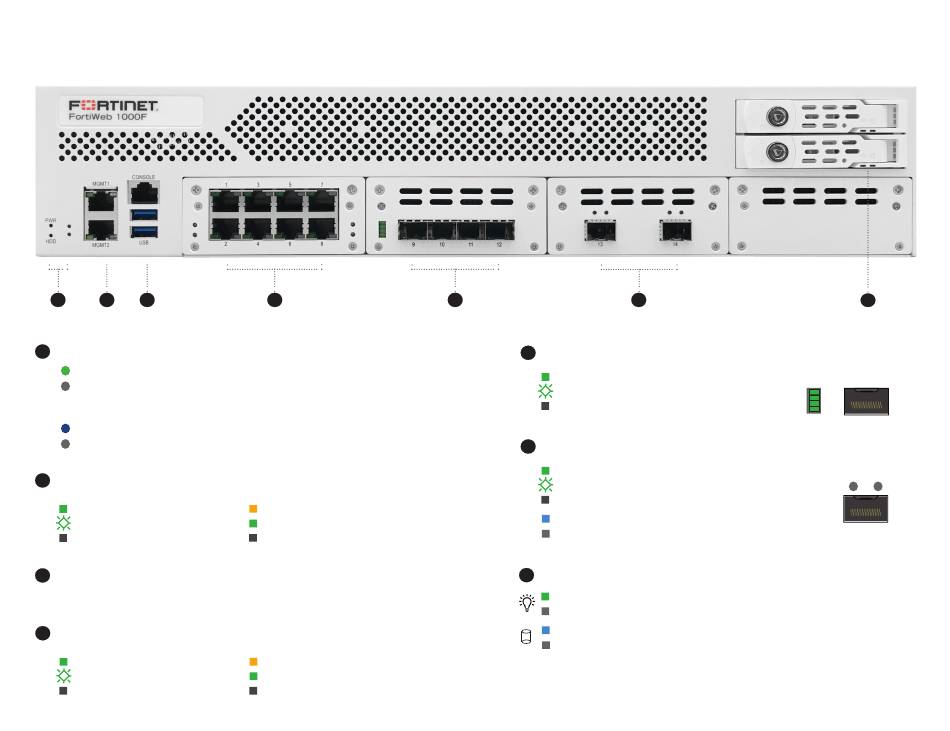

Front - FWB-1000F
Note: Shielded Ethernet Cable Recommended
1 2 3
1 PWR LED
Green: Device is on
Off: Device is off
HDD LED
Blue: HDD SATA activity
Off: No HDD SATA activity
2 MGMT1 & MGMT2 (RJ45) MGMT1 192.168.1.99, MGMT2 192.168.2.99
ACT
Green: Link established, no activity
Flashing Green: Data activity
Off: No link established
3 Console Port (RJ-45) CLI management computer interface
USB 3.0 Ports (USB A) not in use
4
Ports 1 to 8 (RJ45) 4x Bypass Ports (default 1&2, 3&4, 5&6, 7&8)
ACT
Green: Link established, no activity
Flashing Green: Data activity
Off: No link established
12
4
System Reset button
(Top right position)
Factory Reset button
(Bottom right position)
LINK
Amber: Link established at 1000Mbps
Green: Link established at 100Mbps
Off: No link established or at 10Mbps
LINK
Amber: Link established at 1000Mbps
Green: Link established at 100Mbps
Off: No link established or at 10Mbps
5
5
Ports 9 to 12 (SFP)
Green: Link established, no activity
LINK/
Flashing Green: Data activity
ACT
Off: No link established
6 Ports 13 & 14 (SFP+)
Green: Link established, no activity
Flashing Green: Data activity
LINK/
ACT
Off: No link established
Blue: Link established at 10Gbps
SPEED
Off: No link established or at 1Gbps
7
Disk Storage 2x 480GB SSD
Green: HDD powered on
Off: HDD powered off
Blue: Hard disk in use
Off: Hard disk off
6
LINK/ACT
Port 9
Port 10
Port 11
Port 12
LINK/ACT
7
SFP
SPEED
SFP+
13
