Blaze King CHINOOK CK30.2 Operation & Installation Manual

Solid fuel wood catalytic stove
Hide thumbs Also See for CHINOOK CK30.2:
Table of Contents

Advertisement

Quick Links

Download this manual

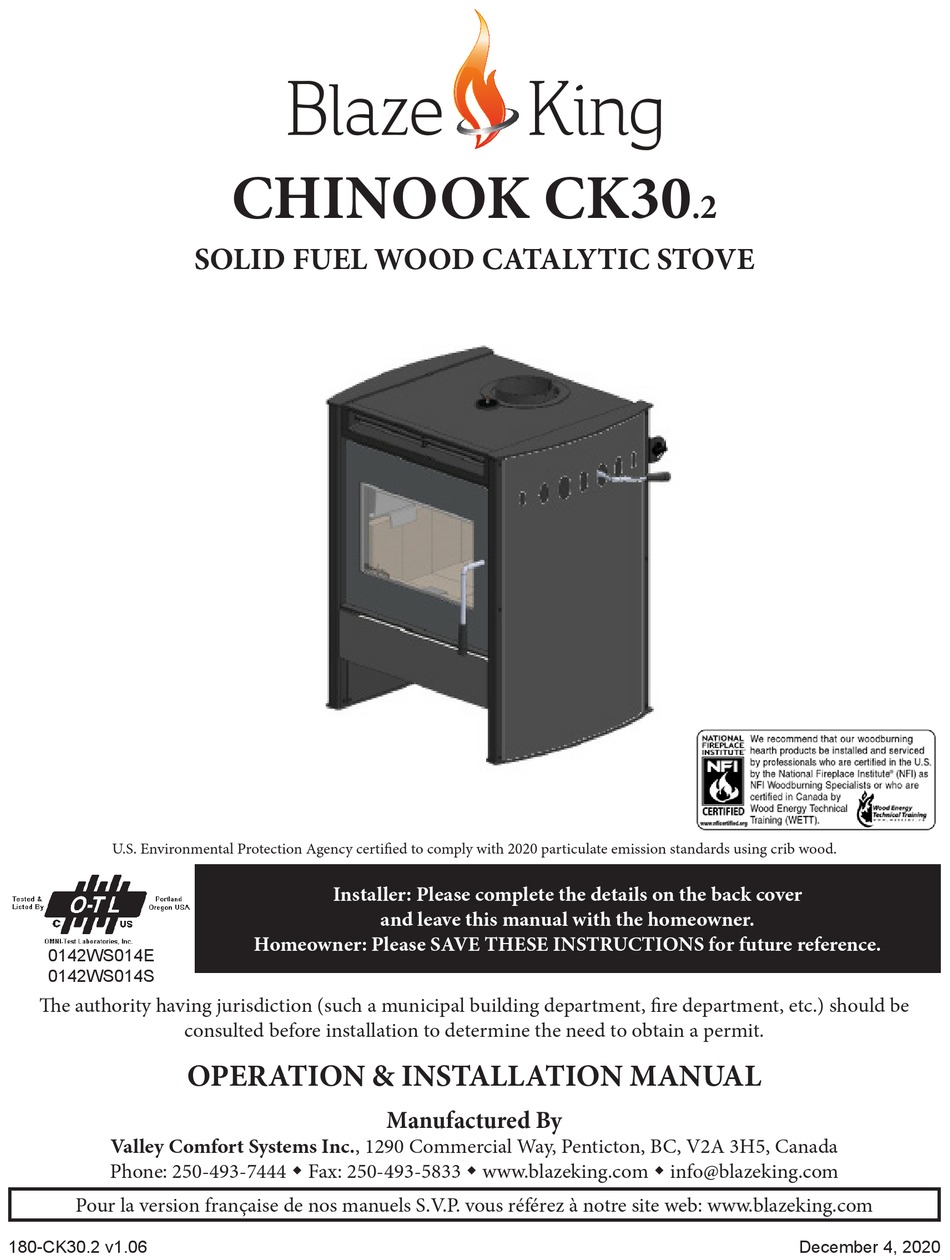

CHINOOK CK30
.2
SOLID FUEL WOOD CATALYTIC STOVE
U.S. Environmental Protection Agency certified to comply with 2020 particulate emission standards using crib wood.
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please SAVE THESE INSTRUCTIONS for future reference.
0142WS014E
0142WS014S
The authority having jurisdiction (such a municipal building department, fire department, etc.) should be
consulted before installation to determine the need to obtain a permit.
OPERATION & INSTALLATION MANUAL
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: 250-493-7444 w Fax: 250-493-5833 w www.blazeking.com w info@blazeking.com
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
180-CK30.2 v1.06
December 4, 2020
