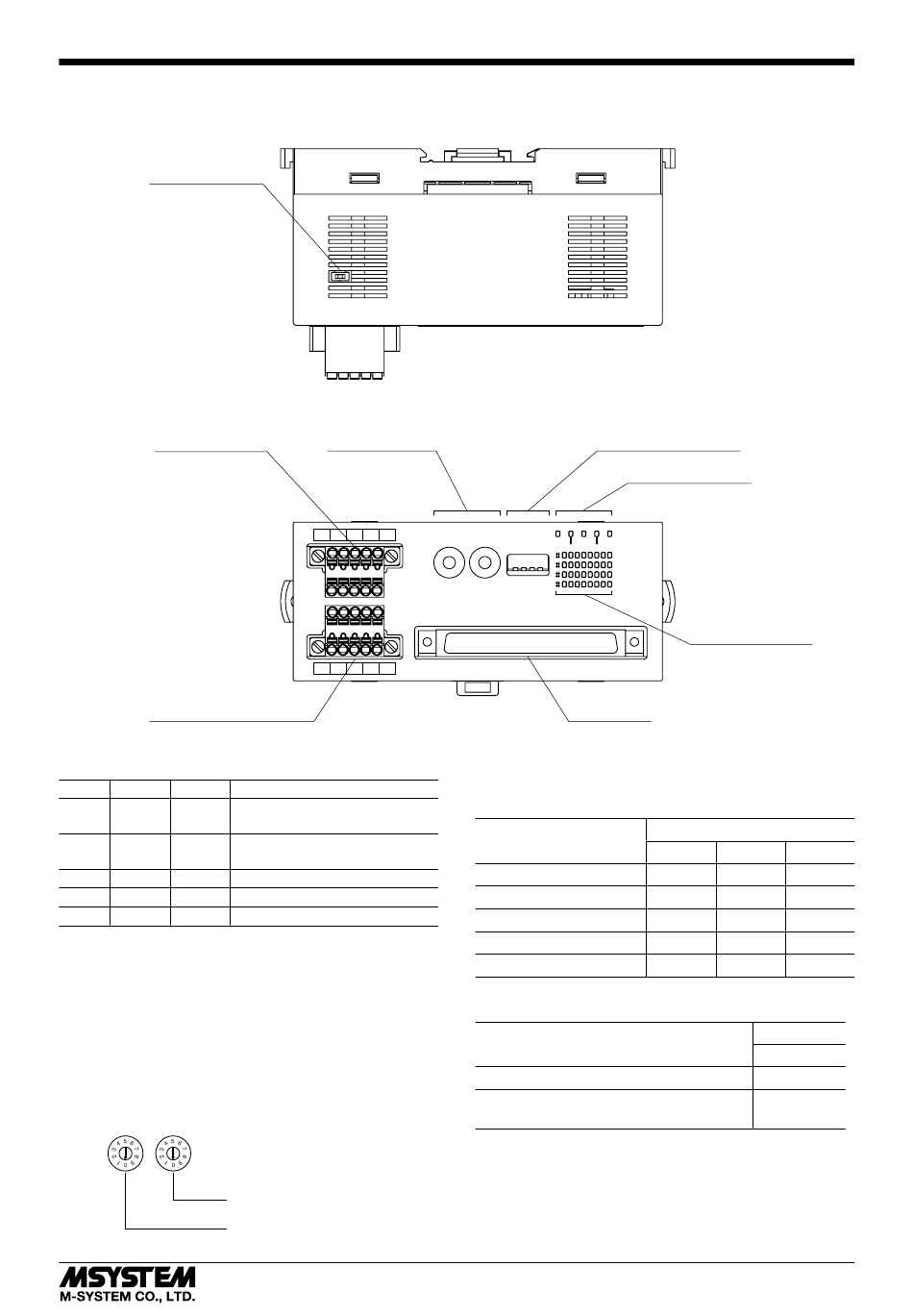

COMPONENT IDENTIFICATION

■ TOP VIEW
Terminator DIP SW
■ FRONT VIEW
CC-Link Connector
Connector for Power Supply
■ STATUS INDICATOR LED
ID STATUS COLOR
Power ON Green
Run ON Green
Error ON Red
SD ON Green
RD ON Green
■ DISCRETE I/O STATUS INDICATOR LED
Green LED shows the I/O status.
ON : LED ON
OFF : LED OFF
■ STATION ADDRESS
The left switch determines the tenth place digit, while the
right one does the ones place digit of the station address
(1 - 64).
(Factory setting: 00)
Station Address
Setting Rotary SW
1 2 3 4 5
FE SLD DB DG DA
5 4 3 2 1
NC NC FE1 PWR- PWR+
FUNCTION
Internal 5V power is in normal
status.
The refresh data is received
normally
The received data is abnormal.
The module is transmitting.
The module is receiving.
Station Address Setting (x1)
Station Address Setting (x10)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Operation Mode Setting
DIP SW (SW1)
STATION ADD.
Power Error RD
×10 ×1
Run SD
1 2 3 4
SW1
A20 A1
B20 B1
I/O Connector
■ OPERATING MODE
(*) Factory setting
• Read Rate (SW1-1, 1-2, 1-3)
BAUD RATE
0: 156 kbps (*)
1: 625 kbps
2: 2.5 Mbps
3: 5 Mbps
4: 10 Mbps
• OUTPUT AT THE LOSS OF COMMUNICATION (SW1-4)
OUTPUT AT THE LOSS OF COMMUNICATION
Output clear (output OFF)
Hold the output (*)
(maintains the last data received normally)
■ TERMINATING RESISTOR
To use the terminating resistor, turn the switch ON, and
OFF to invalidate. (Factory setting OFF)
R7F4HC-DAC32D-K
Status Indicator LED
Discrete I/O
Status Indicator LED
SW1
1 2
OFF OFF
ON OFF
OFF ON
ON ON
OFF OFF
SW1
4
OFF
ON
EM-8009-C P. 2 / 7
3
OFF
OFF
OFF
OFF
ON
