M-system R7F4HC-DAC32D-K Instruction Manual page 3

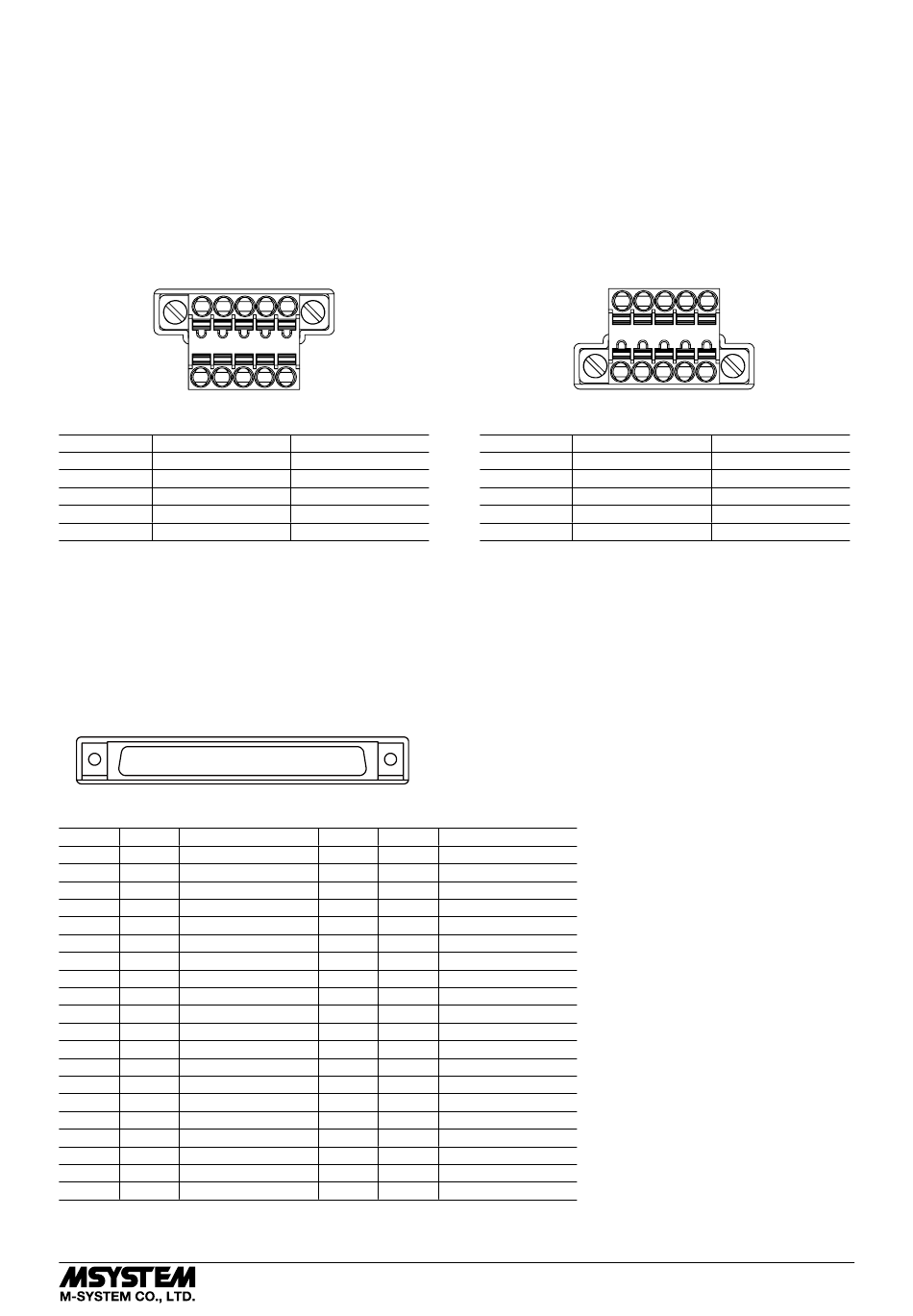

■CC-Link, POWER SUPPLY ASSIGNEMENT
Unit side connector: MC1,5/5-GF-3,5 (Phoenix Contact)
Cable side connector: TFMC1,5/5-STF-3,5 (Phoenix Contact)
Aplicable wire size: 0.2 - 1.5mm
2
AI0,25-10YE 0.25mm (Phoenix Contact)
2
A0,34-10TQ 0.34mm (Phoenix Contact)
2
AI0,5-10WH 0.5mm (Phoenix Contact)
2
AI0,75-10GY 0.75mm (Phoenix Contact)
2
AI1-10 1.0mm (Phoenix Contact)
2
AI1,5-10 1.5mm (Phoenix Contact)
· CC-Link
1 2
NO. ID
1 FE
2 SLD
3 DB
4 DG
5 DA
Note: The numbers marked on the connector have no relationship to the pin number of the unit.
Wire according to the instruction manual of the unit.
■ I/O, SENSOR EXC. ASSIGNMENT
Unit side conector: FCN-365P040-AU (Fujitsu)
Cable side connector: FCN-36xJ040-AU (Fujitsu)
Cable side connector: FCN-36( )J040-AU (Fujitsu)
(The cable connector is not included in the package. Specify wire size instead of ( ); refer to the specifications of the product)
A20
B20
PIN NO. ID FUNCTION
A1 VS+ Exc. supply +
A2 VS- Exc. supply -
A3 YF Output 15
A4 YE Output 14
A5 YD Output 13
A6 YC Output 12
A7 YB Output 11
A8 YA Output 10
A9 Y9 Output 9
A10 Y8 Output 8
A11 NC Unused
A12 COM Common
A13 XF Input 15
A14 XE Input 14
A15 XD Input 13
A16 XC Input 12
A17 XB Input 11
A18 XA Input 10
A19 X9 Input 9
A20 X8 Input 8
2
, stripped length 10mm
3 4 5
FUNCTION
Functional earth
Shield
DB (white)
DG (yellow)
DA (blue)
A1
B1
PIN NO. ID
B1 VS+
B2 VS-
B3 Y7
B4 Y6
B5 Y5
B6 Y4
B7 Y3
B8 Y2
B9 Y1
B10 Y0
B11 NC
B12 COM
B13 X7
B14 X6
B15 X5
B16 X4
B17 X3
B18 X2
B19 X1
B20 X0
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
· POWER SUPPLY
NO.
1
2
3
4
5
FUNCTION
Exc. supply +
Exc. supply -
Output 7
Output 6
Output 5
Output 4
Output 3
Output 2
Output 1
Output 0
Unused
Common
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
Input 0
R7F4HC-DAC32D-K
1 2 3 4 5
ID FUNCTION
PWR+ Power supply +
PWR- Power supply -
FE1 Grounding
NC Unused
NC Unused
EM-8009-C P. 3 / 7
