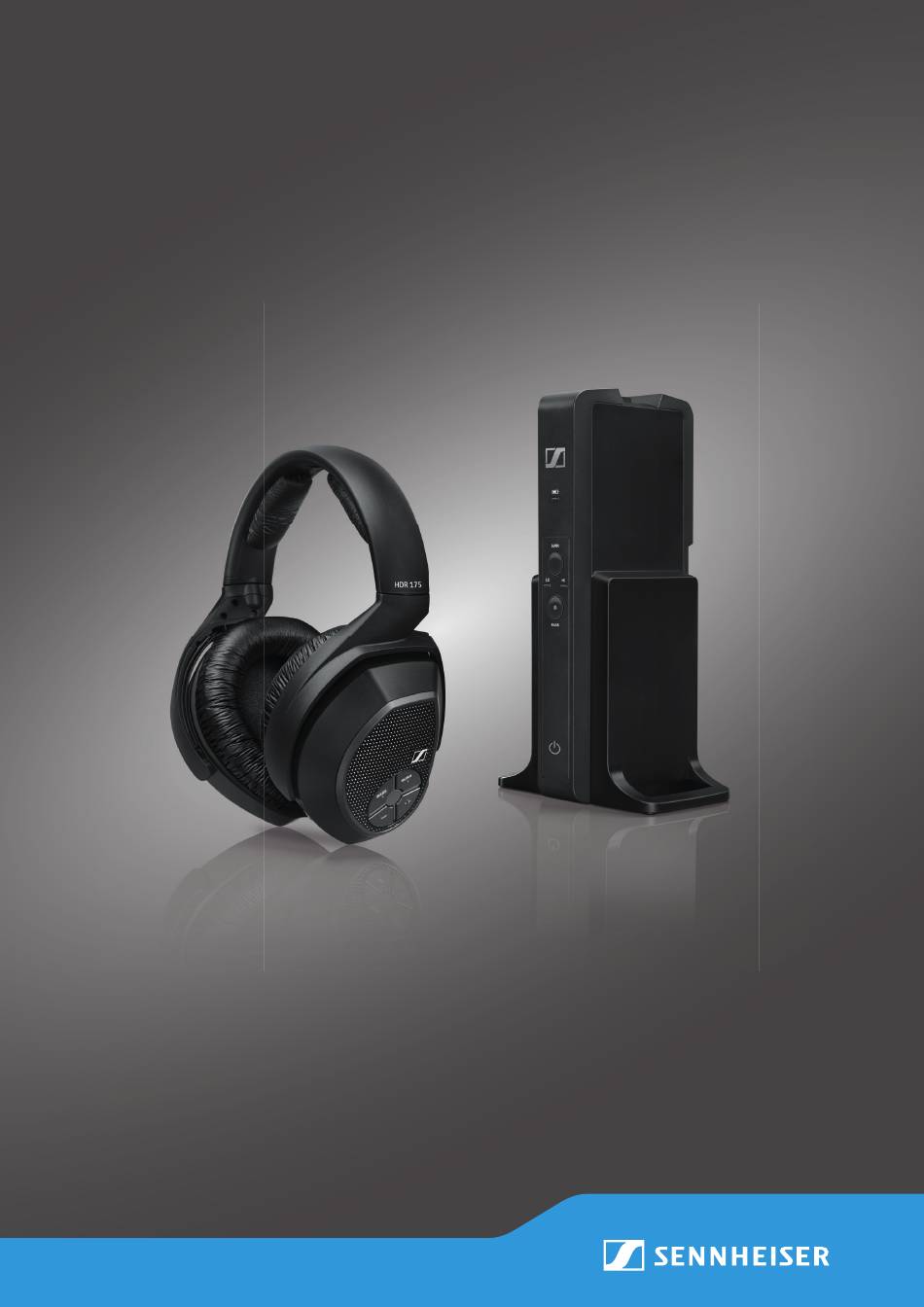

- Page 1 RS 175 Digital Wireless Headphone System Model: RS 175, TR 175, HDR 175 Instruction Manual RS 175...
- Page 2 Headphones of the Sennheiser brand sound exceptionally even good at low and medium volume levels. Do not use the product in an environment that requires your spe- cial attention (e.g.
- Page 3 Sonova Consumer Hearing GmbH does not accept liability for dam- age arising from misuse or improper use of the product and its attachments/accessories. Before putting the product into operation, please observe the respective country-specific regulations. RS 175...
- Page 4 Do not charge stan- Do not mix standard and HR03 dard batteries. rechargeable batteries in the LR03 battery compartments. RS 175...
- Page 5 The RS 175 wireless headphone system offers compelling features that let you enjoy music and movies even more intensely. With the dynamic bass boost and the two surround modes of the RS 175, you can fully exploit the sound potential of your home entertainment sys-...
- Page 6 Quick guide Quick Guide Safety Guide Safety guide Safety Guide Safety Guide Overview of accessories A list of accessories can be found on the RS 175 product page at www.sennheiser-hearing.com. Contact your local Sonova Consumer Hearing partner: www.sennheiser-hearing.com/service-support). RS 175...

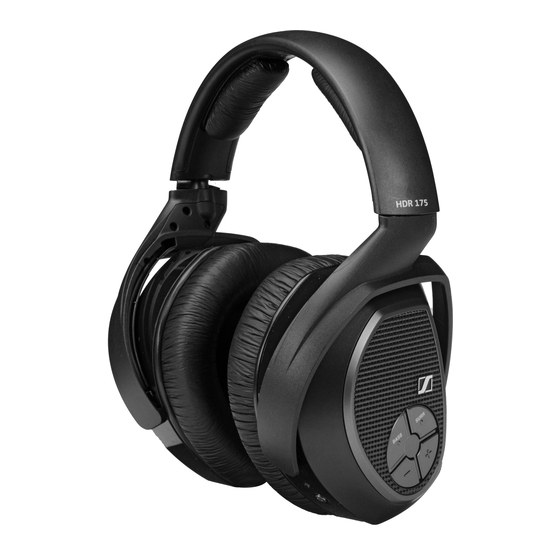

- Page 7 Product overview Product overview Overview of the HDR 175 headphones Headband Volume button Charging contacts Volume – button Ear pads BASS button Ear cups/Battery com- Power HDR button partments HDR status LED SURR button for virtual surround sound RS 175...
- Page 8 Analog audio input round sound mode ANALOG 3.5 mm IN (3.5 mm jack socket) SURR button for virtual surround sound DC 9V 0.3A connection socket for the power supply Charge status LED unit Charging contacts RS 175...
- Page 9 The headphones and the transmitter are connected and the rechargeable batteries are almost empty. The headphones are not connected or cannot connect to the transmitter. The headphones are not connected or cannot connect to the transmitter and the rechargeable batteries are almost empty. RS 175...
- Page 10 9 to 14 hours 50–75 % approx. 14 to 18 hours 75–100 % Surround sound LED Meaning The virtual surround sound is deactivated. LO: The surround sound mode “low” is activated. HI: The surround sound mode “high” is activated. 10 | RS 175...
- Page 11 Putting the RS 175 into operation BASS LED Meaning The dynamic bass boost is deactivated. The dynamic bass boost is activated. Meaning TR status LED The transmitter is connected to the power supply system. The transmitter is in standby mode.
- Page 12 SELECTION switch (see page 21). You can also refer to the video guides on how to connect your digital wireless headphone system to a TV: www.sennheiser- hearing.com/how-to-videos. Switch your audio source off before connecting the transmitter. Check the connection possibilities of your audio source (audio output, usually marked “OUT”).
- Page 13 DIGITAL OPTICAL IN input. Note that your RS 175 only supports digital PCM signals. Information on how to set the audio format of the connected audio source to PCM can be found in the Sound menu or in the instruction manual of your device.
- Page 14 Putting the RS 175 into operation Connection possibility B: 3.5 mm or 6.3 mm/¼" jack socket (ana- log) Some TV models mute the loudspeakers when you connect the transmitter to the headphone socket. Check the menu of your TV to see if the muting function can be deactivated.
- Page 15 Putting the RS 175 into operation Connection possibility C: RCA sockets (analog) Switch your audio source off before connecting the transmitter. Plug the RCA adapter onto the stereo audio cable. Connect the stereo audio cable to the 3.5 mm jack socket of the transmitter.
- Page 16 Putting the RS 175 into operation Connecting the transmitter to the power supply system Select a suitable country adapter and slide it onto the power sup- ply unit until it clicks audibly into place. Connect the connector of the power supply unit to the connection socket of the transmitter.
- Page 17 Putting the RS 175 into operation Inserting or replacing the rechargeable batteries Turn the two ear pads counterclockwise until you overcome a slight resistance. Lift the ear pads off the ear cups to reveal the battery compart- ments. Insert the rechargeable batteries into the battery compartments.
- Page 18 Putting the RS 175 into operation Charging the rechargeable batteries CAUTION Danger of damage to the headphones! If you insert non-rechargeable batteries into the battery compartments, the batteries may leak during charging and can damage your headphones. Do not place the headphones on the transmitter's headphone holder if you are using non-rechargeable batteries.
- Page 19 Putting the RS 175 into operation Adjusting the headband For good sound quality and best possible wearing comfort, the head- band has to be adjusted to properly fit your head. The headphones feature an adjustable headband with a snap-in locking mechanism for easy adjustment.
- Page 20 Using the RS 175 wireless headphone system Using the RS 175 wireless headphone system Switching the wireless headphone system on WARNING Danger of hearing damage due to high volumes! Listening at high volume levels can lead to permanent hearing defects.
- Page 21 Using the RS 175 wireless headphone system Selecting an audio input If both the analog and the digital audio input are connected to an audio source, you can toggle between the two audio inputs. Slide the AUDIO INPUT SELECTION switch up to select the digital (optical) audio input (see page 13).
- Page 22 Using the RS 175 wireless headphone system Activating/deactivating the virtual surround sound The RS 175 offers two virtual surround sound modes (high HI/low LO) that simulate external stereo speakers to create a more spacious and vibrant sound in the headphones.
- Page 23 Using the RS 175 wireless headphone system Activating/deactivating the dynamic bass boost The dynamic bass boost enhances the bass response. Press the BASS button on the headphones or on the transmitter to activate and deactivate the bass boost. The BASS LED lights up when the dynamic bass boost is activated.
- Page 24 Using the RS 175 wireless headphone system Pairing one or two pairs of headphones with the transmitter The headphones and the transmitter of your wireless headphone system are factory pre-paired. The following procedure is only nec- essary if you have cleared all pairing settings from your wireless headphone system and want to re-establish the pairing, or if you want to pair another pair of headphones with the transmitter.
- Page 25 Using the RS 175 wireless headphone system Switching your wireless headphones off There are two ways to switch your wireless headphones off: Press the Power HDR button on the headphones for approx. 2 seconds. The headphones switch off. If no other pair of headphones is con- nected to the transmitter, the transmitter switches to standby mode.
- Page 26 Cleaning and maintaining the RS 175 Cleaning and maintaining the RS 175 CAUTION Liquids can damage the electronics of the product! Liquids entering the housing of the product can cause a short-circuit and damage the electronics. Keep all liquids far away from the product.
- Page 27 The volume on the headphones is Reduce the volume on the distorted adjusted too high. headphones. The volume of the analog audio source Reduce the volume of the analog audio – is adjusted too high. source to a medium level. RS 175 | 27...
- Page 28 175, HDR 185, or HDR 195. If a problem occurs that is not listed in the above table or if the prob- lem cannot be solved with the proposed solutions, visit the RS 175 product page at www.sennheiser-hearing.com. There you will find a current list of frequently asked questions (FAQ).
- Page 29 Volume +/– but- tons pressed. Release all 3 buttons. The HDR status LED lights up green or red, depending on the bat- tery condition, and starts flashing slowly. The pairing settings are cleared from the headphones. RS 175 | 29...
- Page 30 Specifications Specifications System – model: RS 175 Transmission frequency 2,406 to 2,474 MHz Modulation 8-FSK Digital analog input: typ. 85 dBA at 1 V Signal-to-noise ratio digital input: > 90 dBA RF output power max. 10 dBm Range up to 100 m (free line of sight) Max.
- Page 31 Nominal output voltage Nominal output current 300 mA operation: 0 °C to +40 °C Temperature range storage: -40 °C to +85 °C operation: 0 to 90 %, non condensing Relative humidity storage: 0 to 90 % RS 175 | 31...
- Page 32 RoHS Directive (2011/65/EU) Hereby, Sonova Consumer Hearing GmbH declares that the radio equipment type RS 175 (TR 175, HDR 175) is in compliance with the Radio Equipment Directive (2014/53/EU). The full text of the EU declaration of conformity is available at the fol- lowing Internet address: www.sennheiser-hearing.com/download.
- Page 33 Sonova Consumer Hearing partner. You can also return electrical or electronic equipment to distributors who have a take-back obligation. Herewith you make an important contri- bution to the protection of the environment and public health. RS 175 | 33...
- Page 34 Manufacturer declarations Sonova Consumer Hearing GmbH Am Labor 1, 30900 Wedemark, Germany www.sennheiser-hearing.com Publ. 07/22, A06 34 | RS 175...
Need help?
Do you have a question about the RS 175 and is the answer not in the manual?
Questions and answers
Where do you connect to the tv
You can connect the Sennheiser RS 175 to a TV using either a digital optical audio cable or an analog 3.5mm audio jack.
1. Using an Optical Cable (Digital Connection)
- Connect the optical cable to the TV’s optical audio output.
- Plug the other end into the base station’s optical input.
- Set the switch on the base station to the optical position (upper position).
- Check your TV’s audio settings and set the optical output to "Stereo" or "PCM."
- Turn on the headphones. The transmitter LED should light up green if the connection is correct.
2. Using a 3.5mm Aux Cable (Analog Connection)
- Connect one end of the 3.5mm audio cable to the TV’s headphone or audio output.
- Plug the other end into the base station’s aux input.
- Flip the switch on the base station to the analog position.
- Adjust the TV’s volume to at least a medium level.
3. Using RCA (Analog Connection)
- Use an RCA adapter with the stereo audio cable.
- Connect the 3.5mm jack to the base station.
- Plug the RCA connectors into the TV’s "AUDIO OUT" (match red and white plugs).
In some cases, you may need to adjust the TV’s audio output settings. If sound is directed to the headphones, the TV’s internal speakers or soundbar may not work simultaneously.
