Sennheiser RS 195, RS 195-U, TR 195, HDR 195 Manual

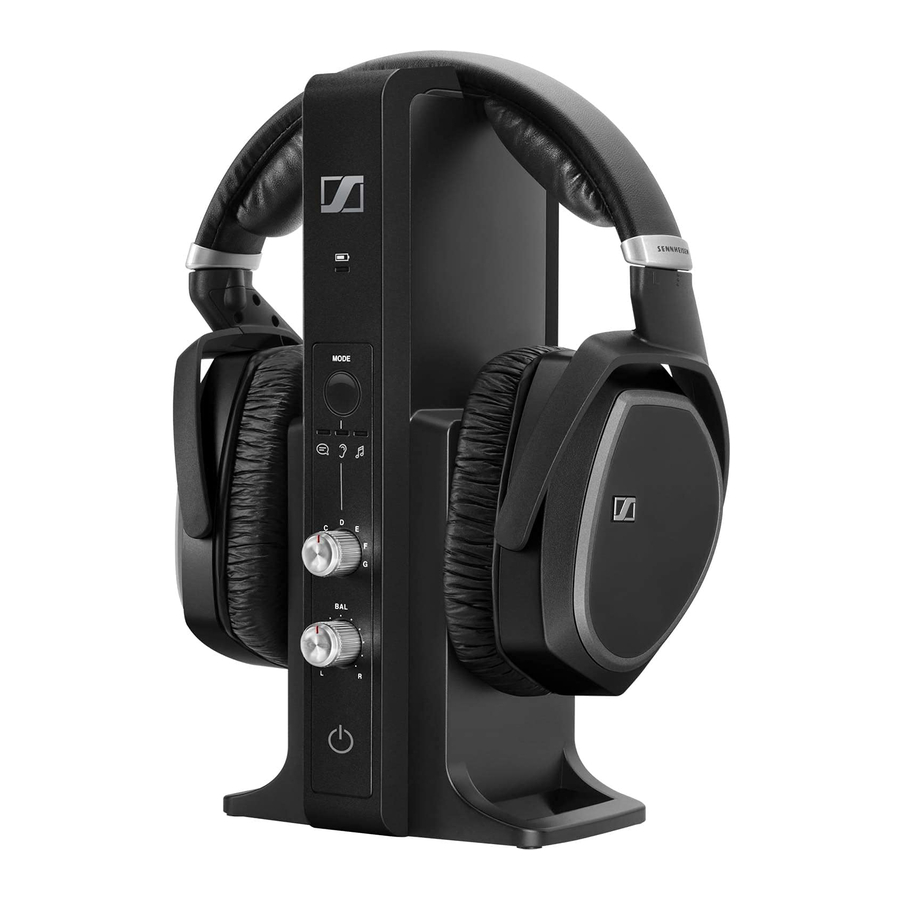

The RS 195 digital wireless headphone system

The RS 195 digital wireless headphone system is your personal hearing and ultimate audio companion, providing you with all of the unparalleled sound quality, ease of use and wearing comfort that you expect from a product of the Sennheiser brand.
Whether you are watching television or listening to music, the RS 195 ensures that you won't miss a thing: Highly innovative digital wireless technology guarantees crystal clear signal transmission with low latency even while you move from room to room, and the various listening modes allow you to adapt the sound according to your individual needs and preferences. With the RS 195 you'll be able to hear the subtle nuances of dialogs and the slight details of your favorite music like never before.
And although these headphones deliver state-of-the-art performance, their user-friendly design keeps things simple. The convenient controls make it easy to take advantage of the host of features, and the ergonomic design provides a comfortable fit, even after hours of listening.
The Sennheiser RS 195: Personal and adaptable to your listening needs!

Features

  • Closed, circumaural headphones with excellent digital wireless audio transmission
  • Exceptional digital audio clarity and transmission range of up to 100 m/328 ft (line of sight)
  • Selectable hearing boost presets and an additional noise suppression mode for clearer dialogs and superior speech intelligibility
  • The music listening mode reproduces music with an increased dynamic range to preserve the sound image in the best possible way
  • Two adjustable levels for the maximum possible volume when using the hearing profiles (from product version 06/2017)
  • Supports analog and digital audio inputs and allows toggling between the inputs
  • Multi-purpose transmitter – also functions as "easy-charge" cradle and docking station
  • Balance rotary switch for right/left volume adjustment
  • Ergonomic design for enhanced wearing comfort
  • 2-year warranty

Package contents

Product overview

Headphones
Model: HDR 195
Product overview - Headphones

  1. Headband
  2. Charging contacts
  3. Ear pads
  4. Ear cups/Battery compartments
  5. Volume + button
  6. Volume – button
  1. MODE button for Personal Hearing (activates/deactivates a hearing profile and activates the sound optimization options)
  2. HDR status LED
  3. Power HDR button

Transmitter
Model: TR 195
Product overview - Transmitter

  1. TR status LED
  2. BAL rotary switch for adjusting the balance
  3. A-G rotary switch for selecting the hearing profile
  4. Personal Hearing LEDs, indicating the selected sound optimization option
  5. MODE/LEVEL button for Personal Hearing (activates/deactivates a hearing profile, selects a volume level*, activates the sound optimization options)
  6. Charge status LED
  1. Charging contacts
  2. Digital optical audio input DIGITAL OPTICAL IN
  3. Audio input switch AUDIO INPUT SELECTION
  4. Analog audio input ANALOG 3.5 mm IN (3.5 mm jack socket)
  5. DC 9V 0.3A connection socket for the power supply unit

*from product version 06/2017

Overview of the displays
The LEDs on the headphones and on the transmitter indicate the current operating state. If you are not using the headphones, the LEDs automatically dim after approx. 30 seconds to not disturb you.

Overview of the LED on the headphones
Overview of the LED on the headphones

HDR status LED Meaning
The headphones are switched off.
The headphones and the transmitter are connected.
The headphones and the transmitter are connected and the rechargeable batteries are almost empty.
The headphones are not connected or cannot connect to the transmitter.
The headphones are not connected or cannot connect to the transmitter and the rechargeable batteries are almost empty.

Overview of the LEDs on the transmitter

  1. Charge status LED Meaning
    The transmitter is not charging.
    The rechargeable batteries are being charged.
    The rechargeable batteries are fully charged.
    A charging error/battery error has been detected.

    When you remove the headphones from the transmitter's headphone holder, the Charge status LED on the transmitter indicates the approximate operating time of the headphones:

    Charge status LED Operating time Battery capacity
    up to 4 hours 0–25%
    approx. 4 to 9 hours 25–50%
    approx. 9 to 14 hours 50–75%
    approx. 14 to 18 hours 75–100%
  2. Personal Hearing LEDs Hearing profile A-G Meaning
    off

    Personal Hearing is deactivated and the selected hearing profile is deactivated.

    The sound from the audio source is reproduced unchanged (Normal Hearing).

    activated A general hearing profile A-G for hearing enhancement is selected.
    In addition to the selected hearing profile, speech intelligibility is improved and annoying noise is reduced.
    The selected hearing profile reproduces music with an increased dynamic to preserve the sound image in the best possible way.

informationIf you are using Personal Hearing, you can choose between two levels for the maximum possible volume. Information on how to switch between the volume levels can be found (from product version 06/2017). If you connect a second pair of headphones to the transmitter, you cannot make use of the Personal Hearing settings.

Personal Hearing LEDs Meaning
If all three LEDs flash rapidly 3x, a second pair of headphones is connected to the transmitter. Switch off the
second pair of headphones to be able to activate Personal Hearing.
  1. TR status LED Meaning
    The transmitter is connected to the power supply system.
    The transmitter is in standby mode.
    The transmitter and the headphones are connected.
    The transmitter has detected an incompatible digital audio signal.

Putting the RS 195 into operation

Setting up the transmitter

Setting up the transmitter

  • Place the transmitter near your audio source.
  • Separate the transmitter from other wireless devices in the room by at least 20"/50 cm to avoid interference.
  • Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc. as this can decrease the transmitter's range.

Connecting the transmitter to audio sources
You can simultaneously connect two audio sources (e.g. a TV and a stereo hi-fi system) to the transmitter. The transmitter features a digital as well as an analog audio input. If you connect two audio sources, you can toggle between them using the AUDIO INPUT SELECTION switch.
informationYou can also refer to the video guides on how to connect your digital wireless headphone system to a TV: www.sennheiser-hearing.com/how-to-videos.

  • Switch your audio source off before connecting the transmitter.
  • Check the connection possibilities of your audio source (audio output, usually marked "OUT").
  • Select the corresponding connection cable and, if necessary, a suitable adapter.
  • Depending on the connection possibility selected, go to the respective chapter and follow the instructions on how to connect the transmitter to an audio source.
Connection possibilities of the audio source Connection cable
Optical (digital) Optical digital cable
3.5 mm or 6.3 mm/ ¼" jack socket (analog) Stereo audio cable; in case of a 6.3 mm/¼" jack socket: with adapter 3.5 mm jack socket to 6.3 mm/¼" jack socket (to be ordered separately)
RCA (analog) Stereo audio cable with adapter 3.5 mm jack socket to 2 RCA plugs (to be ordered separately)

informationAccessories and adapters are available from your Sonova Consumer Hearing partner.

  1. Connection possibility A: optical (digital)
    To achieve the best possible listening experience, connect the transmitter to your home cinema or hi-fi system using the supplied optical digital cable.
    Your wireless headphone system is able to decode digital audio signals from a device connected to the DIGITAL OPTICAL IN input. Note that your RS 195 only supports digital PCM signals. Information on how to set the audio format of the connected audio source to PCM can be found in the Sound menu or in the instruction manual of your device.
    Connection possibility: optical (digital) - Step 1
    * The appearance of the Sound menu can vary depending on thedevice you are using.
    • Pull off the clear protective caps from both plugs before connecting the cable.
    • Connect one end of the optical digital cable to the DIGITAL OPTICAL IN input of the transmitter and the other end to the optical output of your audio source.
      Connection possibility: optical (digital) - Step 2
  2. Connection possibility B: 3.5 mm or 6.3 mm/¼" jack socket (analog)
    • If necessary, plug the adapter 6.3 mm/¼" jack plug onto the stereo audio cable.
    • Connect the stereo audio cable to the 3.5 mm jack socket of the transmitter and to the headphone socket of your audio source.
      Connection possibility: 3.5 mm or 6.3 mm/¼
      * optional accessory
      informationAdjust the volume of the headphone socket on your TV/audio source to at least a medium level.
      This improves the quality of wireless audio transmission. For detailed information, please refer to the instruction manual of your TV/audio source.
      If the headphones socket on your audio source is a 6.3 mm/¼" jack socket, you require an adapter (3.5 mm jack plug to 6.3 mm/¼" jack plug, optional accessory) for the supplied 3.5 mm stereo audio cable.
      Some TV models mute the loudspeakers when you connect the transmitter to the 3.5 mm headphone socket. Other TV models have their own menu for adjusting the volume of the headphone socket.
      Check the menu of your TV for information on how to deactivate the muting function or adjust the volume. Alternatively, connect the TV and the transmitter using a different connection possibility (A or C).
  3. Connection possibility C: RCA sockets (analog)
    • Plug the RCA adapter onto the stereo audio cable.
    • Connect the stereo audio cable to the 3.5 mm jack socket of the transmitter.
    • Connect the RCA plugs to the RCA outputs of your audio source (usually marked "AUDIO OUT"). Connect the red plug to the red RCA socket and the white plug to the white or black RCA socket.
      Connection possibility: RCA sockets (analog)
      * optional accessory

Connecting the transmitter to the power supply system

  1. Select a suitable country adapter and slide it onto the power supply unit until it clicks audibly into place.
  2. Connect the connector of the power supply unit to the connection socket of the transmitter.
    Connecting the transmitter to the power supply system
  3. Plug the power supply unit into the wall socket.
    The TR status LED on the transmitter lights up briefly. The transmitter is in standby mode.

Inserting or replacing the rechargeable batteries

  1. Turn the two ear pads counterclockwise until you overcome a slight resistance.
  2. Lift the ear pads off the ear cups to reveal the battery compartments.
  3. Insert the rechargeable batteries into the compartments. To replace the batteries, pull the batteries out of the compartments and insert the new ones. Observe correct polarity when inserting the rechargeable batteries. Dispose of old rechargeable batteries as special waste or return them to your specialist dealer.

  4. Place the two ear pads back on the ear cups. Observe the L (left) and R (right) markings on the rear of the ear pads.
  5. Turn the two ear pads clockwise until they lock into place.

informationYou can also power the headphones using standard batteries (AAA size, 1.5 V). Note, however, that standard batteries are not rechargeable, and if you are using standard batteries, do not place the headphones on the transmitter's headphone holder.

Charging the rechargeable batteries in the headphones

Danger of damage to the headphones!
If you insert non-rechargeable batteries into the battery compartments, the batteries may leak during charging and can damage your headphones.

  • Do not place the headphones on the headphone holder if you are using non-rechargeable batteries.


A complete charging cycle takes about 8.5 hours. However, before using the headphones for the first time, charge the rechargeable batteries for at least 16 hours without interruption to optimize the performance of the batteries.
When the rechargeable batteries are almost empty, the HDR status LED lights up red and you hear beeps in the headphones. The headphones switch off after a few minutes.

  • Place the headphones on the transmitter's headphone holder. You may place the headphones on either side provided that the charging contacts of the headphones and the transmitter connect. The headphones automatically switch off and the Charge status LED on the transmitter lights up red. When the rechargeable batteries are fully charged, the Charge status LED lights up green.
    Charging the rechargeable batteries in the headphones

informationWhen not in use, place the headphones on the headphone holder to ensure that they are fully charged when needed. The intelligent battery charging technology prevents overcharging. When you remove the headphones from the headphone holder, the Charge status LED on the transmitter indicates the approximate operating time of the headphones.

Adjusting the headband
For good sound quality and best possible wearing comfort, the headband has to be adjusted to properly fit your head. The headphones feature an adjustable headband with a snap-in locking mechanism.
Adjusting the headband

  • Wear the headphones so that the headband runs over the top of your head. Observe the L (left) and R (right) markings on the outer headband when putting the headphones on.
  • Adjust the length of the headband so that
    • your ears are comfortably covered by the ear pads,
    • you feel even, gentle pressure around your ears,
    • a snug fit of the headband on the head is ensured.

Using the RS 195

Switching the wireless headphone system on

Danger of hearing damage due to high volumes!
Listening at high volume levels can lead to permanent hearing defects.

  • Before putting the headphones on and before toggling between your audio inputs, adjust the volume on the headphones to a low level. Toggling between the audio inputs may cause enormous volume jumps that can damage your hearing.
  • Do not expose yourself to high volume levels for extended periods of time.
  1. Switch your audio source on. If the transmitter is connected to the headphone socket of your audio source, adjust the volume of the headphone socket on your audio source (e.g. TV) to at least a medium level.

  2. Slide the AUDIO INPUT SELECTION switch on the transmitter up or down to select your audio source. The transmitter is in standby mode and the TR status LED on the transmitter lights up green.
  3. Remove the headphones from the transmitter's headphone holder (from product version 06/2017).
    Or:
    Press the Power HDR button on the headphones for approx. 2 seconds to switch the headphones on.
    The transmitter recognizes the paired headphones and automatically transmits a signal. The TR status LED on the transmitter and the HDR status LED on the headphones light up green.
    Switching the wireless headphone system on

informationIf the headphones are outside the transmission range or if there is no audio signal received from the transmitter for more than 5 minutes, the headphones switch off automatically.

Selecting an audio input
If both the analog and the digital audio input are connected to an audio source, you can toggle between the two audio inputs.
Selecting an audio input

  • Slide the AUDIO INPUT SELECTION switch up to select the digital (optical) audio input.
  • Slide the AUDIO INPUT SELECTION switch down to select the analog audio input.

Adjusting the volume

  • Press the Volume + button or the Volume – button repeatedly until the volume is adjusted to the desired level. When the minimum or maximum volume is reached, you hear a beep in the headphones.
    Adjusting the volume

informationIf you are using Personal Hearing and the maximum possible volume is not sufficient, you can further increase the volume level.

Muting/unmuting the headphones
Muting/unmuting the headphones

  • Briefly press the Power HDR button to mute the headphones.
  • Press the Power HDR button or one of the Volume +/– buttons to cancel the muting.

informationIf the headphones are muted for more than 15 minutes, they switch off automatically.

Adjusting the balance
The balance (BAL rotary switch) allows for left/right volume adjustment. Adjust the balance so that you hear equally well with both ears.

  • Turn the BAL rotary switch on the transmitter to the right R or to the left L to increase or reduce the volume for your right or left ear.
    Adjusting the balance

To reset the balance setting:

  • Turn the BAL rotary switch to the middle position so that its position marker points vertically upwards.

Personal Hearing – Activating and deactivating
You can use your RS 195 in two different ways:

  • as a hearing-enhancing headphone system (Personal Hearing)
  • as a conventional headphone system (Normal Hearing)

With Personal Hearing activated, you can use the headphone system to enhance your hearing. Different hearing profiles and additional sound optimization options offer you a tailored hearing experience – perfectly matching your personal preferences and hearing ability and allowing you to not only improve speech intelligibility but also to enhance music enjoyment.
Personal Hearing allows you to choose between two levels for the maximum possible volume (from product version 06/2017).
Personal Hearing – Activating and deactivating

To activate and deactivate Personal Hearing:

  • Press the MODE/LEVEL button on the transmitter or the MODE button on the headphones for 2 seconds.
Personal Hearing Display Explanation
activated A general hearing profile A-G for hearing enhancement is selected (see next chapter).
It might also be that one of the LEDs indicating sound optimization for speech or music listening lights up.
deactivated No LED lights up:
Normal Hearing is activated

informationAdditional technical information on the hearing profiles can be found in this manual.

Personal Hearing – Selecting a hearing profile for hearing enhancement

To select the hearing profile that best suits you, proceed as follows:

  1. Switch your audio source on and select a program where speech is foregrounded. This will facilitate the accurate adjustment of the hearing profile.
  2. Use the BAL rotary switch to adjust the balance. This ensures that each subsequently selected hearing profile is perfectly matched to your left/right balance setting.
  3. Press the MODE/LEVEL button on the transmitter for 2 seconds to activate Personal Hearing.
  4. Press the MODE/LEVEL button on the transmitter repeatedly until only the LED lights up.
  5. Use the rotary switch to select a hearing profile A-G and test which of the hearing profiles gives you the best sound quality and helps you to hear best.
  6. If the maximum possible volume is not sufficient, press the MODE/ LEVEL button on the transmitter for 2 seconds until the LED flashes 3x.
    The volume level "High volume" is activated.* Your personal hearing profile is adjusted.

informationWe recommend that you repeat the selection of your personal hearing profile from time to time.
informationA graphic representation of the hearing profiles and additional technical information can be found.
*from product version 06/2017

Personal Hearing – Selecting additional sound optimization options for speech or music listening
Besides the general hearing profiles A-G, you can select additional sound optimization options for speech or music listening.

  • Press the MODE/LEVEL button on the transmitter or the MODE button on the headphones repeatedly until the additional sound optimization option is activated.
Additional sound optimization Display Explanation
none A general hearing profile A-G for hearing enhancement is selected.
for speech reproduction In addition to the selected hearing profile, speech intelligibility is improved as annoying noise is reduced.
for music reproduction The dynamic range of the hearing profile is increased to preserve the sound image in the best possible way.

Personal Hearing – Adjusting the maximum possible volume*
Personal Hearing allows you to choose between two levels for the maximum possible volume: "Standard" and "High volume".
The levels for the maximum possible volume can only be adjusted on the transmitter.

  • Press the MODE/LEVEL button on the transmitter for 2 seconds until the Personal Hearing LEDs indicate the desired function.
Personal Hearing LEDs Setting

LED lights up
Standard volume
The maximum possible volume is optimally adapted to the hearing profiles A-G. Compared to Normal Hearing, however, the volume is reduced in order to protect your hearing.

LED flashes 3x and then lights up
High volume
The maximum possible volume is increased if you are using one of the hearing profiles A-G.
Only use this setting if the standard setting is not sufficient.

No LED lights up
Normal Hearing is activated, the maximum possible volume is not limited.

informationIt might also be that one of the LEDs indicating sound optimization for speech or music listening lights up.
*from product version 06/2017

Pairing one or two pairs of headphones with the transmitter
The headphones and the transmitter of your RS 195 headphone system are factory pre-paired. The following procedure is only necessary if you have cleared all pairing settings from your wireless headphone system and want to re-establish the pairing, or if you want to pair another pair of headphones with the transmitter.
You can simultaneously connect up to 2 paired headphones to your TR 195 transmitter. However, if a second pair of HDR 195 headphones is connected to the transmitter, you cannot make use of the hearing profiles in order to improve the listening situation. The hearing profiles can only be used with one pair of HDR 195 headphones.

  • Place the headphones on the headphone holder of the transmitter for one second.
    The Charge status LED on the transmitter lights up red. The headphones are paired with the transmitter.
    Pairing one or two pairs of headphones with the transmitter

Switching the wireless headphone system off
There are two ways to switch your wireless headphone system off:

  1. Press the Power HDR button on the headphones for approx. 2 seconds.
    The headphones switch off. If no other pair of headphones is connected to the transmitter, the transmitter switches to standby mode. All LEDs go off.
    Switching the wireless headphone system off - Step 1
  2. Place the headphones on the transmitter's headphone holder. The headphones switch off and the charging process starts. If no other pair of headphones is connected to the transmitter, the transmitter switches to standby mode.
    Switching the wireless headphone system off - Step 2

informationTo disconnect the transmitter from the power supply system, unplug the power supply unit from the wall socket.

Cleaning and maintaining the RS 195


Liquids can damage the electronics of the product!
Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

  • Keep all liquids far away from the product.
  • Do not use any solvents or cleansing agents.

To clean the wireless headphone system:

  • Switch your wireless headphone system off and disconnect the transmitter from the wall socket before cleaning.
  • Clean the product only with a soft, dry cloth.

Replacing the ear pads

For reasons of hygiene, you should replace your ear pads from time to time. Spare ear pads are available on the RS 195 product page at www.sennheiser-hearing.com.

  1. Turn the two ear pads counterclockwise until you overcome a slight resistance.
  2. Lift the ear pads off the ear cups and dispose of them properly.
  3. Place the two new ear pads back on the ear cups. Observe the L (left) and R (right) markings on the rear of the ear pads.
  4. Turn the two ear pads clockwise until they lock into place.

informationThe headband padding can be replaced by the repair service. Please contact your Sonova Consumer Hearing partner.

If a problem occurs...

Sound problems

Problem Possible cause Possible solution

No sound

Headphones are switched off. Switch the headphones on.
No power connection. Check the connections of the power supply unit.
Headphones are muted. Deactivate the muting function.
Audio plug is not properly connected. Check the audio plug connection.
Audio source is switched off. Switch the audio source on.
Volume of the analog audio source is either set to the minimum or is on mute. Increase the volume on the audio source to at least a medium level/deactivate the muting function on the audio source.
Audio cable is defective. Replace the audio cable.
Headphones are not correctly paired with the transmitter (e.g. additional headphones). Pair the headphones with the transmitter again.
Wrong audio input is selected. Select the other audio input.
Digital audio connection uses incompatible data transmission settings. Set the audio format of your audio source to "PCM", with a sampling rate of max. 96 kHz (see the instruction manual of the audio source).

Occasional sound dropouts

Headphones are out of the transmitter's range. Reduce the distance between the headphones and the transmitter.
The signal is shielded. Remove obstacles between the transmitter and the headphones.
There are interfering devices (e.g. WiFi routers, Bluetooth devices or microwaves) in the vicinity. Change the position of the transmitter or of the headphones.
Ensure that the transmitter is separated from other wireless devices by at least 50 cm/20".

Sound too low

Headphone volume is adjusted too low. Increase the volume on the headphones.
You are using Personal Hearing and the "Standard" setting for the maximum possible volume is activated. Activate the "High volume" setting in order to be able to increase the maximum possible volume (from product version 06/2017).
The volume of the analog audio source is adjusted too low. Increase the volume of the analog audio source to at least a medium level.
You hear echoes when using the headphones with a TV On some TVs, a delay or latency can be set for the digital audio output signal. Check the audio output settings of your TV and set the latency to "0".

Sound only on one ear

The balance is misadjusted. Adjust the balance.
The audio cable is not properly connected. Check the audio plug connection.
The audio cable is defective. Replace the audio cable.

Sound is distorted

The signal of the audio source is distorted. Reduce the volume of the audio source.
The volume on the headphones is adjusted too high. Reduce the volume on the headphones.
The volume of the analog audio source is adjusted too high. Reduce the volume of the analog audio source to a medium level.
The hearing profile cannot be activated. The Personal Hearing LEDs are flashing More than one pair of headphones is connected to the transmitter. Switch off all other connected headphones. The hearing profiles can only be used with one pair of HDR 195 headphones.

Other problems

Problem Possible cause Possible solution

Transmitter does not switch on

No power connection. Check the connections of the power supply unit.

Headphones do not switch on

The rechargeable batteries are empty. Recharge the rechargeable batteries.
No batteries inside the battery compartments. Insert the rechargeable batteries.
The rechargeable batteries are inserted the wrong way round. Remove the rechargeable batteries from the headphones and reinsert them again.
Observe correct polarity.

The operating time decreases

The rechargeable batteries are exhausted. Replace the rechargeable batteries with new ones.

Hearing profile cannot be activated

A second pair of headphones is connected to the transmitter (when pressing the MODE button, the Personal Hearing LEDs flash 3 times). Switch off all other connected headphones.

You hear beeps in the headphones

The rechargeable batteries are almost empty. Recharge the rechargeable batteries.

Headphones cannot be connected to the transmitter

Distance to the transmitter is too large. Reduce the distance to the transmitter.
Headphones are not paired with the transmitter. Pair the headphones with the transmitter.
One pair of headphones is being charged so that you cannot pair a second pair of headphones. Perform a proximity pairing:
  1. Place the headphones as close as possible to the transmitter.
  2. Switch the headphones on.
  3. Press the Volume +/- buttons simultaneously for about 7 seconds.
Headphones are not compatible. Only use HDR 165, HDR 175, HDR 185, or HDR 195 headphones of the Sennheiser brand.

If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, visit the RS 195 product page at www.sennheiser-hearing.com. There you will find a current list of frequently asked questions (FAQ).
You can also contact your Sonova Consumer Hearing partner for assistance. You can find your local Sonova Consumer Hearing partner at www.sennheiser-hearing.com/service-support.

Leaving the range of the transmitter
The range of the transmitter largely depends on environmental conditions such as wall thickness, wall composition etc. If you, and therefore the headphones, leave the transmission range of the transmitter, the sound drops out occasionally at first before the connection breaks down completely.
If you re-enter the transmission range within 5 minutes, the connection is automatically re-established.
If you spend more than 5 minutes outside the transmission range, the headphones switch off automatically.

Clearing the pairing settings from the headphones

  1. Simultaneously press the Volume +/– buttons for 2 seconds. The HDR status LED flashes red rapidly.
  2. Press the HDR power button while holding the Volume +/– buttons pressed. Release all 3 buttons.
    The HDR status LED lights up green or red, depending on the battery condition, and starts flashing slowly. The pairing settings are cleared from the headphones.

Specifications

System – model: RS 195

Transmission frequency 2,406 to 2,474 MHz
Modulation 8-FSK Digital
Signal-to-noise ratio analog input: typ. 85 dB(A) at 1 V rms
digital input: > 90 dB(A)
RF output power max. 10 dBm, class 1
Range up to 100 m (free line of sight)
Max. number of simultaneously connected headphones 2 (without Personal Hearing activated)
Temperature range operation: 0°C to +40°C storage: -25°C to +70°C
Relative humidity operation: 10 to 80%, non condensing storage: 10 to 90 %

Headphones – model: HDR 195

Type circumaural, closed
Transducer principle dynamic, neodymium magnets
Frequency response 17 Hz to 22 kHz
Max. SPL max. 117 dB at 1 kHz, 3% THD
THD < 0.5% at 1 kHz, 100 dB SPL
Operating time up to 18 hours
Charging time of rechargeable batteries up to 8.5 hours
Power supply 2 low self-discharge NiMH rechargeable batteries, AAA size, 1.2 V, 820 mAh
Magnetic field strength 2.7 mT
Weight (incl. batteries) approx. 340 g
Dimensions (W x H x D) approx. 17 cm x 20 cm x 9.5 cm

Transmitter – model: TR 195

Connections digital input: optical analog input: 3.5 mm jack socket
Power supply 9 V , 300 mA operation: typ. 4 W
Power consumption operation: typ. 4 W standby: ≤ 0.3 W (without charging)
Dimensions (W x H x D) approx. 12.7 cm x 23.4 cm x 10.9 cm

Power supply unit – model: NT9-3AW

Nominal input voltage/ input current 100–240 V~/100 mA
Power frequency 50–60 Hz
Nominal output voltage 9 V
Nominal output current 300 mA
Temperature range operation: 0°C to +40°C
storage: -40°C to +85°C
Relative humidity operation: 0 to 90%, non condensing
storage: 0 to 90 %

Additional technical information

Hearing profiles A-G
Hearing profiles A-G

Technical parameters of the hearing profiles A-G

Display Additional sound optimization Compression 1 Dynamic range 2 Noise suppression 3 Max. SPL Standard/High volume setting 4
as audio source 110 dB
yes strongly reduced 85 dB/100 dB
Speech yes strongly reduced activated 85 dB/100 dB
Music yes slightly reduced 90 dB/105 dB

1 Compression
All hearing profiles feature a compression function which compensates for volume differences by boosting the volume of quiet passages and reducing the volume of loud passages if necessary. Compression seems to put the speech in the foreground, making it easier to understand.
2 Dynamic range
Dynamic range is the ratio between the loudest and the quietest parts of an audio signal. These two values limit the complete dynamic range.
If the dynamic range is reduced, the sound pressure levels of the loudest and the quietest sounds are close to one another. Volume differences between loud and quiet sounds are therefore less audible.
If the dynamic range is increased, volume differences can be heard more clearly. The sound image of music is therefore perceived as especially rich since high and low frequencies are easier to be distinguished at higher volumes.
3 Noise suppression
When speech is mixed with annoying background noise, speech may be difficult to understand.
The speech intelligibility function automatically detects and reduces annoying background noise. The audio signal is permanently analyzed and adjusted accordingly so speech is foregrounded and easier to understand.
4 Max. SPL
measured with white noise
The volume level "High volume" is only available from product version 06/2017.

Important safety instructions

warning

  • Read this instruction manual carefully and completely before using the product.
  • Always include this instruction manual when passing the product on to third parties.
  • Do not use an obviously defective product.
  • Only use the product in environments where wireless 2.4 GHz transmission is permitted.

Preventing damage to health and accidents

  • Protect your hearing from high volume levels. Permanent hearing damage may occur when headphones are used at high volume levels for long periods of time. Headphones of the Sennheiser brand sound exceptionally even good at low and medium volume levels.
  • Note that these headphones allow you to set a higher volume than conventional headphones. This can cause hearing damage in persons with healthy hearing and especially in children.
  • Do not use the product in an environment that requires your special attention (e.g. when performing skilled jobs).
  • The product generates stronger permanent magnetic fields that could cause interference with cardiac pacemakers, implanted defibrillators (ICDs) and other implants.
    Always maintain a distance of at least 3.94"/10 cm between the product component containing the magnet and the cardiac pacemaker, implanted defibrillator, or other implant.
  • Do not use the product near water. Do not expose the product to rain or moisture to reduce the risk of fire or electric shock. - Keep the product, accessories and packaging parts out of reach of children and pets to prevent accidents. Swallowing and choking hazard.
  • Only use the power supply units supplied by Sonova Consumer Hearing.

Preventing damage to the product and malfunctions

  • Always keep the product dry and do not expose it to extreme temperatures to avoid corrosion or deformation. The normal operating temperature is from 0 to 40°C/32 to 104°F.
  • Use the product with care and store it in a clean, dust-free environment.
  • Do not use the product if it is obviously damaged, if it has been dropped, or if liquids or objects have entered the product. In this case, contact a qualified specialist workshop or your Sonova Consumer Hearing partner to have the product checked. - Switch off the product after use to conserve battery power. When not using the product for extended periods of time, remove the rechargeable batteries.
  • Unplug the power supply unit from the wall socket
    • to completely disconnect the product from the power source,
    • during lightning storms or
    • when not using the product for long periods of time.
  • Always ensure that the power supply unit is
    • in a safe operating condition and easily accessible,
    • properly plugged into the wall socket,
    • only operated within the permissible temperature range,
    • not exposed to direct sunlight for longer periods of time in orderto prevent heat accumulation.
  • Do not place your headphones on a glass dummy head, chair armrest or similar objects for long periods as this can widen the headband and reduce the contact pressure of the headphones. - Varnish or furniture polish may degrade the feet of the transmitter, which could stain your furniture. You should therefore place the transmitter on a non-slip pad to avoid potential staining of furniture.
  • Do not operate the product near heat sources.
  • Clean the product only with a soft, dry cloth.
  • Use only attachments/accessories/spare parts supplied or recommended by Sonova Consumer Hearing.

Intended use/Liability
This wireless headphone system is suitable for use with hi-fi systems, TV sets, and home cinema systems and supports both analog and digital signals simultaneously.
This product is intended for private domestic use only. It is not suitable for commercial use. This product is also not intended to be used with portable audio devices.
It is considered improper use when this product is used for any application not named in this instruction manual and the associated product documentation.
Sonova Consumer Hearing GmbH does not accept liability for damage arising from misuse or improper use of the product and its attachments/accessories.
Before putting the product into operation, please observe the respective country-specific regulations.

Safety instructions for rechargeable batteries

If abused or misused, rechargeable batteries may leak. In extreme cases, they may even present a risk of:

  • explosion,
  • heat and fire development
  • smoke and/or gas development
  • damage to health and/or the environment
Keep away from children. Do not heat above 70°C/ 158°F, e.g. do not expose to sunlight or throw into a fire.
Do not expose to moisture. When not using rechargeable batteries for extended periods of time, charge them regularly (about every three months).
Do not mutilate or dismantle. When not using the product for extended periods of time, remove the rechargeable batteries.
Observe correct polarity. Only use rechargeable batteries and chargers recommended by Sonova Consumer Hearing.
Pack/store charged rechargeable batteries so that the terminals cannot contact each other – danger of shorting out/fire hazard. Do not continue using defective rechargeable batteries and dispose of them immediately.
Switch rechargeable battery-powered products off after use. Immediately remove rechargeable batteries from an obviously defective product.
Only charge rechargeable batteries at ambient temperatures between 10°C to 40°C/50°F to 104°F. Dispose of defective products with built-in rechargeable batteries at special collection points or return them to your specialist dealer to facilitate recycling.
Do not charge standard batteries. Do not mix standard and rechargeable batteries in the battery compartments.

www.sennheiser-hearing.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Sennheiser RS 195, RS 195-U, TR 195, HDR 195 Manual

Advertisement

Need help?

Need help?

Do you have a question about the RS 195 and is the answer not in the manual?

Questions and answers

Table of Contents
