Yamaha EP-E50A Manual

Introduction

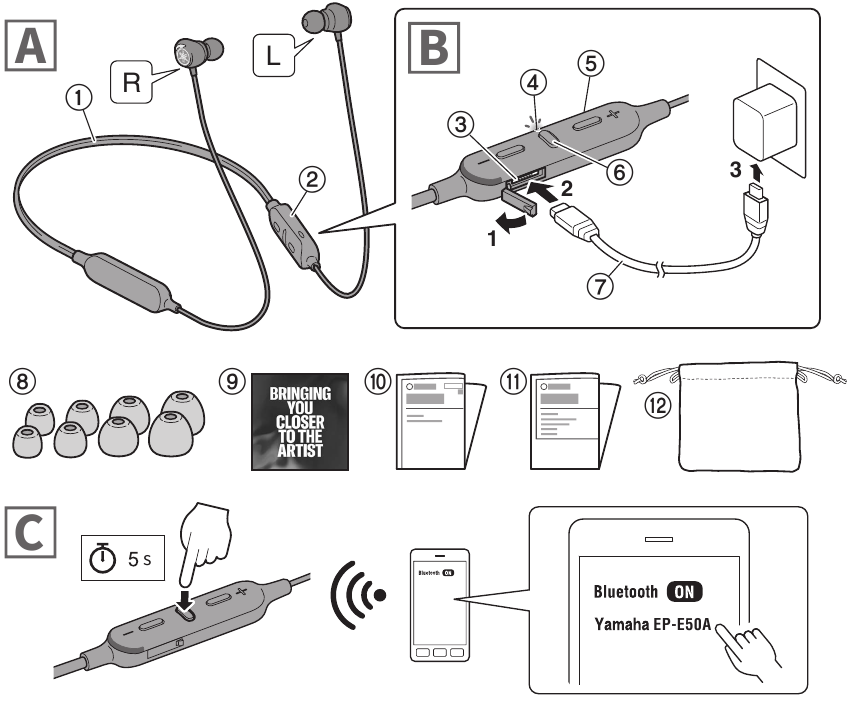

Overview

For correct and safe use of this product, be sure to first read this manual and the separate "Safety Brochure".
After reading this manual, keep it together with the warranty card in a safe place for future reference.

This product is not designed to be waterproof. Do not expose this product to liquids such as sweat, rainwater or seawater.

Product, Accessory and Part Names (A)

Earphones
Controller
* The microphone is built in.
Charging connector
Indicator
ANC key
Function key
USB power cable
Eartips (SS, S, M, L, LL) 1 set each
* The M-size eartips are attached.
Quick Start Guide
User Guide (Basic) (this manual)
Safety Brochure
Carrying case

Preparation

Charging (B)

With the included USB power cable, connect the charging connector on the earphones to the USB port on a commercially available USB power adaptor (5 V DC/min. 0.5 A output).

The indicator is lit in red during charging and goes off when charging is completed.
Charging takes about two hours. When charged, the earphones can play back continuously (with ANC) for approximately nine hours.

Making a Bluetooth® connection (C)

When using the earphones for the first time, the pairing process, which allows Bluetooth devices being connected to detect each other, must be performed. Once paired, the Bluetooth devices will be automatically connected the next time they are turned on.

Pairing

Hold down the function key for at least five seconds to enter pairing standby.
- The indicator flashes alternately in blue and red.
Operate the connected Bluetooth device to display the Bluetooth setting screen.
Select "Yamaha EP-E50A" from the displayed screen.
- When pairing has completed, the indicator lights up in blue for 20 seconds.
- If pairing has not completed within two minutes, it will be considered to have failed, and the indicator goes off.
- To try pairing again, turn the earphones off, then on again.

For details on use, refer to the website.

Turning on/off

Hold down the function key on the controller for two seconds to turn the earphones on/off.

After the earphones turn on, the indicator flashes in red to indicate the remaining battery power.

Basic operations

Listening to music

Play	Briefly press the function key once.
Pause	During playback, briefly press the function key once.
Raise the volume	Briefly press the + key once.
Lower the volume	Briefly press the – key once.
Skip to the next song	Hold down the + key for two seconds.
Go back to the beginning of the song, or skip to the previous song	Hold down the – key for two seconds.
Enable/disable AMBIENT SOUND and noise cancellation	Press the ANC key.

Using the phone

Receive a phone call	When a phone call comes in, briefly press the function key once.
End a phone call	During the phone call, briefly press the function key once.
Raise the conversation volume	Briefly press the + key once.
Lower the conversation volume	Briefly press the – key once.
Ignore a call	When a phone call comes in, briefly press the function key twice.

Specifications

Bluetooth version	Version 5.0
Supported profiles	A2DP, AVRCP, HFP, HSP
Supported codecs	SBC, AAC, Qualcomm® aptX ™ HD
RF Output Power	Class 1
Maximum communication range	Approximately 10 m (without interference)
Number of devices that can be registered	Up to 8 devices
Internal rechargeable battery	Lithium-ion battery
Charging time	Approximately 2 hours
Continuous playback time	Approximately 9 hours (with ANC)
Charging temperature	0 – 40°C

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. Other trademarks and trade names are those of their respective owners.

Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.

[Europe model]
Wireless communication functions
Bluetooth
Radio Frequency (Operational Frequency): 2402 MHz to 2480 MHz
Maximum Output Power (EIRP): 10 dBm
