Integrated Panel Installation

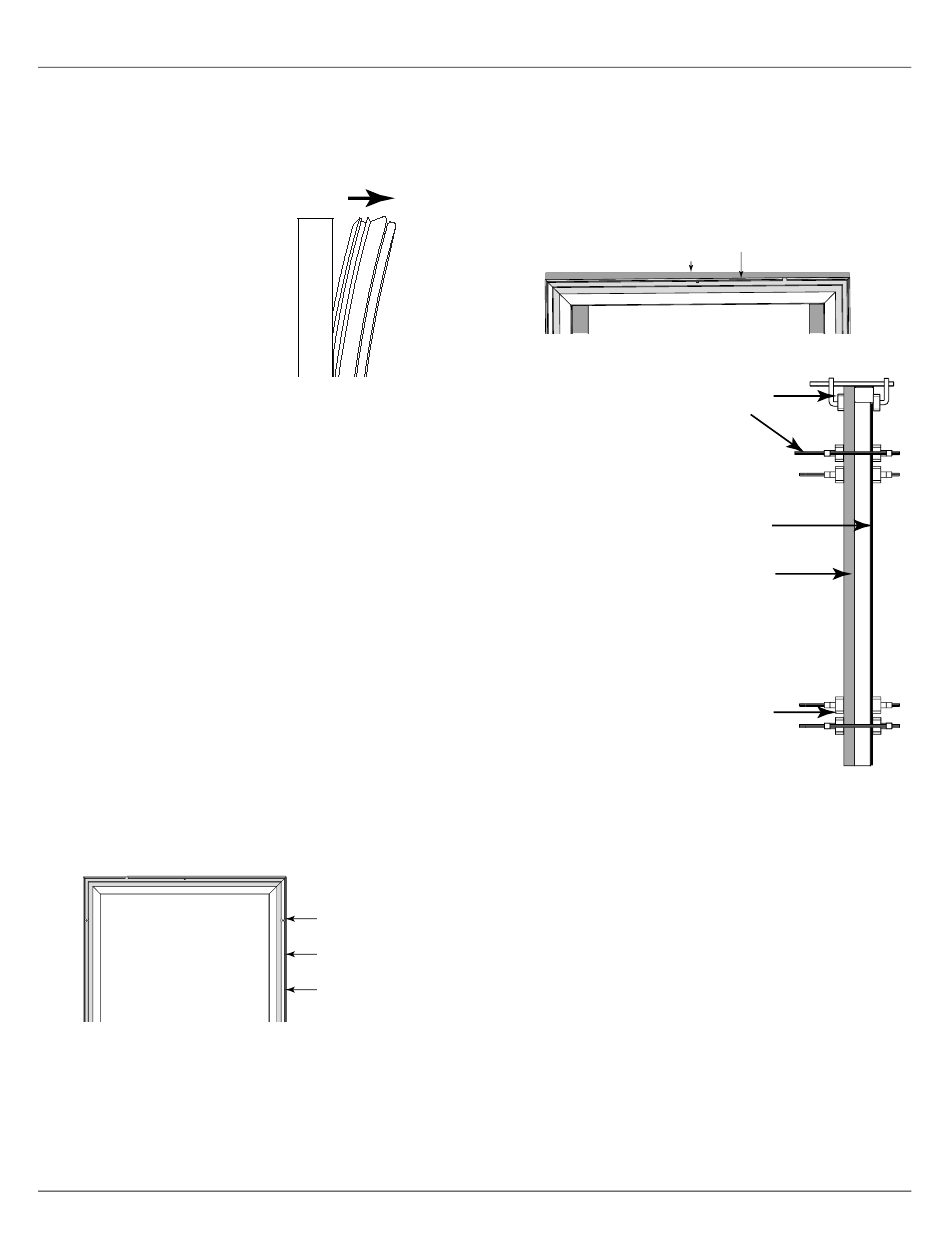

1. Fully open door/drawer.
2. Starting at corner, pull
gasket away from door/
drawer.
3. Continue to pull gasket
free from gasket channel.
4. Upon removal, lay gasket
down on a flat surface.
5. Partially loosen the 3 screws, securing the top hinge to
the cabinet.
6. Align the panel with the outside edge (opposite the
hinge) and high enough to align with the highest point
in the door/drawer.
7. Insert panel underneath top hinge and apply upward
pressure while bringing the lower portion of the panel
flush to the door inside the lower hinge. The panel will
fit snuggly
8. Align door with cabinet. Tighten the top 3 screws,
securing the top hinge to the cabinet.
Align Top Of Panel With Highest Point Of Door/Drawer
Integrated Panel Installation
Amended
( )
Due to differences in floor construction or
surrounding cabinetry, the panel may not sit
flush with the top of the door/drawer.
9. Secure integrated
10.Using a 7/64" (3 mm)
It is important to ensure that all drilled holes are
Align Panel
drilled to the correct depth in order to avoid
Against
Door/Drawe
splits in the wood when hardwood is installed.
Edge First
11.Locate 6 of the #6x 1-1/4" (32 mm) screws provided
NOTICE
Panel
panel to door/drawer
using clamps. A
robust tape may also
be used. U-Line
recommends the use
of bar clamps to
secure the panel to
the door/drawer. If
using tape, be
certain the tape will
not damage panel
finish upon removal.
drill bit, drill 6 pilot
holes into the wood
panel 1/2" (12 mm)
deep using the holes in the door/drawer frame as a
guide.
NOTICE
with your unit.
5
u-line.com
Door
Bar
Clamp
Door/Drawer
Wood
Panel
Bar
Clamp
Integrated Panel Installation 1
