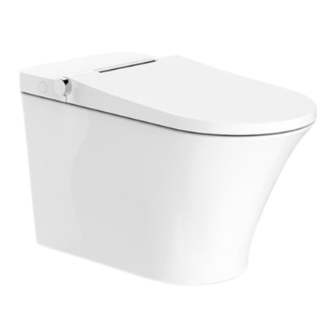

- Page 1 AXENT. O NE C PLUS E314 USER MANUAL...
- Page 3 THANK YOU Thank you for selecting an AXENT Switzerland product. To ensure proper installation, please review these instructions carefully before use. Care- fully unpack and examine the intelligent toilet before installation. For any questions, contact us at 1-800-769-4857. Thank you again for choosing AXENT.
- Page 4 USER MANUAL AXENT.ONE C PLUS Smartphone App Safety Introduction Multi-function Dial Remote Control Maintenance Troubleshooting Technical Data Guarantee...
- Page 5 SMARTPHONE APP CONNECT YOUR AXENT INTELLIGENT TOILET WITH OUR APP The Axent Remote App can be used as an individualized remote control with the Axent One C Plus. 9:41 AM 100% Rear wash Lady wash Stop Night light Drainage System purge...
- Page 6 NORMAL USAGE The intelligent toilet’ s spray arm attachment should only be used for Any other usage will not be deemed as normal usage. AXENT under- the rear wash and front wash cleaning functions. The product may takes no liability for abnormal usage.
- Page 7 SAFETY Keep the cord away from heated surfaces. Do not block the air vents on this product. Do not place the toilet on or by WARNING! objects such as long window curtains that could potentially obstruct the air To reduce the risk of burns, electrocution, fire, or injury to vents during normal usage.
- Page 8 SAFETY GROUNDING INSTRUCTIONS This product must be grounded when plugged in. The power cord on If repair or replacement of the power cord or plug is necessary, do not this product has a grounding plug and must be plugged into an outlet connect the grounding wire to either flat blade terminal.
- Page 9 INTRODUCTION OVERVIEW E314-02 REMOTE CONTROL Activate the remote control by inserting the batteries. For safety purposes, some functions, including the bidet, are only functional when the user is seated on the toilet seat. Seat Close Flush User Rear Wash Front Wash Stop Massage Water Flow...
- Page 10 INTRODUCTION MAIN The intelligent toilet can be easily operated by the multi-functional dial and flush button. Manual Flush Button Multi-functional Dial MANUAL FLUSH Press the Manual Flush Button located behind the multifunction knob to flush the toilet.
- Page 11 MULTI-FUNCTION DIAL QUICK START AXENT. O NE C PLUS offers a Quick Start function. Sit down on the toilet seat and push the dial. Rear Wash starts and will stop after another push on the button. The spray arm is automatically cleaned with water before and after each washing procedure.
- Page 12 MULTI-FUNCTION DIAL REGULAR USE Rear Wash Front Wash Adjusting water volume Adjusting water temperature Adjusting nozzle position Stop...
- Page 13 MULTI-FUNCTION DIAL ADDITIONAL FEATURES Additional settings and service functions may also be accessed with the multifunction dial. Access is done at two levels. LEVEL 1 LEVEL 2 - Mute ON / OFF - Night light ON / AUTO / OFF - Seat heating ON / OFF - Deodorizer ON / OFF - Self-cleaning function ON / OFF...
- Page 14 MULTI-FUNCTION DIAL LEVEL 1 MUTE ON / OFF Factory setting: Mute is OFF When the multifunction dial is already at LEVEL 1 (the ambient light will flash slowly): - Turn the multifunction dial counter clockwise. No «beep»: Mute is ON Short «beep»: Mute is OFF LEVEL 1...
- Page 15 MULTI-FUNCTION DIAL LEVEL 1 SELF-CLEANING FUNCTION ON / OFF As soon as you sit down on the toilet seat, the spray arm will be cleaned with fresh water. This function can be turned ON or OFF. Factory setting: Self-cleaning function is ON When the multifunction dial is already at LEVEL 1 (the ambient light will flash slowly): - Press and hold the multifunction dial.
- Page 16 MULTI-FUNCTION DIAL ACTIVATE FUNCTIONS AT LEVEL 2 When the multifunction dial is already at LEVEL 1, press and hold the dial again until the ambient light flashes quickly. The mode level 2 is activated when the ambient light continues to flash quickly. DEACTIVATE FUNCTIONS AT LEVEL 2 When the multifunction dial is already at LEVEL 2, push the dial.
- Page 17 MULTI-FUNCTION DIAL LEVEL 2 DEODORIZER ON / OFF Factory setting: Deodorizer is ON The deodorizer function is activated when a user is seated. When the multifunction dial is already at LEVEL 2 (the ambient light will flash quickly): - Press and hold the multifunction dial. - Turn it clockwise.
- Page 18 MULTI-FUNCTION DIAL LEVEL 2 SPRAY ARM CLEANING When the multifunction dial is already at LEVEL 2 (the ambient light will flash quickly): - Turn the multifunction dial clockwise. The spray arm will move out. - Clean the spray arm with fabric or a soft bristled brush. - Turn the multifunction dial clockwise again to retract the spray arm.
- Page 19 MULTI-FUNCTION DIAL STAND-BY MODE Press and hold the multifunction dial until the ambient light is off to activate Stand-By mode. In Stand- By mode, all functions of the toilet will deactivate until reactivated. Gently tap the toilet seat lid to deactivate Stand-By mode. PAIRING TO DIAL Cut off the power to the intelligent toilet, wait for 30 seconds, and then reapply power.
- Page 20 REMOTE CONTROL REMOTE CONTROL Seat Close Flush User Rear Wash Front Wash Stop Massage Water Flow Position System Purge Light Descale Mute Setting REMOTE CONTROL ON/OFF/REPLACING BATTERIES Insert batteries. OFF: Remove batteries. Replacing batteries: When power is below 15%, the first and last of Level Indicator will blink on and off, indicating the battery needs to be replaced.
- Page 21 REMOTE CONTROL PAIRING Cut off the power to the intelligent toilet, wait for 30 seconds, and then reapply power. After three times «beep», start pairing by pressing « Stop » repeatedly until hearing three times long «beep» from the intelligent toilet, which means pairing suc- Stops cessful.
- Page 22 REMOTE CONTROL FRONT OF REMOTE CONTROL Rear Wash Front Wash Stop Massage Water Flow Position REAR WASH Press « Rear Wash » after you are seated to start. Rear Wash Press « Stop », to stop the Rear Wash early. If not stopped manually, the Rear Wash will stop automatically after 3 minutes.
- Page 23 REMOTE CONTROL WATER VOLUME Press « Water Volume » during Rear or Front Wash to adjust the water volume. Water Volume The Level Indicator indicates the selected level. Press « Minus » to reduce the water volume. Minus Press « Plus » to increase the water volume. Plus SPRAY ARM POSITION Press «...
- Page 24 REMOTE CONTROL FRONT OF REMOTE CONTROL Rear Wash Front Wash Stop Massage Water Flow Position TEMPERATURE ADJUSTMENT To adjust the seat, water, or air dryer temperature, press « Temp » repeatedly until the respective icon lights up. Temp Seat Temp Water Temp Air Temp Press «...
- Page 25 REMOTE CONTROL TOP OF REMOTE CONTROL Seat Close Flush User BACK OF REMOTE CONTROL System Purge Light Descale Mute Setting NIGHT LIGHT SETTING Factory setting: AUTO mode – The night light turn ON or OFF automatically according to ambient light levels. Light Press «...
- Page 26 REMOTE CONTROL TOP OF REMOTE CONTROL Seat Close Flush User BACK OF REMOTE CONTROL System Purge Light Descale Mute Setting AUTO OPEN SETTING Factory setting: Auto Open will only open the lid. Setting Press « Setting » at the same time « Lid » to activate Auto Open Setting. Press «...
- Page 27 REMOTE CONTROL AUTO CLOSE SETTING Factory setting: Auto Close function is ON. Setting Press « Setting » at the same time « Close » to activate Auto Close. Press « Close » repeatedly to enable or disable Auto. Close The Level Indicator indicates the selected level: - OFF One indicator on.
- Page 28 REMOTE CONTROL BACK OF REMOTE CONTROL System Purge Light Descale Mute Setting SELF CLEANING SETTING Factory setting: Self Cleaning function is ON. Setting Press « Setting » at the same time « Eco » to turn the function on or off. When the Self Cleaning function is turned on, as soon as you sit down on the toilet seat, the spray arm will be cleaned with fresh wa- ter.
- Page 29 REMOTE CONTROL SPRAY ARM CLEANING Press « Descale » to extend the spray arm for cleaning. Descale The spray arm will move out. - Clean the spray arm with a fabric or a soft bristle brush. - Press « Descale » again to retract the spray arm. If no other functions are used, the spray arm will automatically retract after 3 minutes.
- Page 30 - Press the Manual Flush button. FAILURE TO DRAIN SYSTEM MAY RESULT IN DAMAGE TO SYSTEM AND LEAKAGE OR FLOODING. RELATED DAMAGE AND INCIDEN- TALS WILL NOT BE COVERED UNDER WARRANTY OR IN ANY OTHER MANNER BY AXENT. FILTER CLEANING The filter screen will need to be cleaned frequently.
- Page 31 AXENT Easy Clean coating. By following these maintenance guidelines, AXENT Easy Clean should remain effective for many years. AXENT highly recommends the use of acidic cleaners with a pH value between 1 and 4. Cleaners with a pH value in the neutral range (5 to 8) are not always suitable. We strongly advise against using either weak or strong alkaline cleaners, i.e.
- Page 32 MAINTENANCE UNINSTALLING AND INSTALLING THE LID AND SEAT INSTALLING THE LID AND SEAT CLEANING HINGES The hinges and contact areas on the toilet seat and cover must be cleaned regularly. This ensures the proper function of the shower toilet. - Clean up the contact areas on the cover with moistened cloth. Hinges - Clean up the hinges bolts on toilet seat with a damp cloth.
- Page 33 ELECTRICAL SHOCK! FATAL DANGER! Never open the unit in order to repair it yourself. Never modify the device or add any additional modules. The AXENT intelligent toilet carries live power when plugged in and opening it exposes those present to fatal danger! Warranty and liability claims as a result of wrong handling are specifically excluded.
- Page 34 TROUBLESHOOTING Malfunction Cause Solution Page Dryer does not work Seat does not sense person Reconfirm position on seat. Low air temperature Air temperature set too low Increase air temperature. Massage does not work Can only be activated Restart massage during Front or Rear wash. during the wash cycle Low seat temperature Seat temperature set too...
- Page 35 TROUBLESHOOTING Malfunction Cause Solution Page Night light does not work Night light in OFF mode Switch night light setting to ON or AUTO mode. Night light always on Night light in ON mode Switch night light setting to AUTO or OFF mode. Spray arm retracts auto- Wand will automatically Please restart the Descale process.
- Page 36 TROUBLESHOOTING REPLACEMENT PARTS LIST Individual instructions will be included with applicable replacement parts. X10000000834 X10000000882 X10000001509 X10000000975 Seat and Lid Filter flange support Bowl Mounting Hardware / Plug X10000000963 X10000000881 X10000001441 Remote Control Inlet Hose-set-2 Base Flange (Left: 15/16”-14UNS Right: 1/2”-14NPSM) X10000001461 X10000001437 X10000001442...
- Page 37 Any commitment by AXENT results from the respective warranty. These include the complete and authoritative warranty obligation AXENT. The statements in this manual do not constitute an extension or a restriction of the claims under the warranty provisions.
- Page 38 2. AXENT’ s sole and maximum liability for breach of its warranties herein is limited to the obligation, at AXENT’ s sole discretion to repair, replace, or make appro- priate adjustments to bring the product back to normal operating function.
- Page 40 Place serial number sticker here for reference: AXENT Corporation Ltd. www.axentbath.us support@axentproducts.com 1-800-769-4857...
