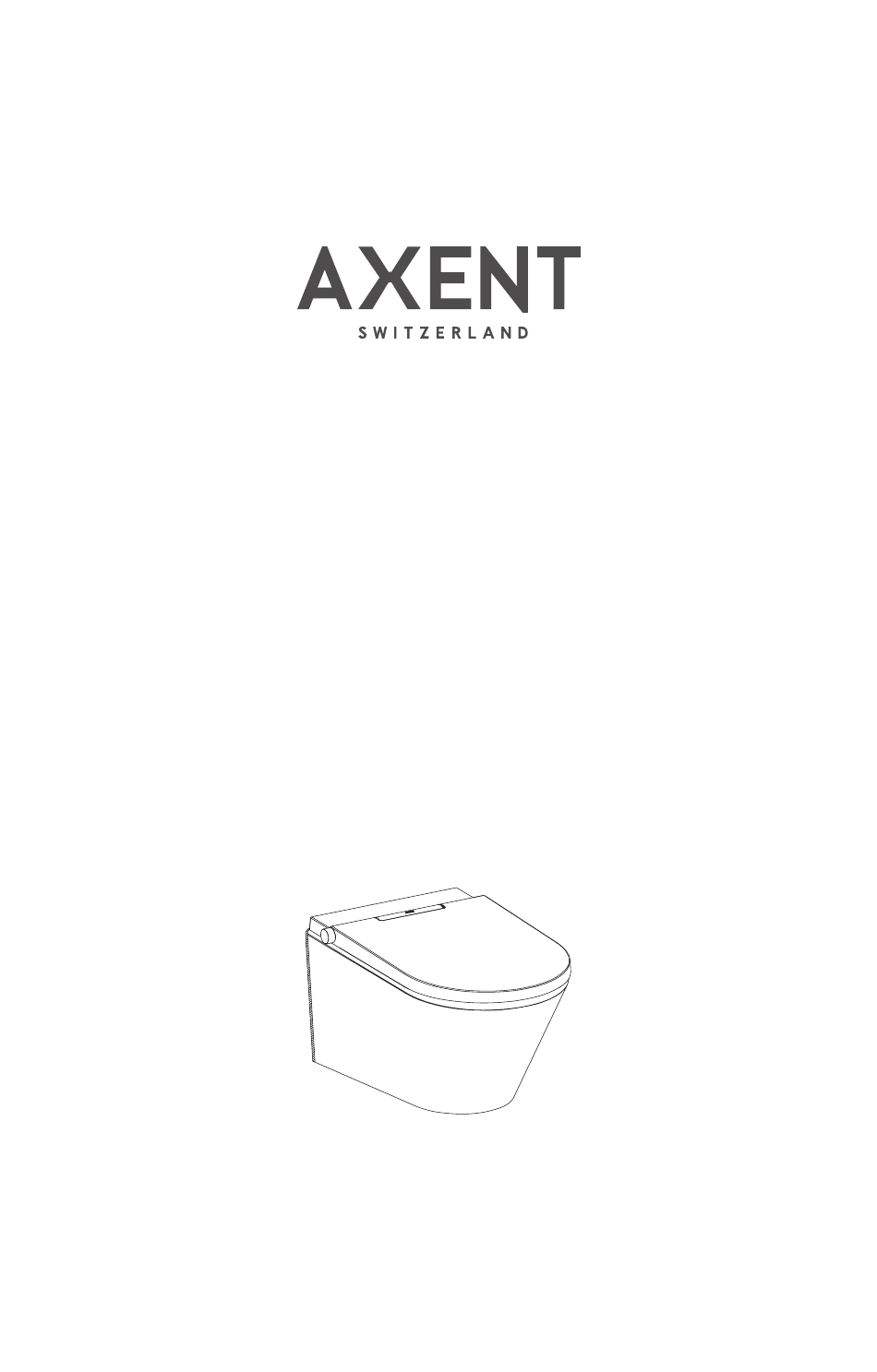

AXENT. O NE PLUS
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXENT.ONE PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axent AXENT.ONE PLUS

Summary of Contents for Axent AXENT.ONE PLUS

  • Page 1 AXENT. O NE PLUS USER MANUAL...
  • Page 3 THANK YOU Thank you for selecting an AXENT Switzerland product. To ensure proper installation, please review these instructions carefully before use. Carefully unpack and examine the intelligent toilet before installation. For any questions, contact us at 1-800-769-4857. Thank you again for choosing AXENT.

  • Page 4: Table Of Contents

    USER MANUAL AXENT.ONE PLUS Smartphone App Safety Introduction Operation With Main Operation With Remote Control Maintenance Troubleshooting Dimension Technical data Guarantee...

  • Page 5: Smartphone App

    SMARTPHONE APP CONNECT YOUR AXENT INTELLIGENT TOILET WITH OUR APP The AXENT Remote App can be used as an individualized remote control with the AXENT. ONE PLUS. 9:41 AM 100% Rear wash Lady wash Stop Night light Drainage System purge...

  • Page 6: Safety

    Any other usage will not be deemed as normal usage. AXENT undertakes no liability for abnormal usage. AXENT is not liable or responsible for damage to other electronics connected to the same power line while the intelligent toilet is in use.
  • Page 7 SAFETY WARNING! To reduce the risk of burns, electrocution, fire, or injury to persons. ■ ■ Children or disabled persons may require supervision during use. Use this product only for its intended use as described in this manual. ■ ■ Do not use attachments not authorized by the manufacturer.
  • Page 8 SAFETY ■ ■ Do not climb on or stand on the product. Do not place any heavy objects on the lid. ■ ■ ■ ■ Do not open or close the lid or seat with force. Do not deliberately soil, spray or block the spray arm. ■...
  • Page 9 SAFETY GROUNDING INSTRUCTIONS This product must be grounded when plugged in. The power cord on this product has a grounding plug and must be plugged into an outlet with a properly grounded grounding plug. DANGER! Improper use of grounding plug can result in a risk of electric shock. For safety, the intelligent toilet should be plugged into a standard 3 prong GFCI outlet.
  • Page 10 SAFETY FCC INSTRUCTIONS Please note that changes or modifications not expressly approved by the party responsible for com- pliance could void the user’ s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 11: Introduction

    INTRODUCTION OVERVIEW [320-E2] MAIN Rear cover Nozzle Multifunction Dial Indicator Seat Multifunction Dial...
  • Page 12 INTRODUCTION REMOTE CONTROL INTERFACE User Rear Wash Front Wash Stop Massage Water Flow Position System Purge Light Descale Mute Setting When receiving remote control Command received and executed, the intelligent toilet will make the following sounds: One short «beep» Command received and executed Two short «beep»...

  • Page 13: Operation With Main

    OPERATION WITH MAIN OPERATION DIAGRAM QUICK START REGULAR USE .ONE .ONE .ONE .ONE...
  • Page 14 OPERATION WITH MAIN REAR WASH After you are seated: QUICK START Press the Multifunction dial to start. REGULAR Turn the Multifunction dial counter clockwise to start. Press to stop the Rear Wash immediately. the Multifunction dial If not stopped manually, the Rear Wash will stop automatically after 3 minutes.
  • Page 15 OPERATION WITH MAIN WATER VOLUME During Rear or Front Wash: Turn the Multifunction dial clockwise to increase the water volume. Turn the Multifunction dial counter clockwise to reduce the water vol- ume. SPRAY ARM POSITION During Rear or Front Wash: Press and hold the Multifunction dial.
  • Page 16 OPERATION WITH MAIN TEMPERATURE ADJUSTMENT During Rear Wash, Front Wash, or Dry: Pull the Multifunction dial. Turn it clockwise to increase the temperature. Pull the Multifunction dial. Turn it counter clockwise to reduce the temperature. When Auto Dry setting is on, you can start the Dryer function through the Multifunction dial. Please find more about Auto Dry Setting on page 17 for the Multifunction dial or page 21 for remote control.
  • Page 17 OPERATION WITH MAIN LEVEL 1 > MUTE SETTING Factory setting: LEVEL 1 is activated, Turn the Multifunction dial counter clockwise. ■ - One time short «beep» ■ - Two times short «beep» When the Mute setting is on, the system will not play back any sounds. LEVEL 1 >...
  • Page 18 OPERATION WITH MAIN LEVEL 2 When the Multifunction dial is already in LEVEL 1: Press and hold the Multifunction dial until the ambient light flashes quickly to activate LEVEL 2. To deactivate LEVEL 2, press the multifunction dial while LEVEL 2 is active.
  • Page 19 OPERATION WITH MAIN LEVEL 2 > AUTO DRY SETTING Factory setting: LEVEL 2 is activated, Press and hold the Multifunction dial. Turn it counter clockwise. ■ - One time short «beep» ■ - Two times short «beep» When the Auto Dry setting is ON, the Dry function will be started after pressing the Multifunction dial to stop Rear or Front wash.

  • Page 20: Operation With Remote Control

    OPERATION WITH REMOTE CONTROL OPERATION WITH REMOTE CONTROL Rear Wash Front Wash Stop Massage Water Flow Position REAR WASH After you are seated: Press « Rear Wash » to start. Rear Wash Press « Stop » to stop the Rear Wash immediately. If not stopped manually, the Rear Wash will stop automatically after 3 minutes.
  • Page 21 OPERATION WITH REMOTE CONTROL OSCILLATING AND PULSATING SHOWER During Rear or Front wash: Press « Massage » to switch between Oscillating, Pulsating, Oscillating and Pulsat- ing, and OFF. Massage SPRAY ARM POSITION During Rear or Front wash: Press « Position » to adjust the position of the spray arm. Position ■...
  • Page 22 OPERATION WITH REMOTE CONTROL User System Purge Light Descale Mute Setting NIGHT LIGHT SETTING Factory setting: AUTO Press « Light » to enter into the setting. The « Light » indicator indicates the selected level. Light Press « Light » to switch between ON, AUTO and OFF. ■...
  • Page 23 OPERATION WITH REMOTE CONTROL DEODORIZE SETTING Factory setting: Press « Setting » at the same time « Mute » to enter into the setting. The « Mute » indicator indicates the selected level. Setting Mute Press « Mute » to turn the function on or off. ■...

  • Page 24: Maintenance

    MAINTENANCE SPRAY ARM CLEANING When the unit is not in use, OPERATION WITH MULTIFUNCTION DIAL LEVEL 2 is activated (see page 16 for operation): Turn the Multifunction dial clockwise to extend the spray arm for clean- ing. Clean the spray arm with a fabric or a soft bristle brush. Turn the Multifunction dial clockwise again to retract the spray arm.
  • Page 25 MAINTENANCE SYSTEM PURGE OPERATION WITH MULTIFUNCTION DIAL LEVEL 1 is activated (see page 14 for operation): Turn the Multifunction dial clockwise to start System Purge with one «beep». ■ - The system purge process stops automatically after completion. Turn the Multifunction dial clockwise again to stop system purge imme- diately.
  • Page 26 All functions will automatically stop upon completion. Total time of operation will be between 2 and 3 minutes. Axent recommends using coffee machine descaler such as Durgol for interal descaling and cleansing. To stop the process before completion, turn the multifunction dial clock- wise.
  • Page 27 MAINTENANCE DRAINING RESIDUAL WATER FROM THE SYSTEM OPERATION WITH MULTIFUNCTION DIAL LEVEL 1 is activated (see page 14 for operation): Pull and turn the Multifunction dial counter clockwise to drain residual water in the system. ■ - The function will stop automatically after completion. Turn the Multifunction dial counter clockwise again to stop the process immediately.
  • Page 28 MAINTENANCE DURING VACATION If this product will not be in use for an extended period of time, please perform the following in this order. ■ - Disconnect the electrical power. ■ - Shut off the water inlet valve. WINTERIZATION Please ensure water temperatures will not drop below 4 °C (39 °F). Frost or frozen water will damage the system and may lead to leakage.
  • Page 29 MAINTENANCE UNINSTALLING AND INSTALLING THE LID AND SEAT Lift up the toilet seat and toilet lid. Remove the toilet seat and toilet lid by vertically lifting them out of the bracket. INSTALLING THE LID AND SEAT Insert the toilet seat and toilet lid vertically from above in to the bracket in the same way as removed.

  • Page 30: Troubleshooting

    Warranty and liability claims as a result of wrong handling are specifically excluded. RESTART Perform a reset, if needed. Unplug the AXENT intelligent toilet, wait for 30 seconds, then reconnect to power. FREQUENTLY ASKED QUESTIONS In case of minor malfunctions, please refer to the following table.
  • Page 31 TROUBLESHOOTING MALFUNCTION CAUSE SOLUTION Please check the model to make sure if your device have Unsupported device the function. Dryer does not work Seat does not sense person Reconfirm position on seat. Low air temperature Air temperature set too low Increase air temperature.

  • Page 32: Dimension

    TROUBLESHOOTING MALFUNCTION CAUSE SOLUTION SELF-CLEANING Spray arm retracts Wand will automatically a u t o m a t i c a l l y retract after 3 minutes of Restart Self-cleaning again. during Descale pro- inactivity cess Water spraying out There is a conductor on the during Spray arm seat, such as water, wet pa-...

  • Page 33: Technical Data

    Any commitment by AXENT results from the respective warranty. These include the complete and authoritative warranty obligation AXENT. The statements in this manual do not constitute an extension or a restriction of the claims under the warranty provisions.

  • Page 34: Guarantee

    AXENT, it determines that the products are entitled to warranty, then AXENT shall be responsible for shipping charge to and from AXENT ’ s facility). ■ - The defective products are received by AXENT for adjustment no later than fifteen (15) days following the last day of the war- ranty period; and ■ - AXENT’...
  • Page 36 Place serial number sticker here for reference: AXENT Corporation Ltd. www.axentbath.us support@axentproducts.com 1-800-769-4857...
